Sony STR-DB798 Service Manual

71
STR-DB798

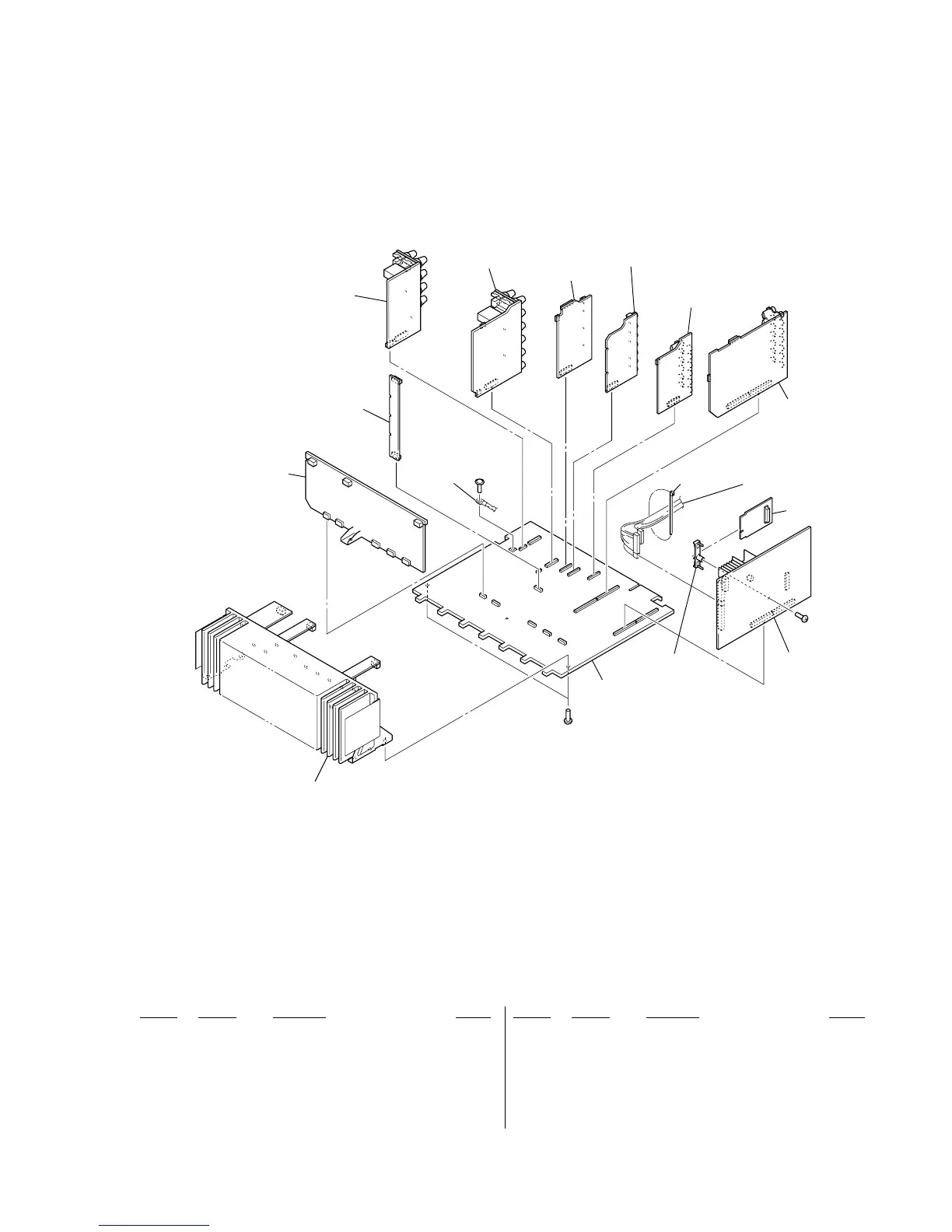

7-3. MAIN BOARD SECTION
Ref. No. Part No. Description Remark
Ref. No. Part No. Description Remark
101 A-1112-123-A A CLASS BOARD, COMPLETE
102 A-1112-100-A S-VIDEO BOARD, COMPLETE
103 A-1112-087-A AU-IN BOARD, COMPLETE
104 3-655-653-21 BAND (TAITON), BINDING
105 A-1093-300-A A/V SYNC A BOARD, COMPLETE
106 A-1112-103-A DIGITAL BOARD, COMPLETE (AEP, UK)
106 A-1112-143-A DIGITAL BOARD, COMPLETE (TW)
107 A-1112-051-A MAIN BOARD, COMPLETE (AEP, UK)
107 A-1112-137-A MAIN BOARD, COMPLETE (TW)
#1 7-685-646-79 SCREW +BVTP 3X8 TYPE2 IT-3
#4 7-682-948-01 SCREW +PSW 3X8
101
102
103
104
105
106
107
#1
#1
#4
not
supplied
not
supplied
not
supplied
not supplied
(STAY-5 board)
heat sink section
not supplied
(SPK-B board)
not supplied
(SPK-A board)
not supplied
(VIDEO board)
not supplied
(VIDEO-AU board)

Sony STR-DB798 Specifications

General

Impedance	8 Ω
Supported radio bands	FM
Radio Data System (RDS)	Yes
Channels quantity	7 channels
I/O ports	Output(Component x 1, Optical Digital x 1, Composite x 1, S-Video x 1), Input(Component x 2, Optical Digital x 4, S-Video x 4, Coaxial Digital x 2, Composite x 4)
