Sony STR-DB798 Service Manual

70
STR-DB798

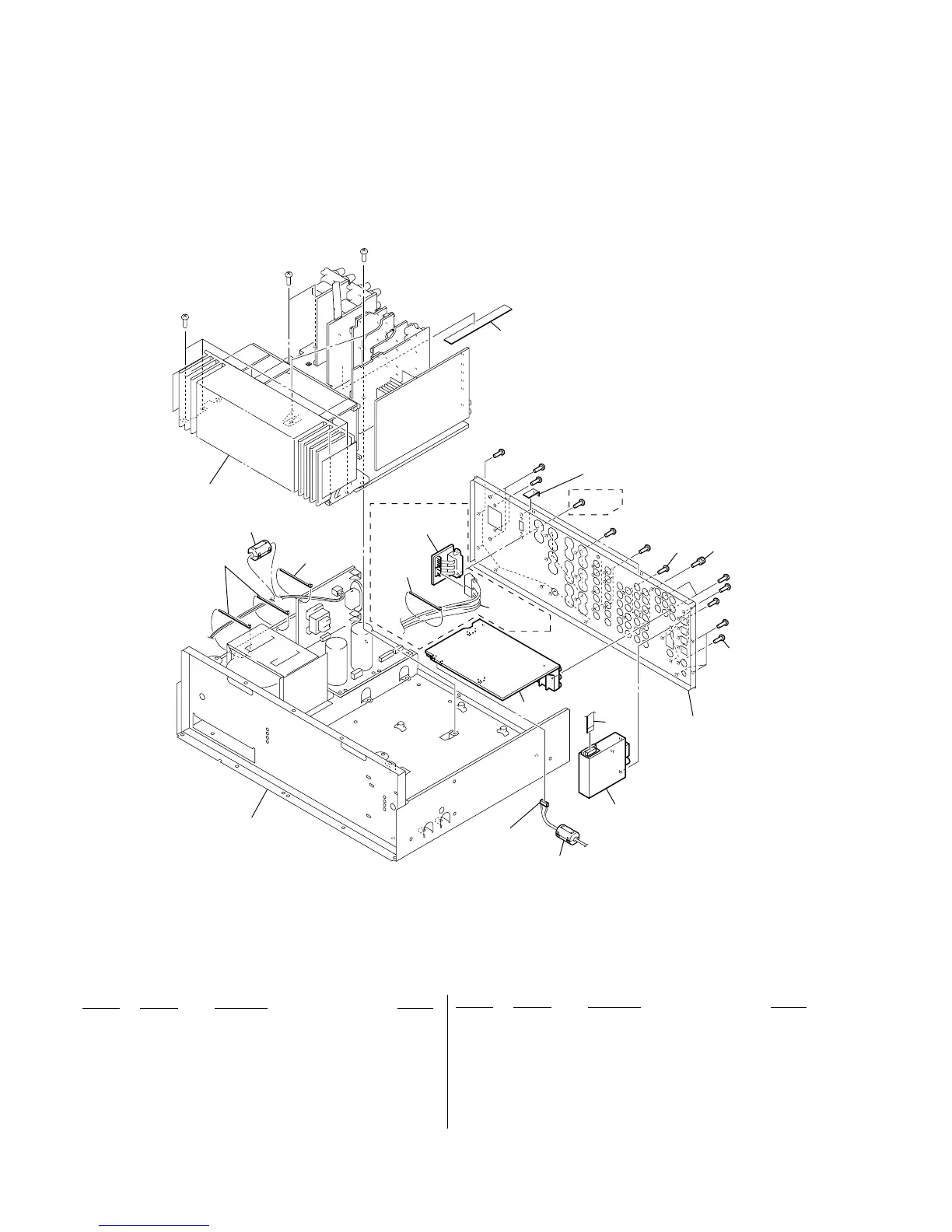

7-2. BACK PANEL SECTION
Ref. No. Part No. Description Remark
Ref. No. Part No. Description Remark
51 3-655-653-21 BAND (TAITON), BINDING
52 3-378-109-12 CUSHION, SARANET
53 1-773-002-11 WIRE (FLAT TYPE) (15 CORE)
54 A-1112-097-A COMP-V BOARD, COMPLETE (AEP, UK)
54 A-1112-139-A COMP-V BOARD, COMPLETE (TW)
55 4-974-510-11 SCREW (+BV 3X8 CU)
56 4-947-010-01 SCREW, FEEDER FIXED
57 1-693-676-11 TUNER (AEP, UK)
57 1-693-678-11 TUNER (TW)
58 1-469-089-11 CLAMP FILTER (FERRITE CORE)
* 59 1-400-052-11 CLAMP FILTER (FERRITE CORE)
#1 7-685-646-79 SCREW +BVTP 3X8 TYPE2 IT-3
#2 7-685-659-79 SCREW +BVTP 4X8 TYPE2 IT-3
#3 7-685-647-79 SCREW +BVTP 3X10 TYPE2 IT-3
51
59
51
51
52
53
57
58
54
55
55
56
#1
#1
#1
#1
#1
#1
#1
#1
#1
#1
#1
#2
not
supplied
#3
MAIN board section
not supplied
not
supplied
not
supplied
not supplied
(4-8 OHM board)
chassis section
(AEP, TW)
(AEP, TW)

Sony STR-DB798 Specifications

General

Impedance	8 Ω
Supported radio bands	FM
Radio Data System (RDS)	Yes
Channels quantity	7 channels
I/O ports	Output(Component x 1, Optical Digital x 1, Composite x 1, S-Video x 1), Input(Component x 2, Optical Digital x 4, S-Video x 4, Coaxial Digital x 2, Composite x 4)
