Sony STR-DB798 Service Manual

5
STR-DB798

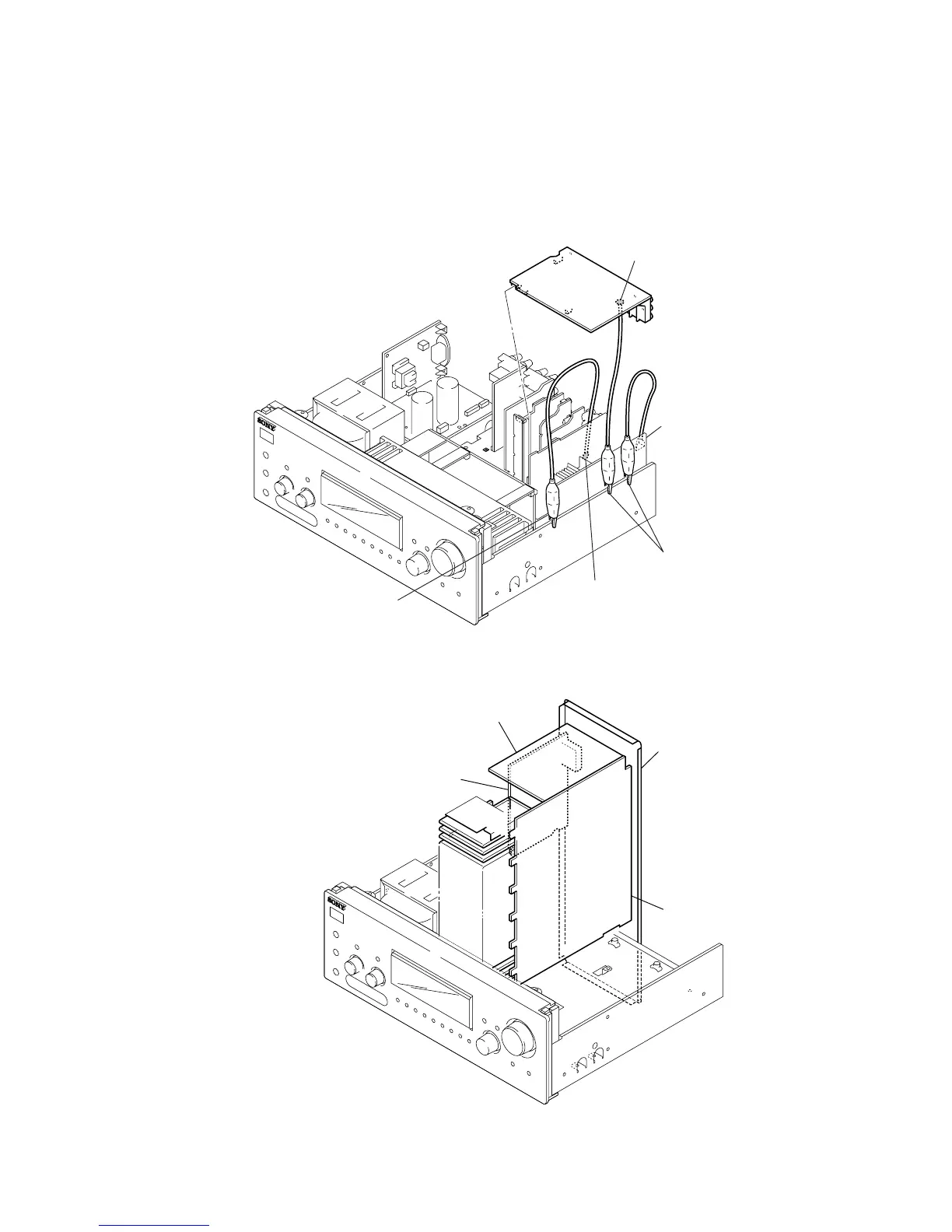

SERVICE POSITION
clip
clip
AU-IN board (JW101)
DIGITAL board (EB1101
)
COMP-V board (JW300)
When checking without back panel, it is necessary to connect the clip for GND to a chassis.
-MAIN BOARD SERVICE POSITION-
MAIN boar
d
rear panel
COMP-V board
DIGITAL board

Sony STR-DB798 Specifications

General

Impedance	8 Ω
Supported radio bands	FM
Radio Data System (RDS)	Yes
Channels quantity	7 channels
I/O ports	Output(Component x 1, Optical Digital x 1, Composite x 1, S-Video x 1), Input(Component x 2, Optical Digital x 4, S-Video x 4, Coaxial Digital x 2, Composite x 4)
