Sony STR-DE497P - SECTION 2 DISASSEMBLY; Case Disassembly

10
STR-DE497P/K4800P/K5800P

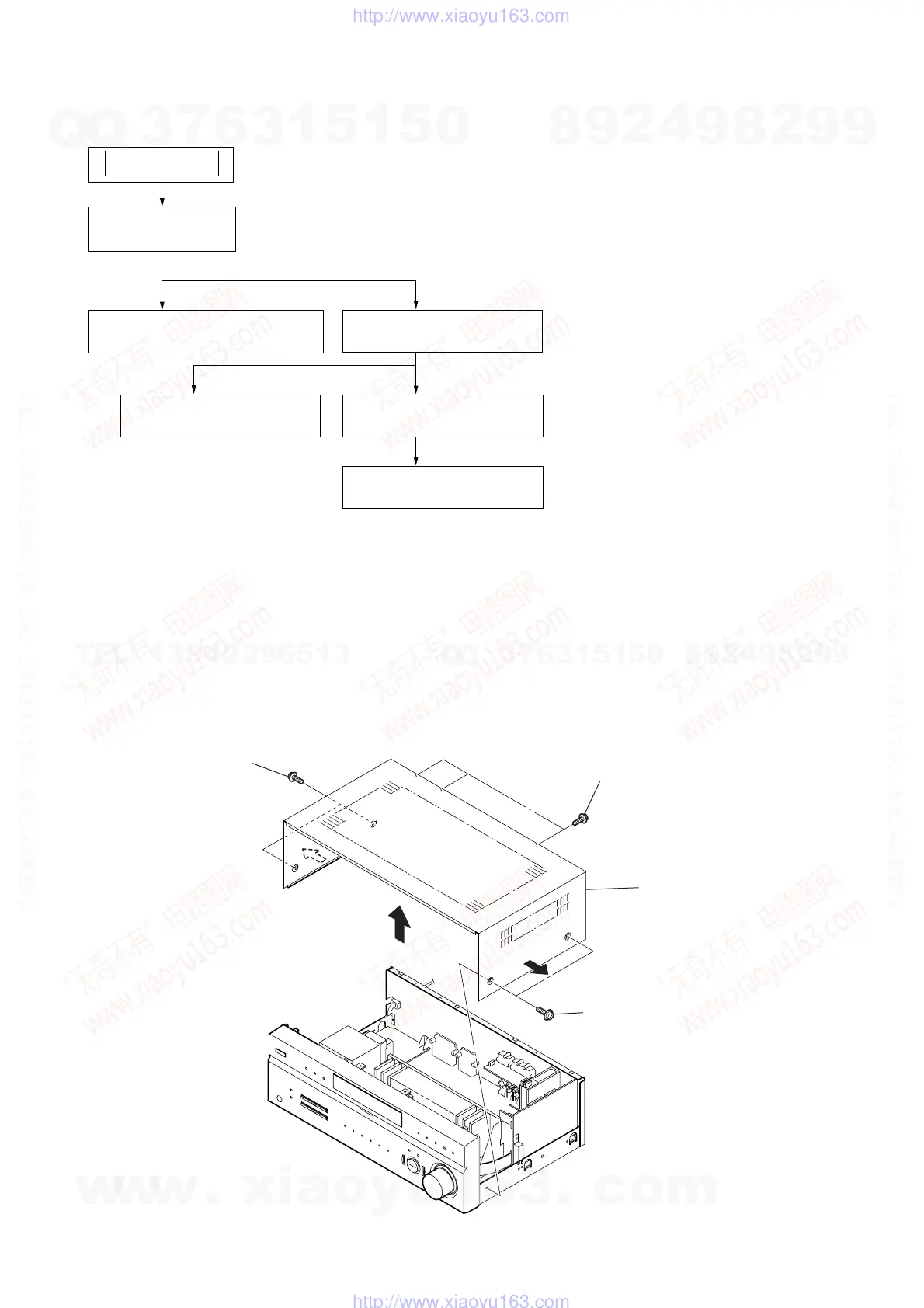

Note : This set can be disassemble according to the following sequence.
SECTION 2
DISASSEMBLY
2-1. CASE
2-1. CASE
(Page 10)
2-2. FRONT PANEL SECTION
(Page 11)
2-3. BACK PANEL
(Page 11)
SET
2-5. STANDBY BOARD
(Page 12)
2-4. DIGITAL BOARD
(Page 12)
2-6. MAIN BOARD
(Page 13)
Note : Follow the disassembly procedure in the numerical order given.
1 two screws
(tapping)
2 three screws
(tapping)
3 two screws
(tapping)
4 case
