40
STR-DE497P/K4800P/K5800P
Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark
151 X-4953-448-1 FOOT ASSY
152 4-232-237-01 FOOT (DIA.30)
153 4-977-358-01 CUSHION
154 4-249-675-01 +BV SUMITITE S 4X6 ROUND
155 A-4750-409-A STANDBY BOARD, COMPLETE (DE497P)
155 A-4750-608-A STANDBY BOARD, COMPLETE
(K4800P/K5800P)
156 A-4750-435-A MAIN BOARD, COMPLETE (K4800P)
156 A-4750-441-A MAIN BOARD, COMPLETE (DE497P)
156 A-4752-285-A MAIN BOARD, COMPLETE (K5800P)
157 3-905-609-01 SCREW (TRANSISTOR)
158 3-970-608-01 SUMITITE (B3), +BV
0F901 1-532-503-51 FUSE (T1.6AL/250V) (AEP,UK)
0F901 1-533-452-12 FUSE, GLASS TUBE (DIA.5) (4A/125V)
(US,CND)
Q503 8-749-010-25 TRANSISTOR MN2488-OPY-M
Q504 8-749-010-26 TRANSISTOR MP1620-OPY-M
Q603 8-749-010-25 TRANSISTOR MN2488-OPY-M
Q604 8-749-010-26 TRANSISTOR MP1620-OPY-M
Q653 8-749-010-25 TRANSISTOR MN2488-OPY-M
Q654 8-749-010-26 TRANSISTOR MP1620-OPY-M
Q703 8-749-010-25 TRANSISTOR MN2488-OPY-M
Q704 8-749-010-26 TRANSISTOR MP1620-OPY-M
Q753 8-749-010-25 TRANSISTOR MN2488-OPY-M
Q754 8-749-010-26 TRANSISTOR MP1620-OPY-M
0 T901 1-443-185-11 TRANSFORMER, POWER (K4800P:US,CND)
0 T901 1-443-211-11 TRANSFORMER, POWER (AEP,UK)
0 T901 1-443-248-11 TRANSFORMER, POWER (K5800P:US)
#1 7-685-646-79 SCREW +BVTP 3X8 TYPE2 IT-3
#2 7-685-645-79 SCREW +BVTP 3X6 TYPE2 N-S
151
151
152
153
152
153
154
154
155
156
158
158
158
158
157
not supplied
not supplied
not supplied
T901
#1
#1
#2
#1
Q503
Q504
Q703
Q704
Q653
Q654
Q753
Q754
Q603
Q604
#1
F901

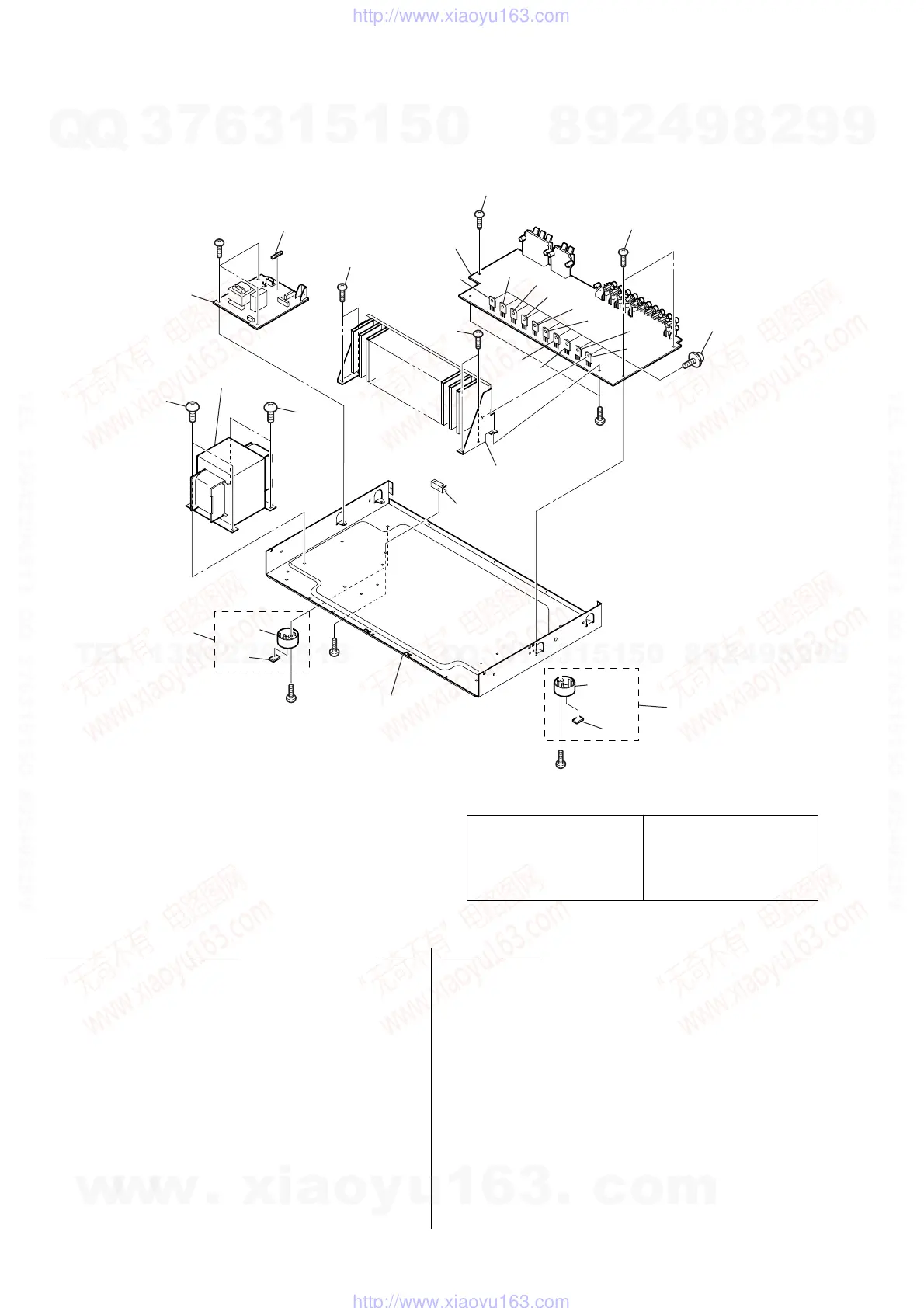

5-4. CHASSIS SECTION-2
The components identified by
mark 0 or dotted line with mark
0 are critical for safety.
Replace only with part number
specified.
Les composants identifiés par une
marque 0 sont critiques pour
la sécurité.
Ne les remplacer que par une piéce
portant le numéro spécifié.
