Sony STR-DE497P - Front Panel Section Disassembly; Back Panel Disassembly

11
STR-DE497P/K4800P/K5800P

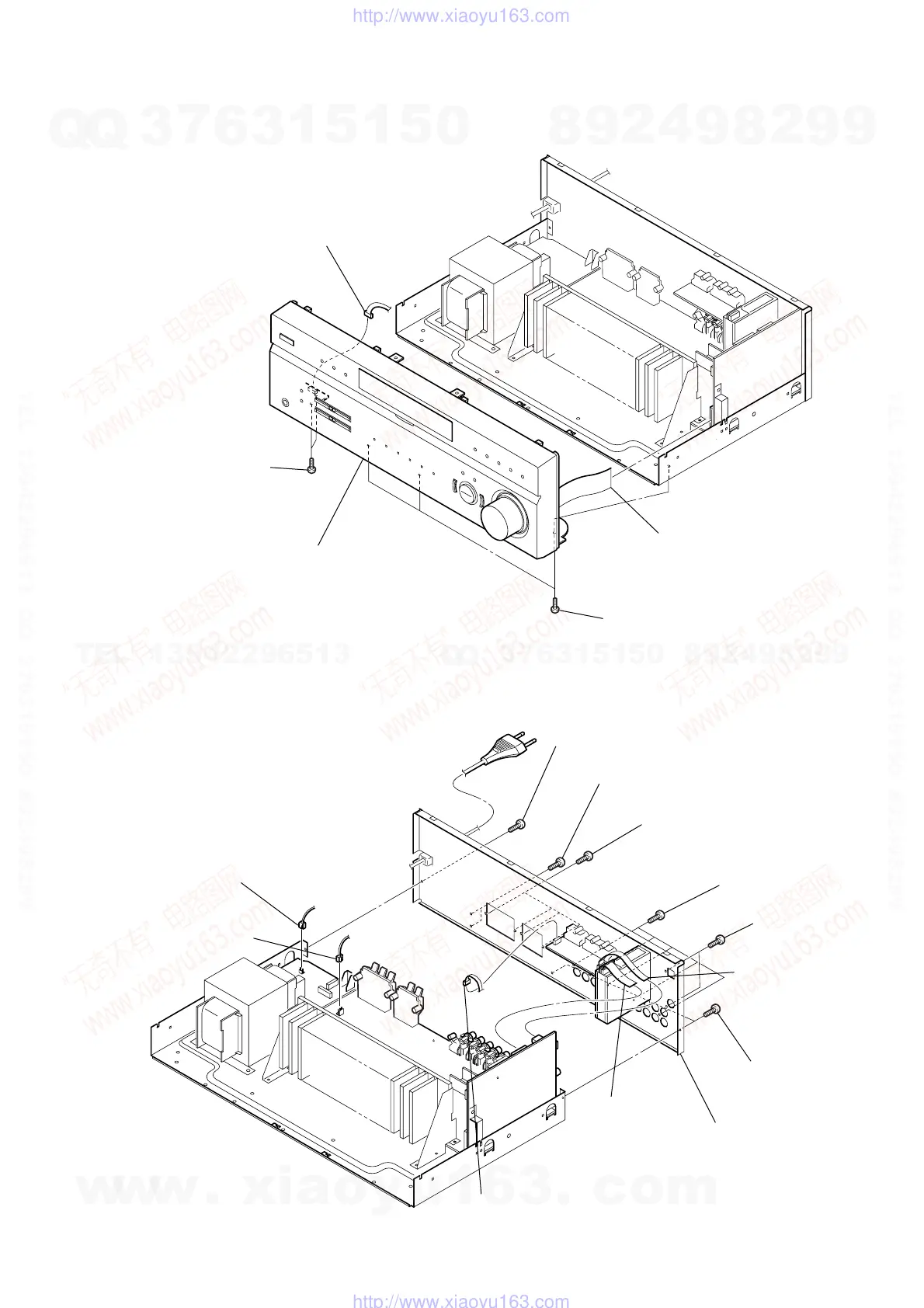

2-2. FRONT PANEL SECTION
2-3. BACK PANEL
5 front panel section
1 CNS4
2 CNP791
3 three screws
(BVTP3 x 8)
4 two screws
(BVTP3 x 8)
1 CNS7
3 CNP156
5 CNP901
4 CNP801
2 CNS8
8 two screws
(BVTP3 x 8)
qa four screws
(BVTP3 x 8)
qs back panel
9 two screws
(BVTP3 x 8
)
0 five screws
(BVTP3 x 8)
7 two screws
(BVTP3 x 8)
6 screw
(BVTP3 x 8)
