39
STR-DE497P/K4800P/K5800P

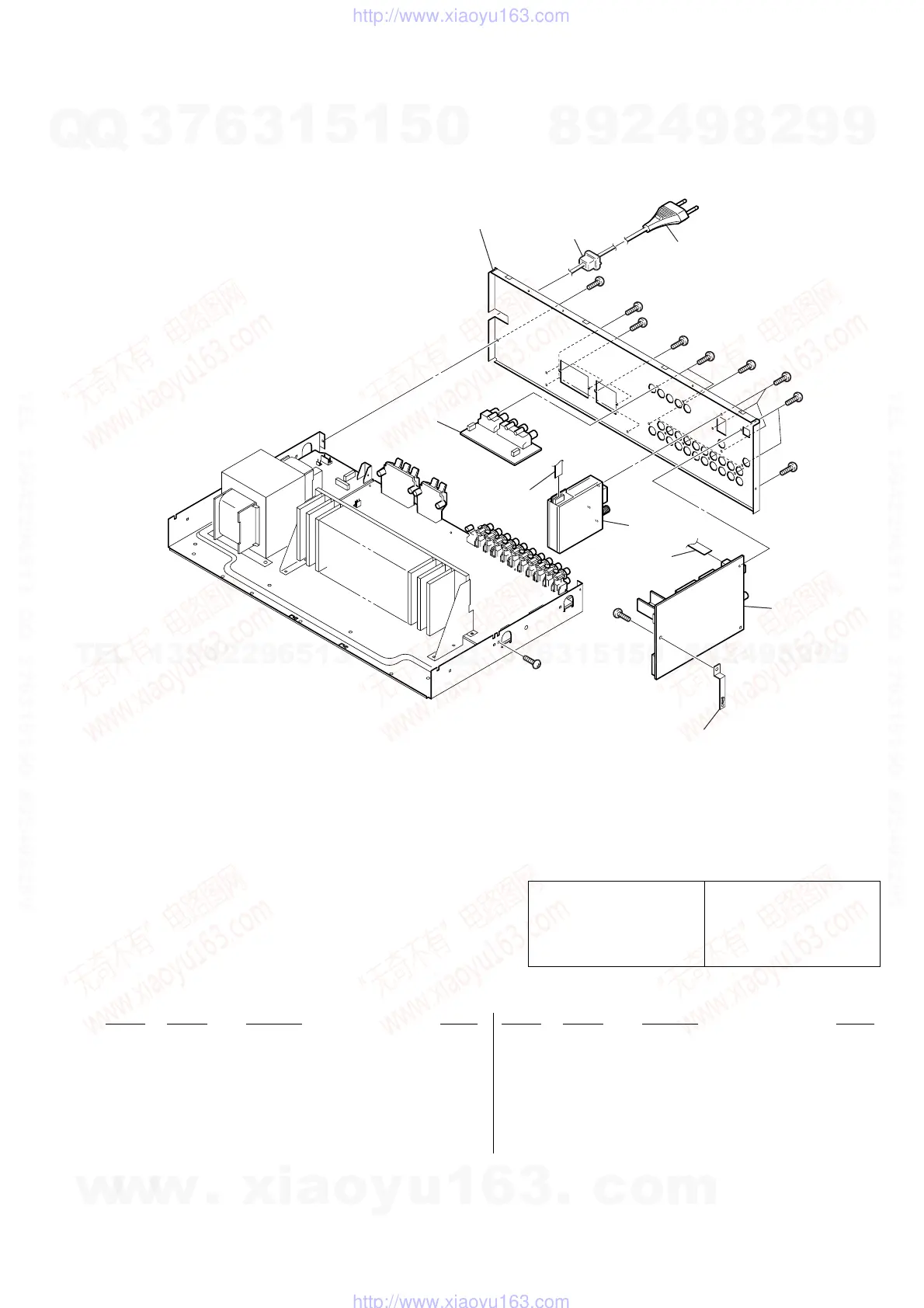

5-3. CHASSIS SECTION-1
Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark
101 A-4750-456-A DIGITAL BOARD, COMPLETE (DE497P)
101 A-4750-463-A DIGITAL BOARD, COMPLETE (K4800P/K5800P)
102 1-575-662-31 WIRE (FLAT TYPE) (5 CORE)
103 1-769-937-11 WIRE (FLAT TYPE) (11 CORE)
(K4800P/K5800P)
103 1-773-001-11 WIRE (FLAT TYPE) (15 CORE) (DE497P)
104 A-4750-410-A VIDEO BOARD, COMPLETE
* 105 3-703-244-00 BUSHING (2104), CORD
0 106 1-777-071-23 CORD, POWER (AEP,UK)
0 106 1-783-820-11 CORD, POWER (US,CND)
TN1 1-693-577-13 TUNER PACK (ANTENNA) (K5800P)
TN1 1-693-577-21 TUNER PACK (ANTENNA) (K4800P)
TN1 1-693-578-13 TUNER PACK (ANTENNA) (DE497P)
#1 7-685-646-79 SCREW +BVTP 3X8 TYPE2 IT-3
not supplied
101
102
103
104
105
106
#1
#1
#1
#1
#1
#1
#1
#1
#1
#1
#1
not supplied
TN1
The components identified by
mark 0 or dotted line with mark
0 are critical for safety.
Replace only with part number
specified.
Les composants identifiés par une
marque 0 sont critiques pour
la sécurité.
Ne les remplacer que par une piéce
portant le numéro spécifié.
