Tips
• When you connect a 7.1 channel speaker system
with two surround back speakers, all angle
0
should be the same.
• When you connect a
7.1 channel speaker system
with two front high speakers, place the front high
speakers at an angle between
22° to 45°.
Position the front high speakers at least 3.3 feet
(l meter) directly above the front speakers.
o
o
::::s
::::s
CD
(")
-
O·
::::s
en
•
22'
./B
", .,"
..~ ..
...... ~>,;;J ...•.••........
. ''': .... ,
. . ,.
...... /' . .... ""
~
22'
.... :
........ ~ ....

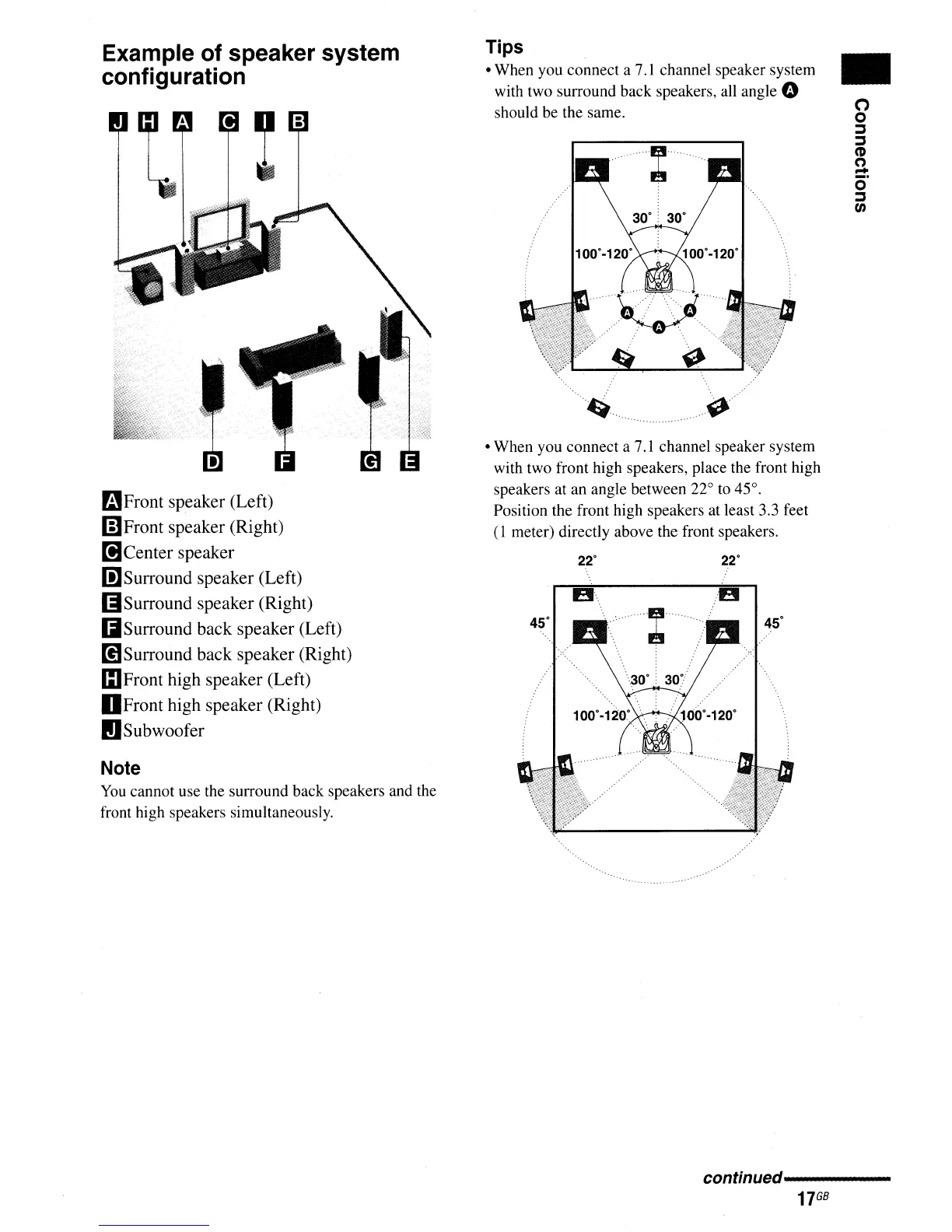

Example of speaker system
configuration
mFront speaker (Left)
(iJFront speaker (Right)
[lCenter speaker
mSurround speaker (Left)
~Surround speaker (Right)
IiSurround back speaker (Left)
[!1Surround back speaker (Right)
IDFront high speaker (Left)
DFront high speaker (Right)
IISubwoofer
Note
You cannot use the surround back speakers and the
front high speakers simultaneously.
