Sony STR-DH710 - Component Identification; Front Panel Controls and Indicators

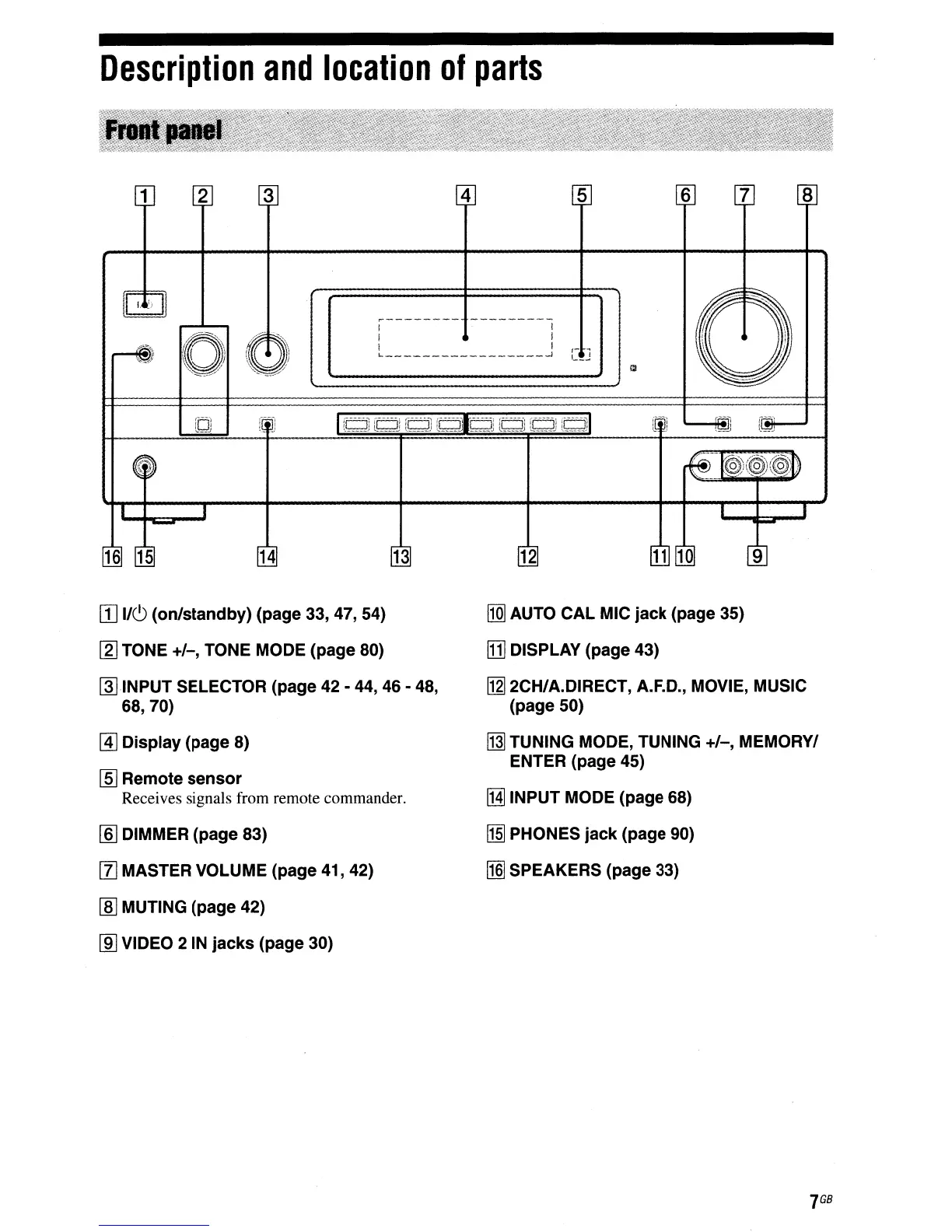

Description and location of parts
1 2 3
4 5 6 7 8
r-------- --------,
I
I , ,_"
L. -J 1 __ J
!DJ
14
.. ~
)
,..-'
13 12
[j] I/~ (on/standby) (page 33, 47, 54)
[2] TONE +/-, TONE MODE (page 80)
~INPUT SELECTOR (page 42 - 44, 46 - 48,
68,70)
@] Display (page 8)
lID Remote sensor
Receives signals from remote commander.
[§] DIMMER (page 83)
[1] MASTER VOLUME (page 41, 42)
lID MUTING (page 42)
[ID VIDEO 2 IN jacks (page 30)
IIQ] AUTO CAL MIC jack (page 35)
[1] DISPLAY (page 43)
[1g] 2CH/A.DIRECT, A.ED., MOVIE, MUSIC
(page 50)
~ TUNING MODE, TUNING +/-, MEMORY/
ENTER (page 45)
lH]INPUT MODE (page 68)
[§ PHONES jack (page 90)
[j]] SPEAKERS (page 33)
7
GB
