MULTI CHANNEL AV RECEIVER

STR-DN1050/STR-DN850

Connecting another amplifier in zone 2 (for STR-DN1050 only)

You can enjoy image (*) and sound from a device connected to the receiver in a zone other than the main zone. For

example, you can watch a DVD in the main zone and listen to a CD in zone 2.

For a connection using the HDMI ZONE 2 OUT jack only

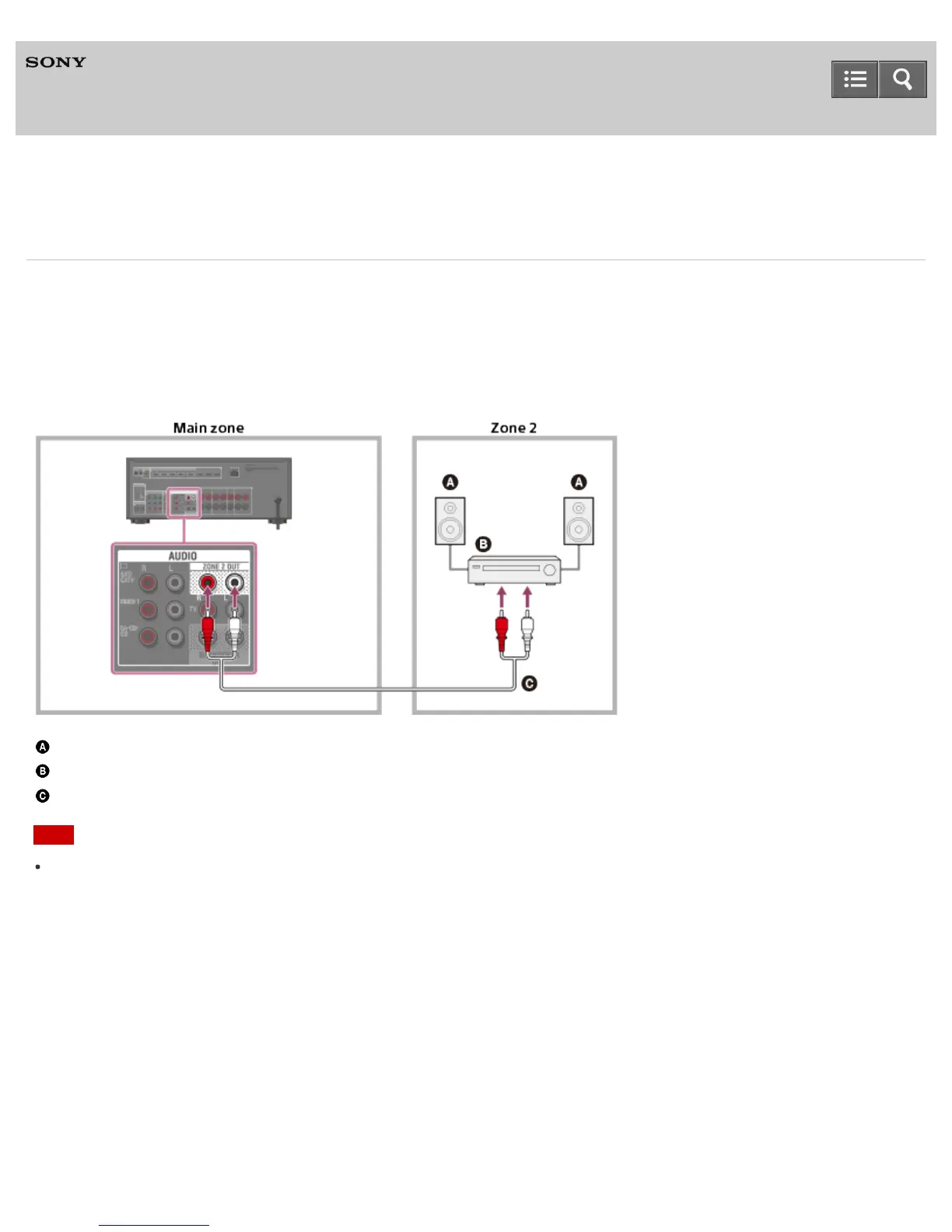

Connecting another amplifier using the AUDIO ZONE 2 OUT jack

Speakers

Amplifier/receiver made by Sony

Audio cable (not supplied)

Note

Only analog audio signals are output in zone 2.

Connecting another amplifier using the HDMI ZONE 2 OUT jack

HDMI input video/audio signals are output in zone 2 using the HDMI ZONE 2 OUT jack of the receiver.
