59
Specifications
Appendixes
Connection Cable Specifications for Color Temperature Probes
Special cables are required to connect color temperature
probes other than the Sony BKM-14L to the monitor.
The following diagrams show specifications and pin
assignments for the required cables.

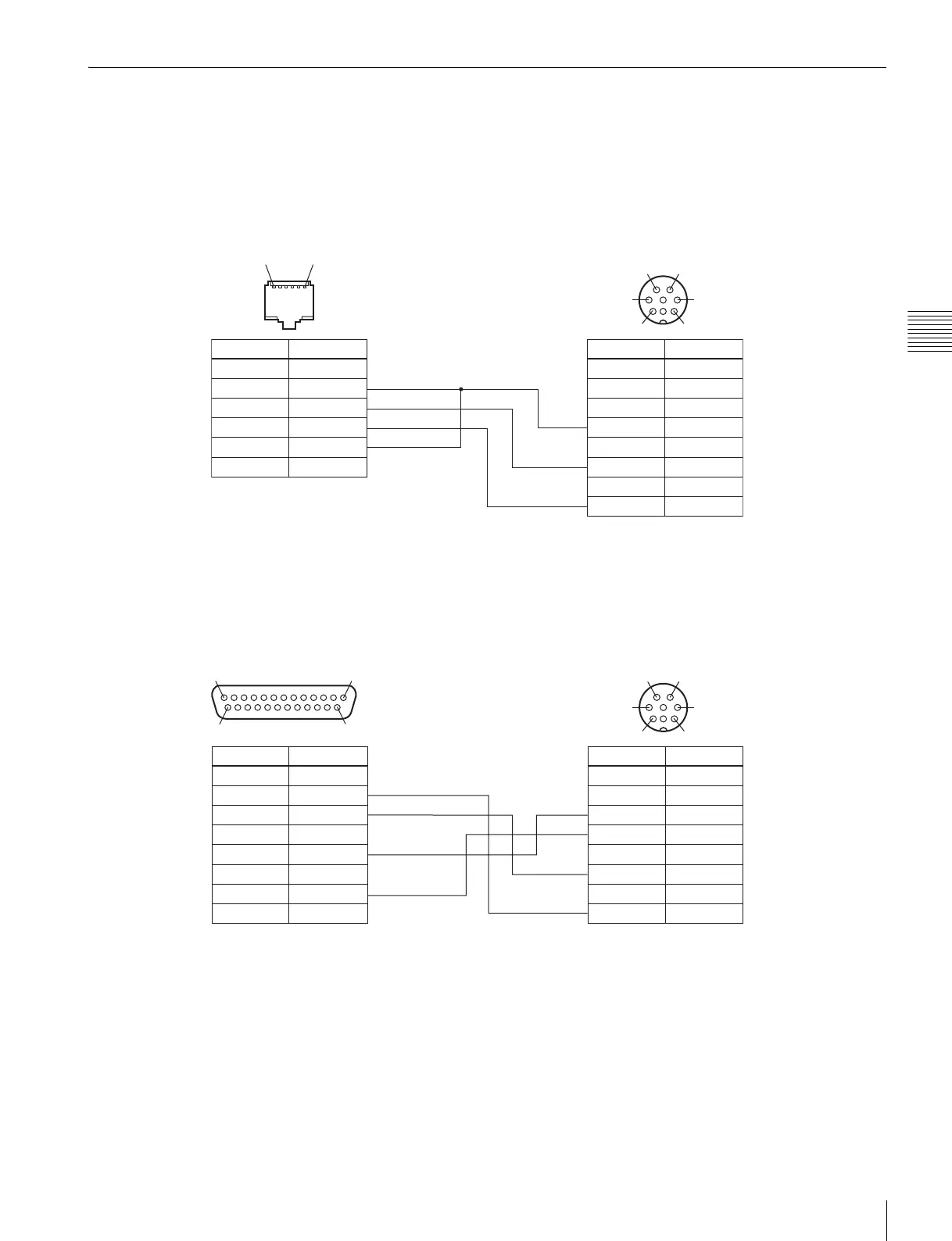

Connection cable for UDT INSTRUMENTS SLS 9400-FC probe
Connection cable for KONICA MINOLTA CA-100 probe
N.C.
GND
RXD
TXD
GND
N.C.
1
2
3
4
5
6
N.C.
N.C.
RTS
GND
N.C.
TXD
+5V
RXD
1
2
3
4
5
6
7
8
16
1
2
3
6
8
5
Modular connector
Signal Pin Number
Signal
Pin Number
Mini DIN 8-pin connector (male)
N.C.
TXD
RXD
RTS
CTS
N.C.
GND
N.C.
1
2
3
4
5
6
7
8~25
N.C.
N.C.
RTS
GND
N.C.
TXD
+5V
RXD
1
2
3
4
5
6
7
8
113
14 25
1
2
3
6
8
5
D-sub 25-pin connector (male)
Signal Pin Number
Mini DIN 8-pin connector (male)
Signal
Pin Number
