20
Selecting the Monitor/Group
Chapter 1 Overview
Selecting the Monitor/Group
When the multiple monitors are connected by the network
connections, you can connect the monitors from the control
unit by designating the monitor ID No. or group ID No..
About monitor ID No. and group ID No.
This monitor is able to control the multiplex monitors
connected via the LAN (10/100) connector. By giving
each monitor a monitor ID No. and group ID No., it is
possible to control just a specific monitor or monitor group.
With the NETWORK menu, each monitor can be set with
a monitor ID No. or group ID No., between 1 and 99.
The monitor select buttons are used to select a particular
monitor or group by entering a monitor ID No. or group ID
No..
For the network menu, see “
[D]
System Configuration –
SYSTEM CONFIGURATION Menu” on page 39.

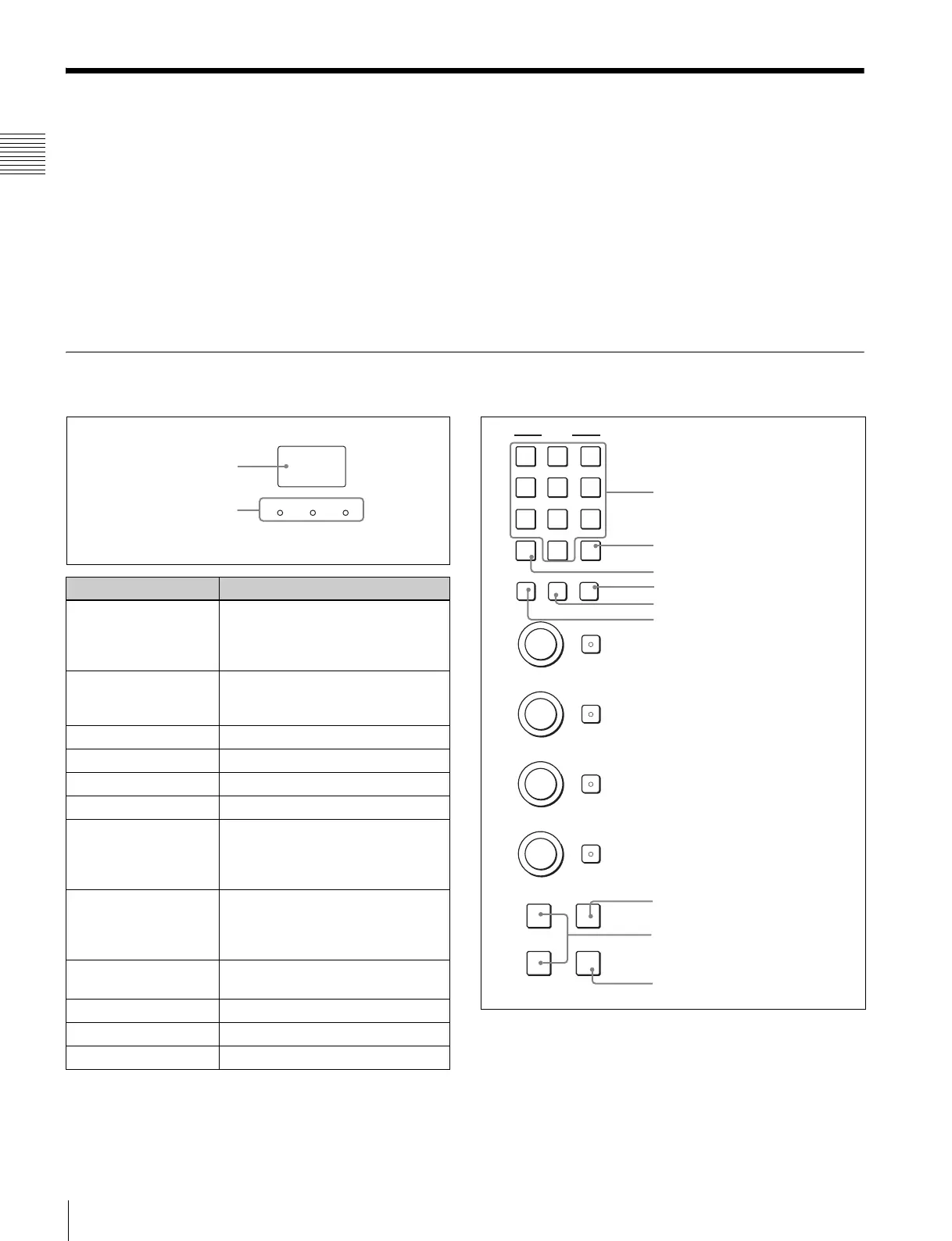

About monitor select buttons and lamps
Pin number Function
1 Display window Selected monitor ID No., group ID
No. or ALL is displayed. The
display blinks until the remote
connection is completed.
2 Lamps The lamp corresponding with the
pressed button blinks during setting
ID No. or lights after confirming.
3 Numeric buttons Enters the ID No..
4 Ent button Confirms the setting.
5 Del button Deletes the ID No..
6 ALL button Selects ALL connection mode.
7 GROUP button Selects GROUP connection mode.
The group ID number is displayed
on all connected monitors when the
button is held pressed.
8 SINGLE button Selects SINGLE connection mode.
The monitor ID number is displayed
on all connected monitors when the
button is held pressed.
9 MENU button In setting mode, goes back to the
previous setting.
0 UP button Increases the ID No..
0 DOWN button Decreases the ID No..
qa ENTER button Confirms the setting.
SINGLE GROUP ALL
2Lamps
1Display window
UP
MENU
DOWN
ENTER
INPUT
PHASE
CHROMA
BRIGHT
CONTRAST
MANUAL
MANUAL
MANUAL
MANUAL
SINGLE
REMOTE
GROUP
ALL
1
2
3
Del
4
5
6
0
7
8
9
Ent
0 UP/DOWN button
9 MENU button
qa ENTER button
8 SINGLE button
7 GROUP button
6 ALL button
3 Numeric buttons
4 Ent button
5 Del button
