Sony VPL-ES5 - Fan (Exhaust) -2

1-6
VPL-ES5/EX5/EX50/EX5U/EW5

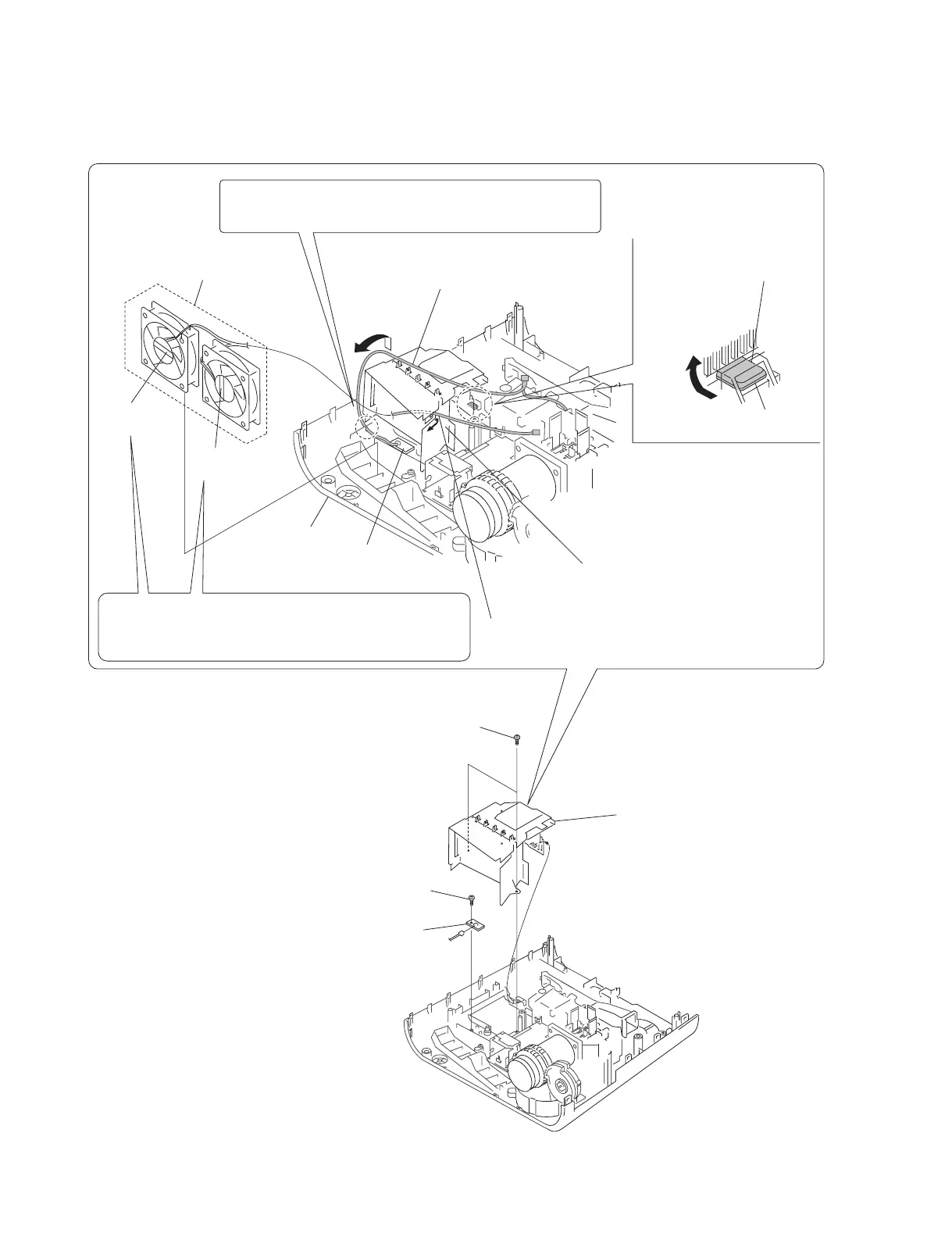

1-3-7. Fan (Exhaust) -2
8 Door detection switch board
6 Lamp box assembly
5 Remove the protrusion in the
direction of the arrow
A .
4 Remove the door detection switch
harness in the direction of the arrow
C .
2 Remove the fan harness in the direction of the arrow B .
1 Two tapping screws
(PAN 3 x 7)
7 Tapping screw
(PAN 3 x 7)
3 Fan (Exhaust)
*2 80*25 170MM AD0812UB/HB
CN1
Door detection
switch board
A
C
Lamp box assembly
UB mark is
indicated.
HB mark is
indicated.
Caution :
When attaching the lamp box assembly, insert the door detection
switch harness into the groove of the lower case assembly.
Caution :
Two exhaust fans are the two different fans having the difference
characteristics. Be careful not to make mistake in choosing the
desired fan by confirming the indication on the fans.
Lower case assembly
protrusion
B
