Sony VPL-ES5 - Sub Rear Case Assembly; Main Board

1-3
VPL-ES5/EX5/EX50/EX5U/EW5

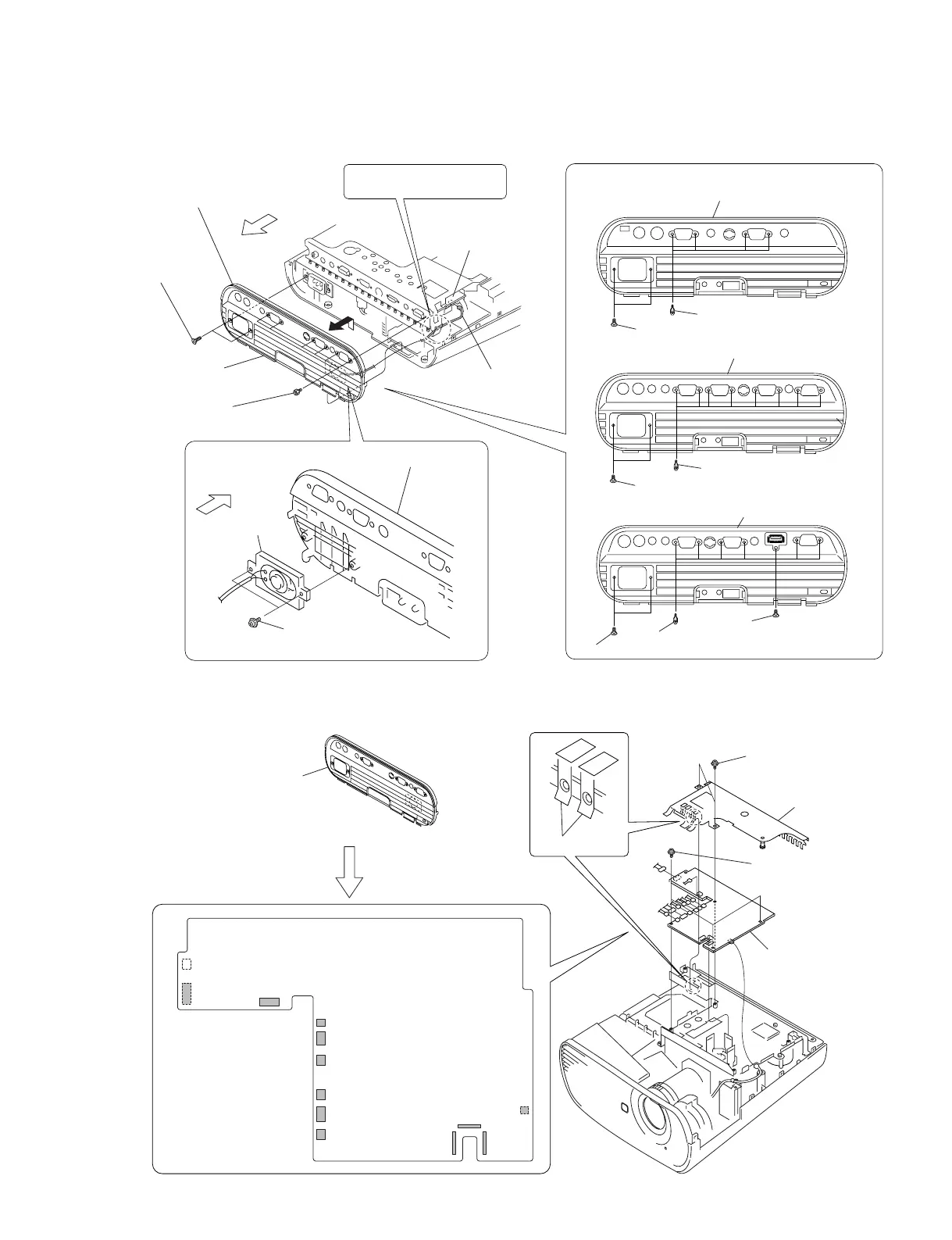

1-3-2. Sub Rear Case Assembly
Main board
J11
1 Speaker harness
4 Sub rear case assembly, etc.
2 Six hexagon
screws
3 Two screws
(+K 3 x 12)
5 Two screws
(+PWH 3 x 6)
7 Sub rear case assembly
6 Speaker
VPL-EX5
VPL-EX5U
Rear Side
of Unit
Rear Side
of Unit
Route the speaker harness
under the MB bracket.
2 Eight hexagon screws
4 Sub rear case assembly
2 Six hexagon screws
VPL-EW5
VPL-ES5
VPL-EX50
2 Four hexagon screws
Sub rear case assembly
4 Sub rear case assembly
4 Sub rear case assembly
3 Two screws (+K 3 x 12)
3 Two screws (+K 3 x 12)
3 Two screws (+K 3 x 12)
8 One screw (+F 3 x 8)
1-3-3. Main Board
4 Two screws
(+PWH 3 x 6)
3 Three screws
(+PWH 3 x 6)
5 Shield
Shield
6 Main board
1 Sub rear case assembly,
etc.
2 Remove the
twelve connectors.
J17
J16
J26
J21
J20
J14
J23
J24 J22
J6
J19
J18
Main board
(Refer to section 1-3-2, steps 1 to 4.)
J11
