Sony VPL-ES5 - Fan

1-9
VPL-ES5/EX5/EX50/EX5U/EW5

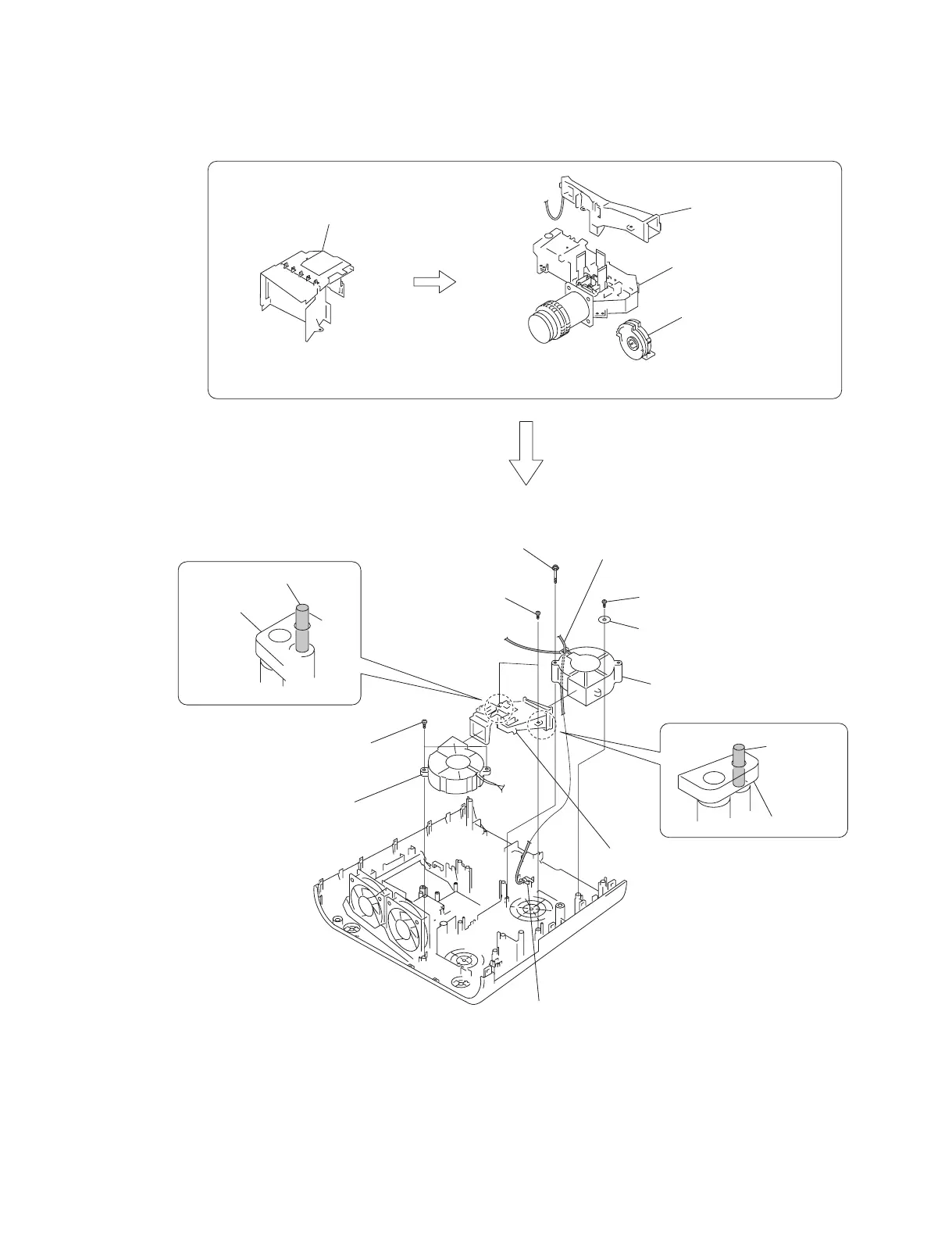

1-3-10. Fan
0 Tapping screw
(PAN 3 x 7)
!-
Washer
6 Two tapping screws
(PAN 3 x 7)
!] Two tapping screws
(PAN 3 x 10)
![ Fan
75*75*30 145MM AB7512UB
!\ Fan
70*70*25 240MM AB07012UB
9 Prism duct
5 Harness
!= Tapping screw
(PH W/FL M3 x 35NI)
Thermal sensor board
(Refer to section 1-3-6, steps 5 to 10) and
(refer to section 1-3-7, steps 1,2, 4 to 6.)
(Refer to section 1-3-8, steps 2 to 8.)
1 Lamp box assembly
2 Duct lamp assembly
3 Focus/Zoom adjust
assembly
4 Optical unit assembly
7 Dowel
Prism duct
Prism duct
8 Dowel
