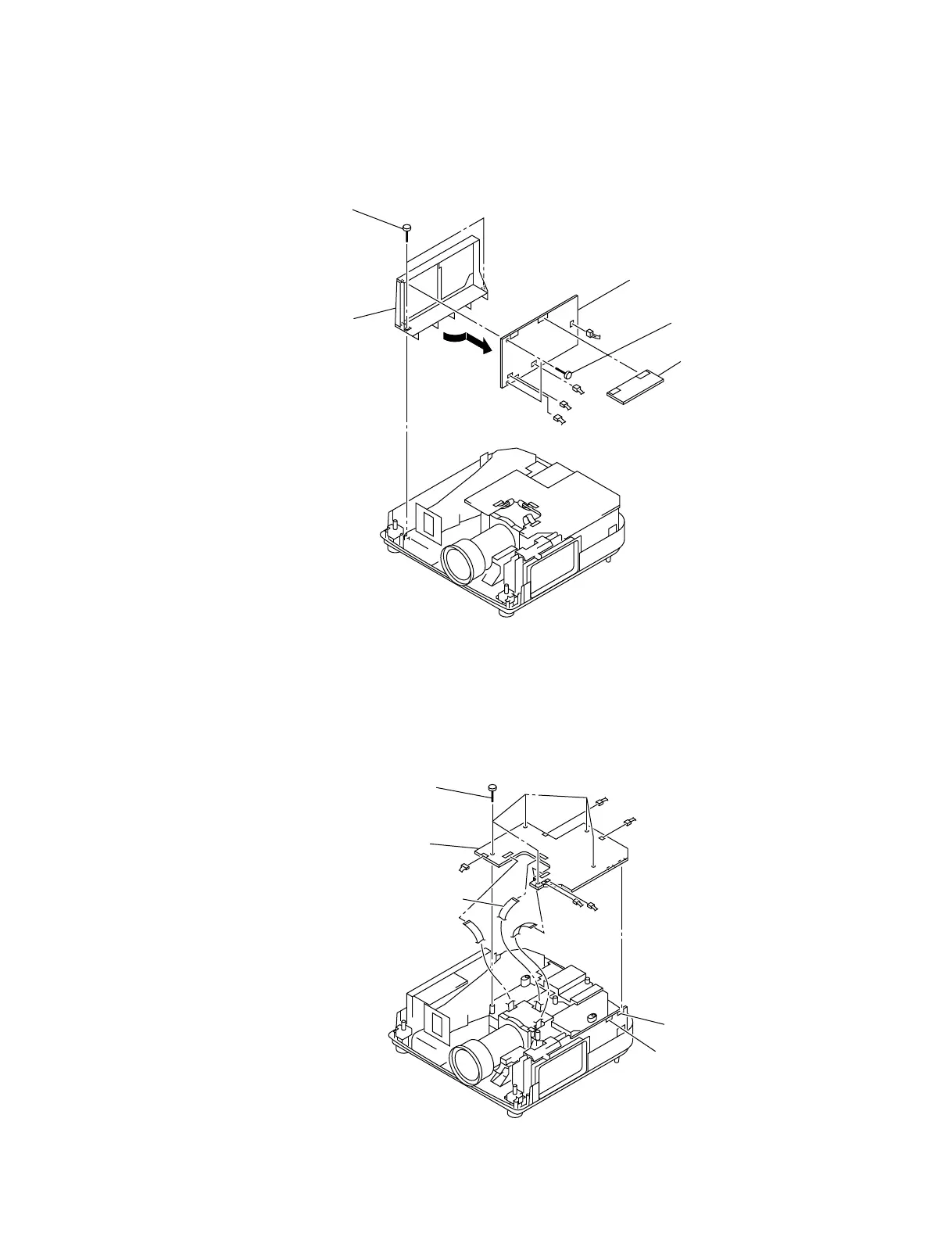

2-4. G and GA Boards Removal

2-5. C Board Removal

1 Two screws (+B3 x 6)

2 Holder(G)

4 G board

CN2001

CN2002

CN2009

CN2008

5 GA board

3 Two screws

(+BVTP3 x 8)

1 Five screws (+B3 x 6)

2 C board

Connector (CN4002)

CN5006

CN5007

CN5010

CN5601

CN5801

CN5701

TP5801

C5803

Connector (CN4004)

Sony VPL-VW10HT Service Manual
