2-5

VPL-VW10HT

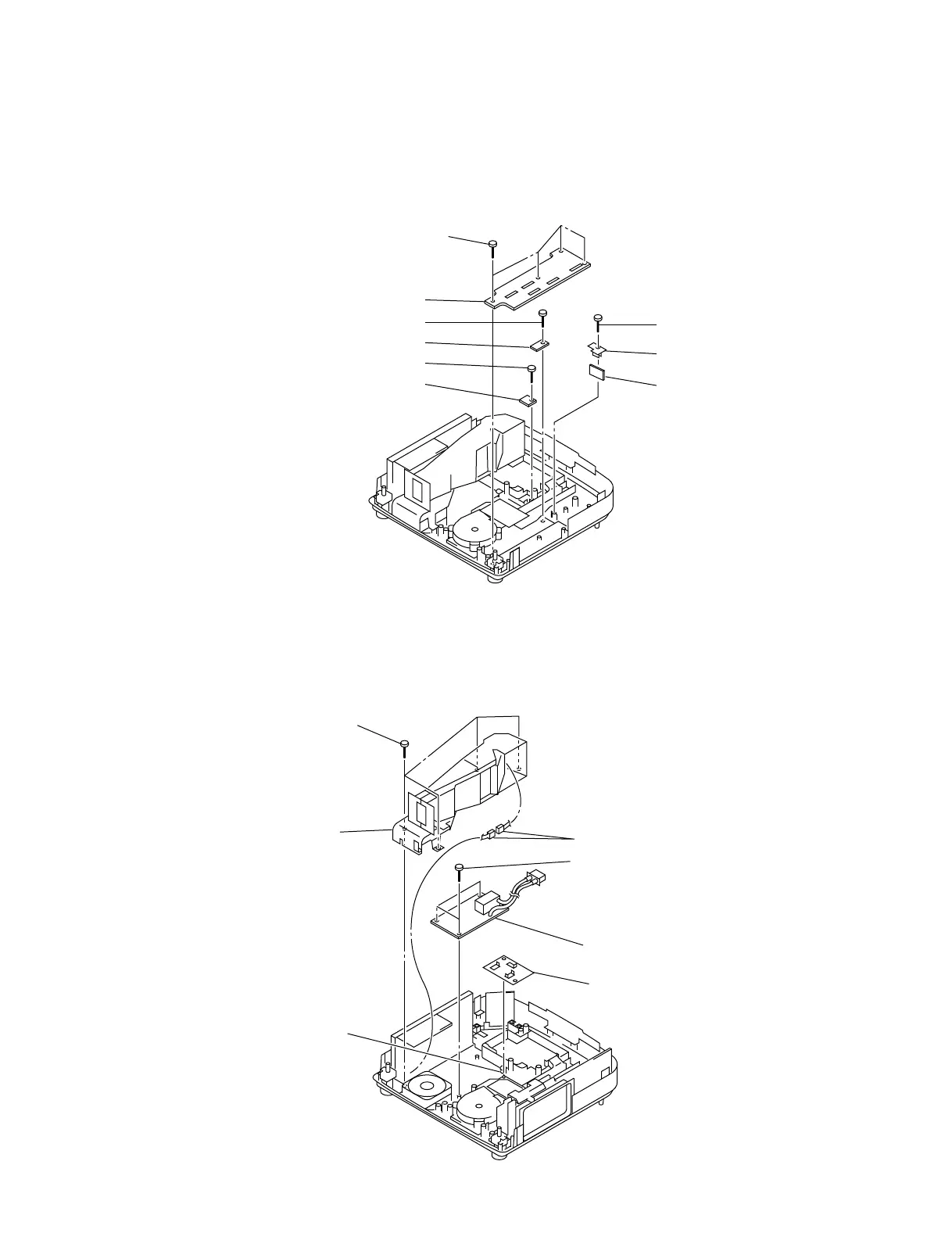

2-8. TH, U, BM and V Boards Removal

• Remove the B and Q Boards (Refer to 2-6.).

• Remove the optical unit assy (Refer to 2-7.).

2-9. Power Block Removal

• Remove the optical unit assy (Refer to 2-7.).

5 Four screws (+B3 x 6)

6 BM board

1 Screw (+B3 x 6)

7 Screw (+B3 x 6)

2 TH board

8 Holder (V)

9 V board

3 Screw (+B3 x 6)

4 U board

1 Four screws (+B3 x 6)

3 Three screws (+B3 x 6)

2 Duct

Holder (LPS)

Fin (VW)

4 Power block

Connector (3P)
