Sony VPL-VW10HT Service Manual

2-4
VPL-VW10HT

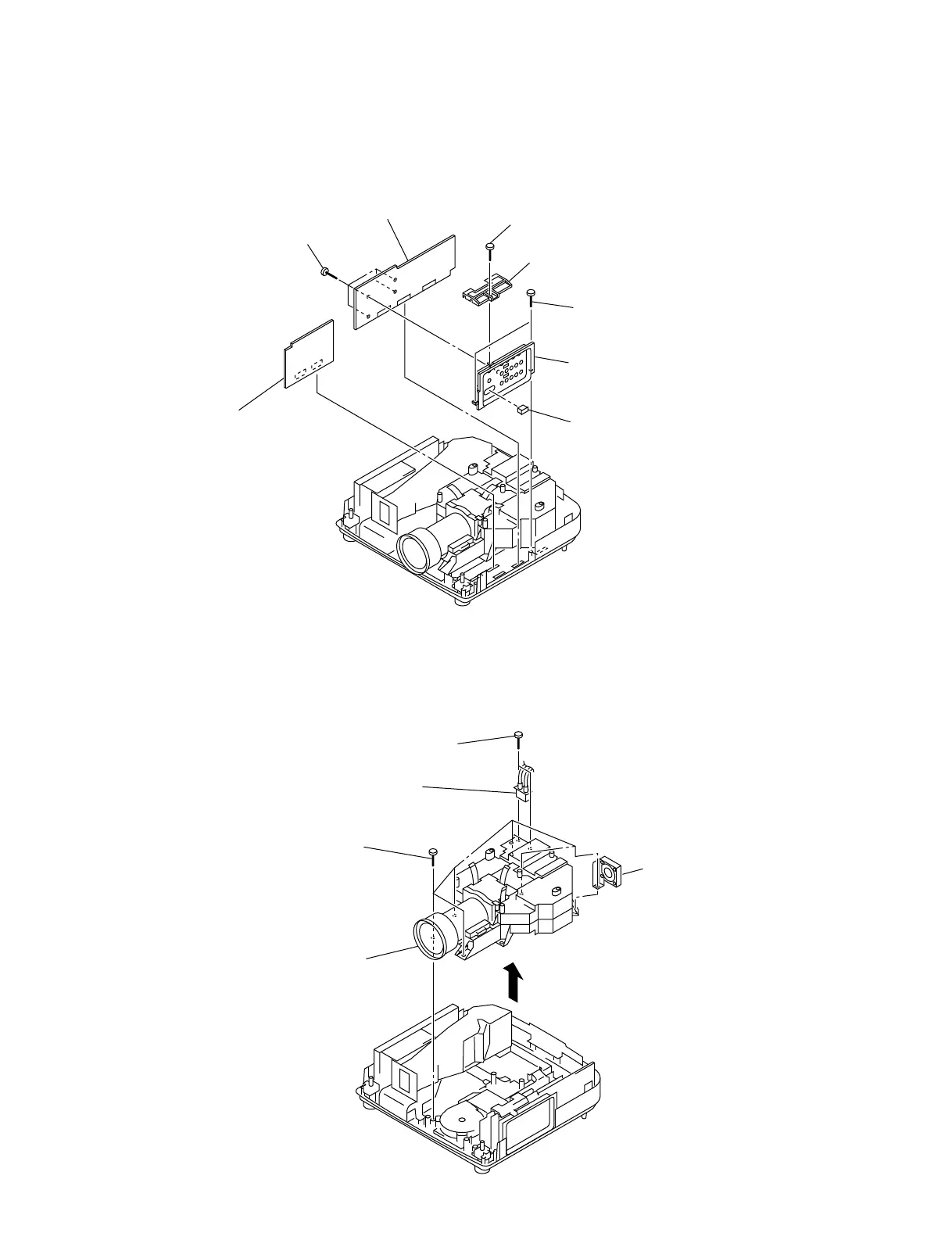

2-6. B and Q Boards Removal
• Remove the C Board (Refer to 2-5.).
2-7. Optical Unit Assy Removal
• Remove the C Board (Refer to 2-5.).
6 Four screws (+BVTP3 x 8)
5 Q board
3 B board
1 Screw (+B3 x 6)
2 Holder (B)
4 Two screws (+B3 x 6)
7 Connector panel
Cover (9P receptacle)
2 Two screws (+PWH3 x 6)
3 Connector (2P)
1 Six screws (+PSW4 x 12)
4 Optical unit assy
DC fan
