Sony VPL-VW10HT Service Manual

VPL-VW10HT
5-4
REF NO. PART NO. DESCRIPTION REMARK
REF NO. PART NO. DESCRIPTION REMARK

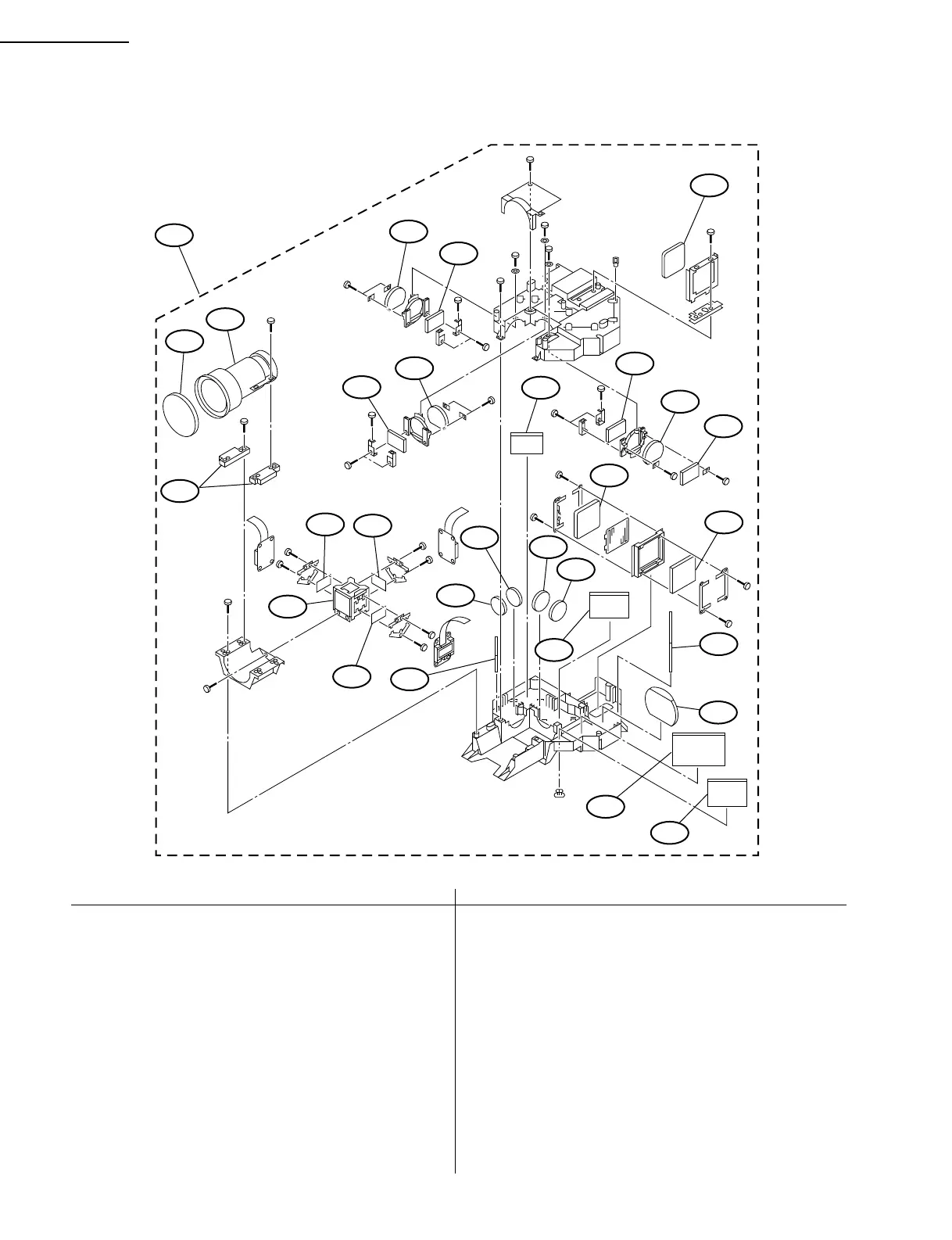

5-4. Optical Unit
Optical Unit
151 1-758-451-11 OPTICAL UNIT 152-179
152 9-885-000-35 MIRROR D
153 9-885-000-34 MIRROR B
154 9-885-000-32 MIRROR, G REFLECTION
155 9-885-000-33 MIRROR A
156 9-885-000-31 MIRROR, B LIGHT TRANSMISSION
157 9-885-000-36 MIRROR C
158 9-885-000-38 MAIN CONDENSOR LENS
159 9-885-000-39 LENS A, RELAY
160 9-885-000-40 LENS B, RELAY
161 9-885-000-41 LENS C, RELAY
162 9-885-000-42 LENS D, RELAY
163 9-885-000-26 FLYEYE LENS B
164 9-885-000-27 FLYEYE/PS CONVERTER
165 9-885-000-25 FLYEYE LENS A
166 9-885-000-30 POLARIZER, R/CONDENSOR LENS
167 9-885-000-49 POLARIZER, R-IN PLATE
168 9-885-000-28 POLARIZER, G/CONDENSOR LENS
169 9-885-000-45 POLARIZER, G-IN PLATE
170 9-885-000-29 POLARIZER, B/CONDENSOR LENS
171 9-885-000-47 POLARIZER, B-IN PLATE
172 9-885-000-43 UV PROOF GLASS
173 9-885-000-23 PRISM BLOCK ASSY
174 9-885-000-50 POLARIZER, R-OUT PLATE
175 9-885-000-46 POLARIZER, G-OUT PLATE
176 9-885-000-48 POLARIZER, B-OUT PLATE
177 9-885-000-37 SPACER, COMPLETE
178 9-885-000-24 PROJECTION LENS
179 9-885-000-44 LENS CAP
151
166
167
165
171
170
172
164
155
158
156
157
154
159
160
161
162
152
176
173
174
175
168
169
178
179
177
163
153
