2-6
VPL-VW10HT

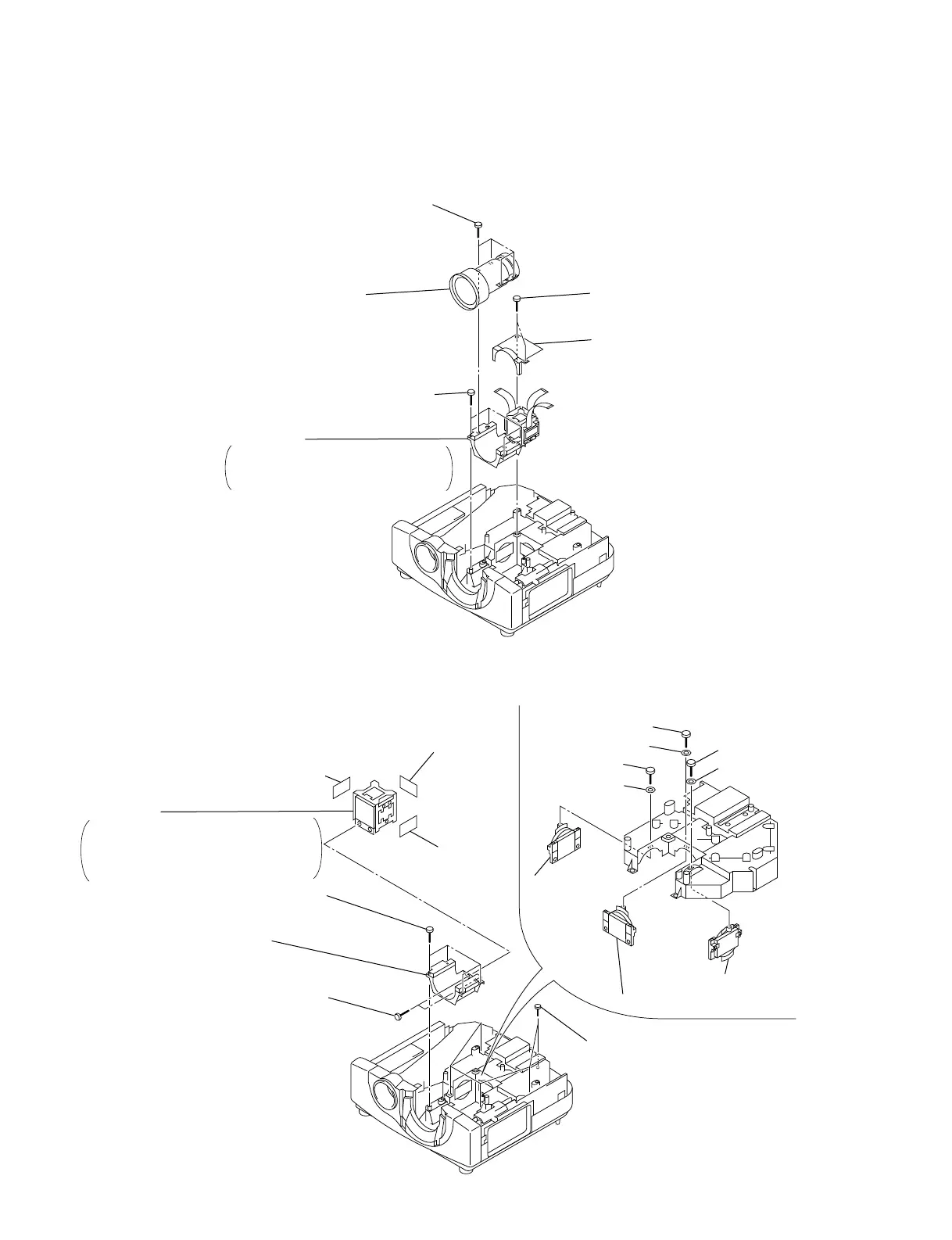

2-10. Lens Assy Removal
• Remove the C Board (Refer to 2-5.).
2-11. Prism Block Removal
• Remove the B and Q Boards (Refer to 2-6.).
• Remove the optical unit assy (Refer to 2-7.).
5 Four screws (+PSW4 x 8)
4 Lens bracket
Remove the lens assembly attached
to the lens bracket instead of the single
lens assembly, if possible.
3 Four screws (+B3 x 8)
6 Lens assy
2 Lens holder
1 Two screws (+B3 x 8)
3 Two screws (+B3 x 8)
1 Four screws (+B3 x 8)
2 Lens bracket
8 Five screws
5 Polarizer, R-OUT plate
6 Polarizer, G-OUT plate
7 Polarizer, B-OUT plate
4 Prism block
NOTE: Use extreme care not to tuch the
glass section of prism, LCD and
conductive section of the flexible
cable in particular.
!' Polarizer, B-IN plate
!] Polarizer, G-IN plate
!- Polarizer, B-IN
plate
!/ Washer
9 Screw
To Next Page
