VPL-VW10HT
5-2

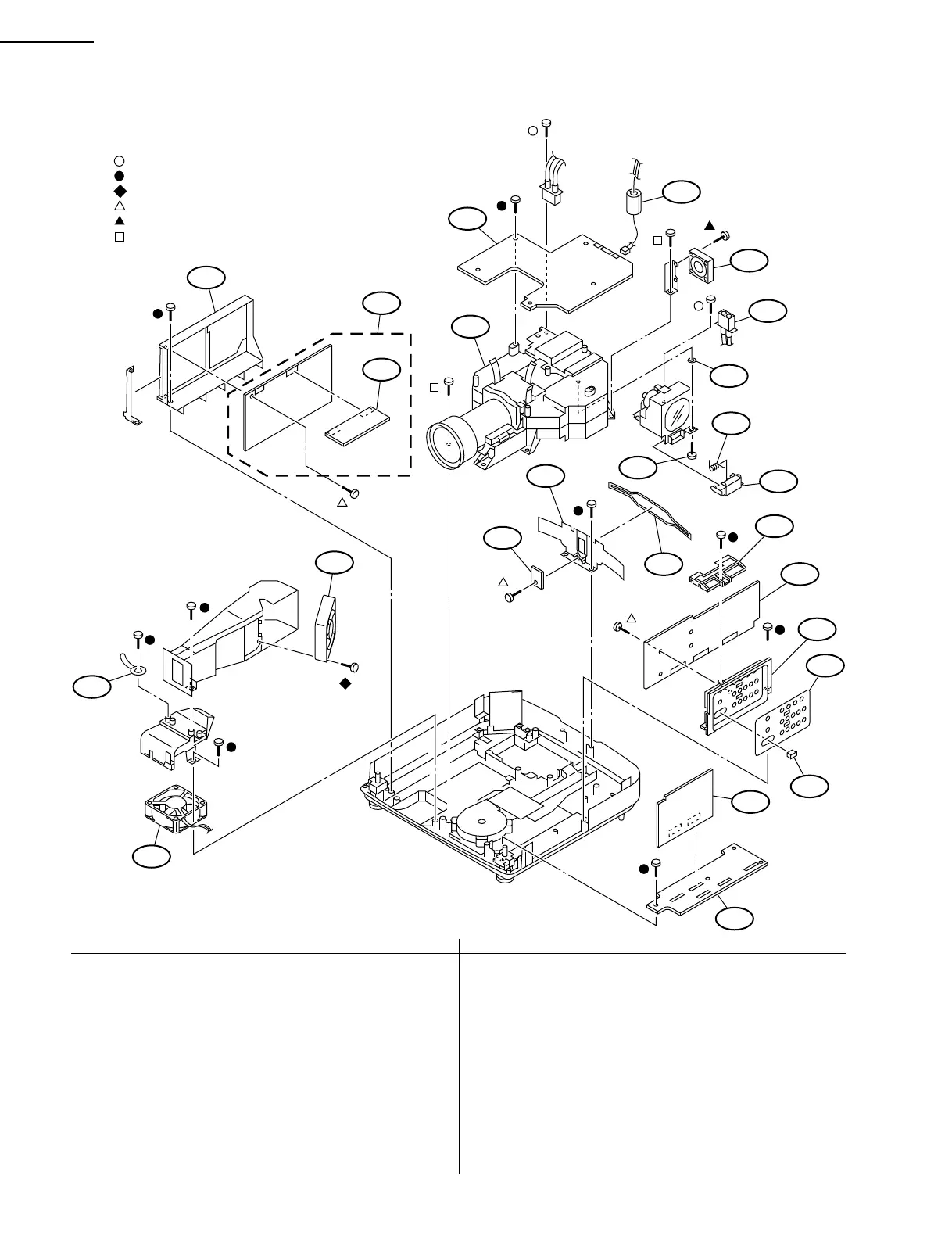

5-2. Chassis
Chassis
: 7-682-903-11 +PWH 3x6
: 7-682-547-04 +P 3x6
: 7-682-569-09 +B 4x35
: 7-685-646-79 +BVTP 3x8
: 7-682-552-09 +B 3x16
: 7-682-663-09 +PSW 4x12
51
51
52
53
54
55
56
57
58
59
60
61
62
63
64
65
66
67
68
69
70
71
72
73
74
REF NO. PART NO. DESCRIPTION REMARKREF NO. PART NO. DESCRIPTION REMARK REF NO. PART NO. DESCRIPTION REMARK
51 1-763-070-11 FAN, DC
52 * 4-074-870-01 HOLDER (G)
53 * A-1316-491-A G COMPL 54
54 * A-1311-819-A GA MOUNT
55 * A-1335-122-A C COMPL
56 1-758-451-11 OPTICAL UNIT
57 1-698-059-11 FAN, DC
58 * 3-715-526-01 WASHER (M3)
59 4-066-202-01 SCREW, M3
60 * 4-073-788-01 SPRING, DOOR
61 * 4-073-787-01 DOOR, DUCT
62 * 4-074-866-01 WINDOW (RE), RE
63 * 4-074-869-01 HOLDER (RE)
64 * 1-675-771-11 PWB, NR
65 * 4-074-863-01 HOLDER (B)
66 * A-1275-185-A Q COMPL
67 * 4-074-460-01 PANEL, CONNECTOR
68 * 4-074-865-01 LAVEL, CONNECTOR NAME
69 * 4-957-207-01 COVER (9P RECEPTACLE)
70 * A-1136-046-A B COMPL
71 * A-1131-492-A BM MOUNT
72 1-900-222-47 CONNECTOR ASSY 2P
73 3-701-822-01 HOLDER, WIRE
74 1-500-082-11 CLAMP, SLEEVE FERRITE
