VPL-VW10HT
5-3

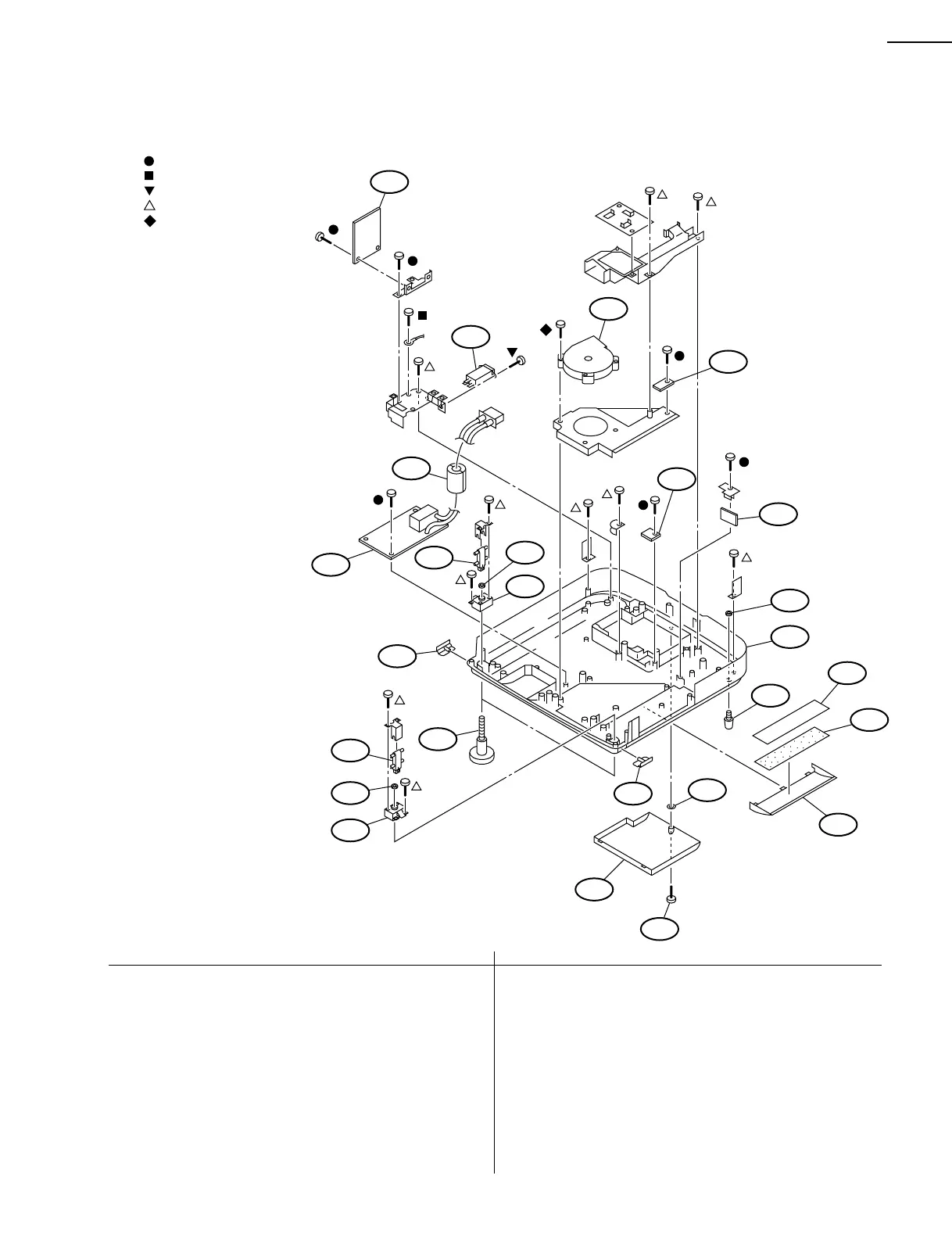

5-3. Base
Base
: 7-682-547-04 +B 3x6
: 7-682-660-09 +PSW 4x6
: 7-682-246-09 +K 3x5
: 7-685-646-79 +BVTP 3x8
: 7-682-569-09 +B 4x35
REF NO. PART NO. DESCRIPTION REMARK
REF NO. PART NO. DESCRIPTION REMARK
101 * 4-074-458-01 BASE
102 * A-1241-397-A F MOUNT
103 ! 1-526-813-12 INLET, AC (3P)
104 1-763-417-11 FAN, DC
105 * 1-675-920-11 PWB, TH
106 * 1-675-772-11 PWB, U
107 * 1-675-773-11 PWB, V
108 ! 1-468-445-21 POWER BLOCK
109 * 4-074-837-01 STAY (ADJ)
110 * 4-074-859-01 ADJUSTER UNITE
111 4-303-605-00 NUT
112 4-074-858-01 LEVER (ADJL)
113 4-074-856-01 LEVER (ADJ)
114 * 4-074-847-01 HOOT (FR), ADJUSTER
115 * 4-074-849-01 HOOT (RE), ADJUSTER
116 4-074-848-01 HOLDER, FILTER
117 4-074-850-01 FILTER
118 4-074-459-01 COVER, FILTER
119 * 3-715-526-01 WASHER (M3)
120 4-073-989-01 SCREW (+B M3X12), PREVENTION
121 4-074-464-01 LAMP COVER
122 * 1-543-830-11 CLAMP, SLEEVE FERRITE
101
102
103
104
105
106
107
108
109
109
110
110
111
111
111
112
113
114
115
116
117
118
119
120
121
122
