Heater-Cooler System 3T • Installation
4.4 CP_IFU_16-XX-XX_USA_015

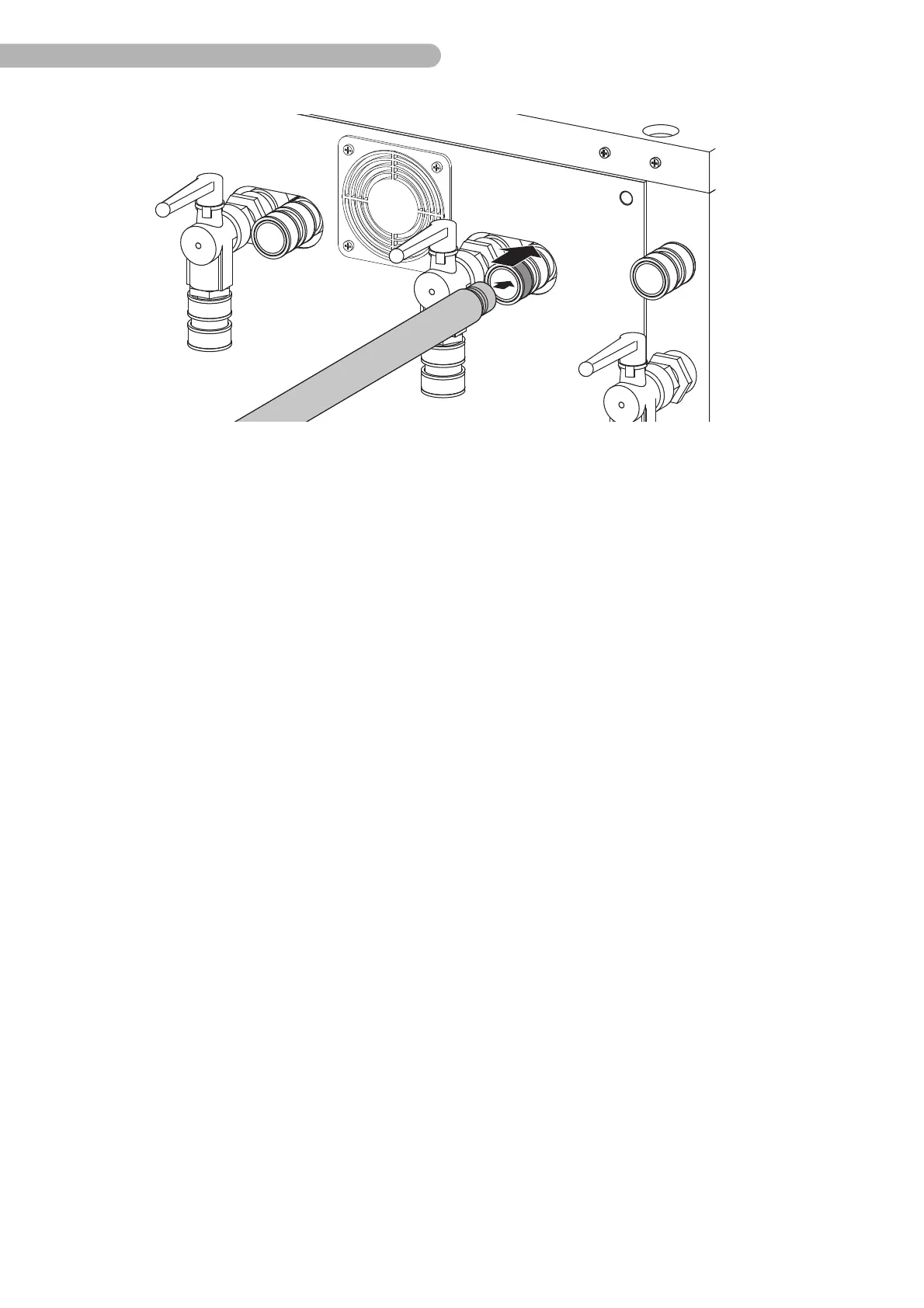

Fig. 5: Connecting the tubings
◗ Push the ring of the fast (Hansen-type) connector in the direction of the arrow to insert or remove
the tubings.
◗ Insert the tubings with connector and allow the locking ring to return to its original position.
!
◗ The locking ring should click into place. Ensure that the tubings are correctly seated by gently
pulling on the tubings.
