Heater-Cooler System 3T • Installation
4.8 CP_IFU_16-XX-XX_USA_015
4.2.3 Electrical connections
Power supply

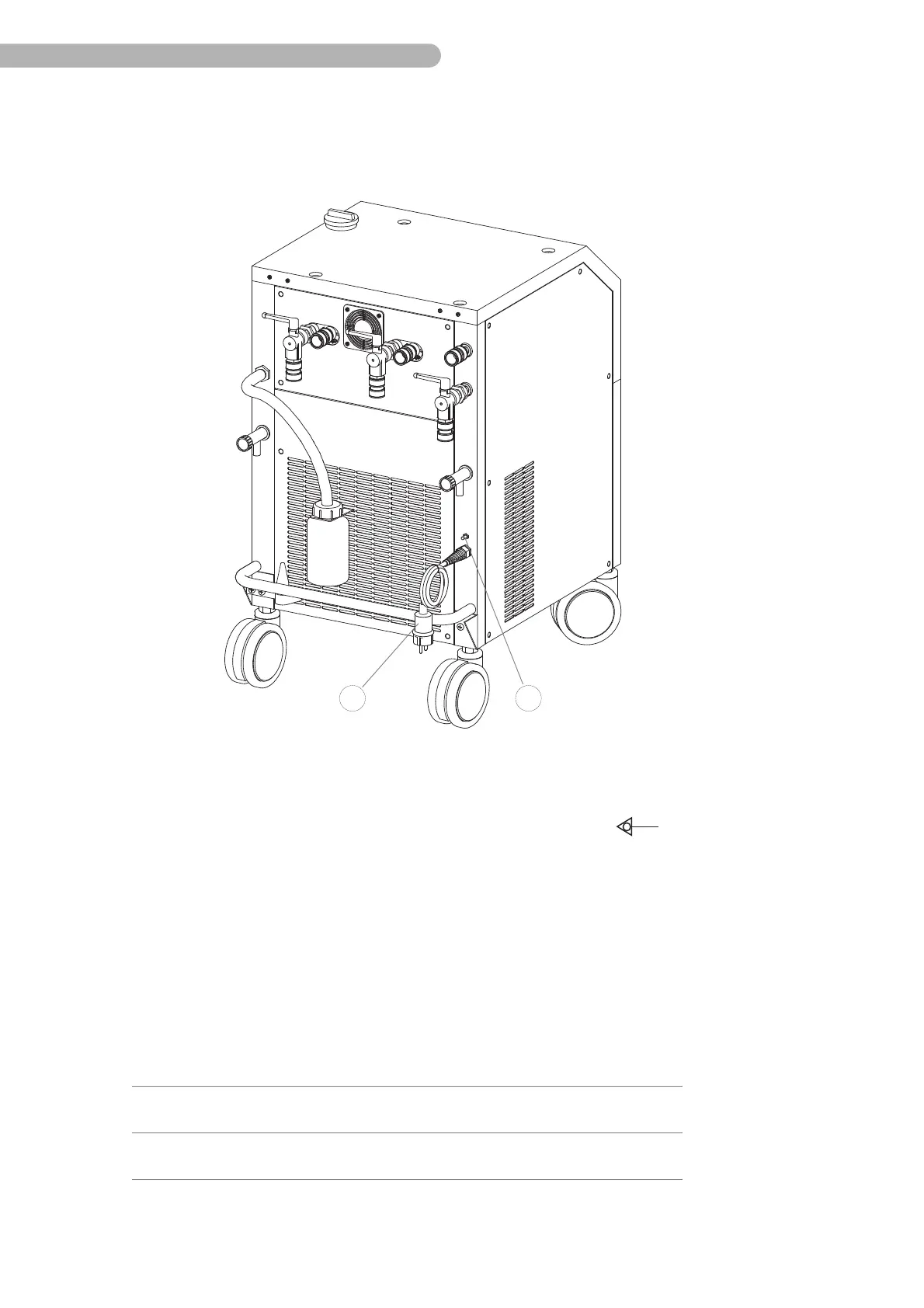

Fig. 10: Connection to the power supply
!
The heater-cooler requires an AC line rated at 16 A. Ideally, the heater-cooler should be connected to a
separate dedicated AC-line.
◗ Connect the equipotential equalization cable to the potential equalization point 17 of the
heater-cooler.
◗ Connect the other end to the potential equalization point at the operating room’s central ground.
◗ Check if the voltage present in the OR correlates with the specifications indicated on the ID label
attached at the rear of the device before connecting the unit to AC power.
◗ Connect the AC-cable 18 to an appropriate outlet.
Note (during operation):
The following applies when AC power is available again after a mains power failure:
Duration of power failure
< 10 sec
(less than 10 seconds)
➜ pumps restart automatically
> 10 sec
(longer than 10 seconds)
➜ pumps have to be started manually
