Heater-Cooler System 3T • Installation
4.2 CP_IFU_16-XX-XX_USA_015
4.2 Performing the installation
4.2.1 Placing the heater-cooler

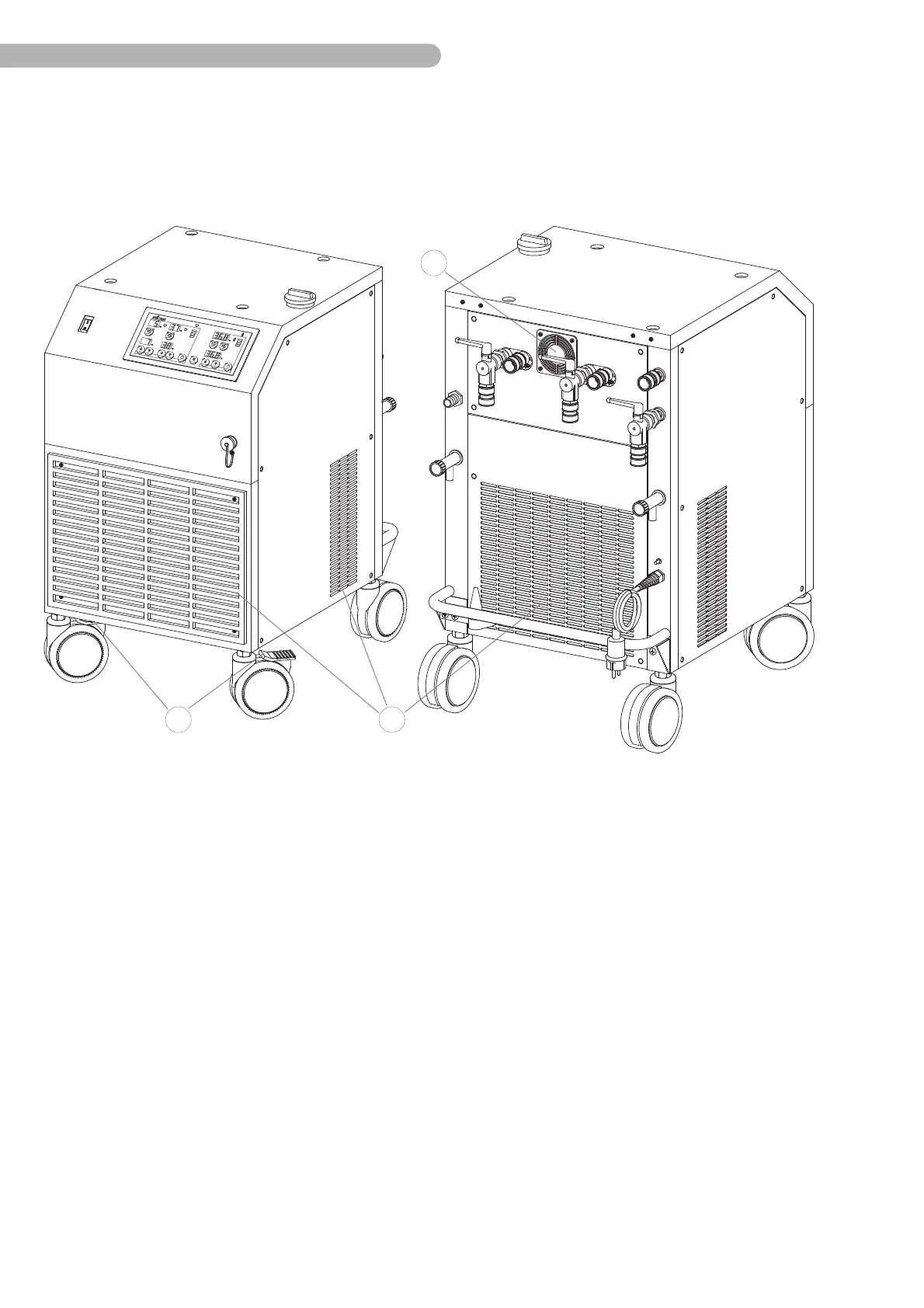

Fig. 3: Placing the heater-cooler
◗ Place the heater-cooler on even floors only.
◗ Lock the brakes (at the front castors 19), after having placed the heater-cooler.
!
◗ Ensure that the ventilation grill 16 and the fan 15 are not covered and the heater-cooler is placed at
a sufficient distance from the walls (about 70 cm / 2.5 ft.) and other devices.
◗ In order to avoid disturbances in the laminar flow area of the operating room, make sure that the
heater-cooler is placed in such a way that the exhaust flow is not directed towards the operating
field, but towards the exhaust vent system.
◗ To minimize noise exposure and avoid disturbing the air flow in the operating room, the system can
be operated in an adjoining room provided that the technical construction allows for this setup. In
this case, the system can be controlled via the HLM system panel. The length of the tubing between
the heater-cooler and heat exchangers and the heating blanket must not exceed 5 m (16.4 ft).
