Heater-Cooler System 3T • Installation
4.6 CP_IFU_16-XX-XX_USA_015
Overview connecting additional devices to the Heater-Cooler System 3T

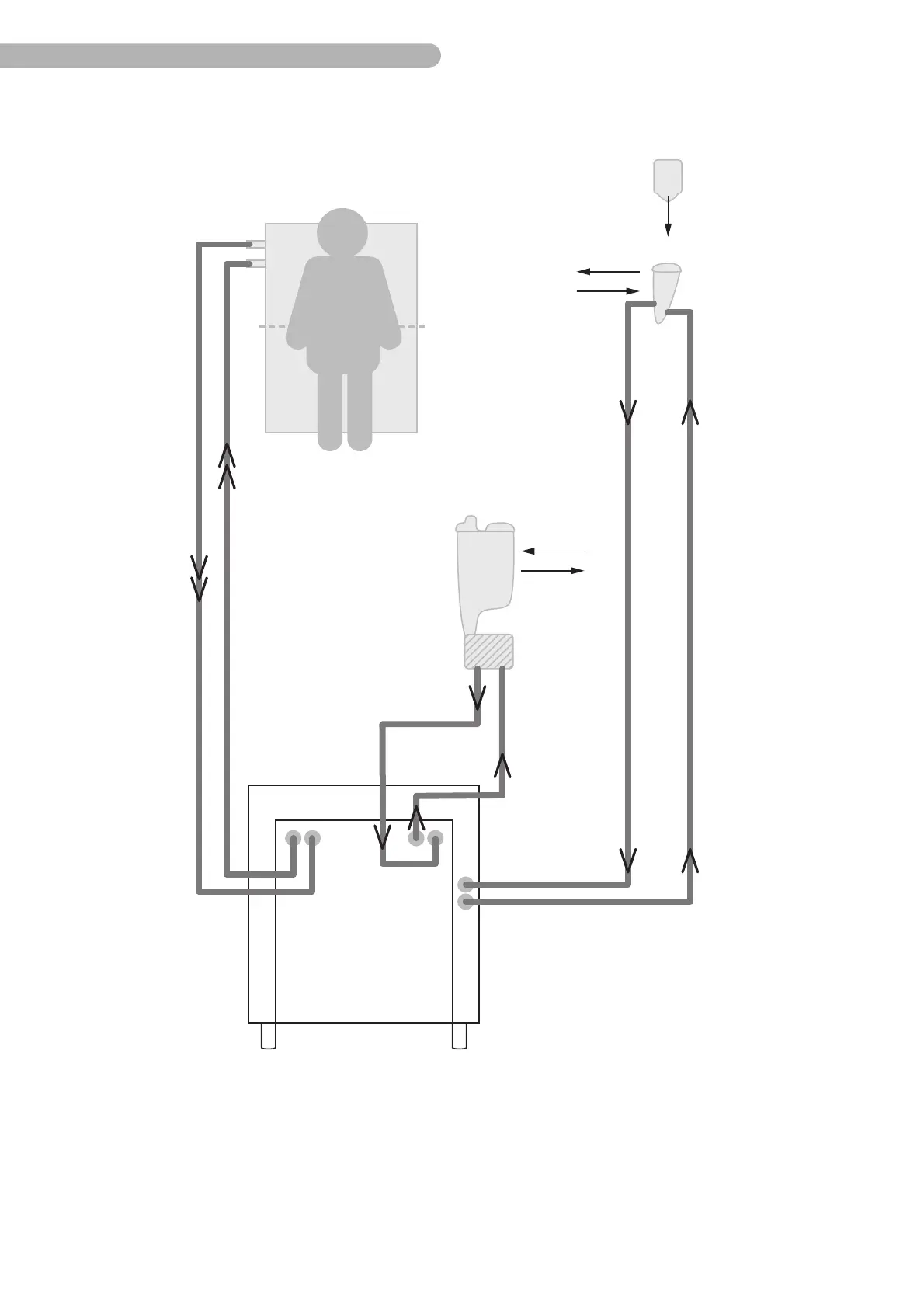

Fig. 7: Overview connecting additional devices
All components used in conjunction with the Heater-Cooler System 3T (please see the above overview)
have been tested and determined safe and effective to the extent possible.
Please also see chap. 7.4 on page 7.6 for information about safe usage of the disposables.
Connection
cardioplegia circuit
Connection
patient circuit 2
Heating/cooling blankets
Rear view
Heater-Cooler System 3T
Connection
patient circuit 1
Oxygenator
Oxygenator
heat exchanger
Cardioplegia
heat exchanger
Cardioplegic
solution
Patient
Patient
