Sound Devices 833 User Manual

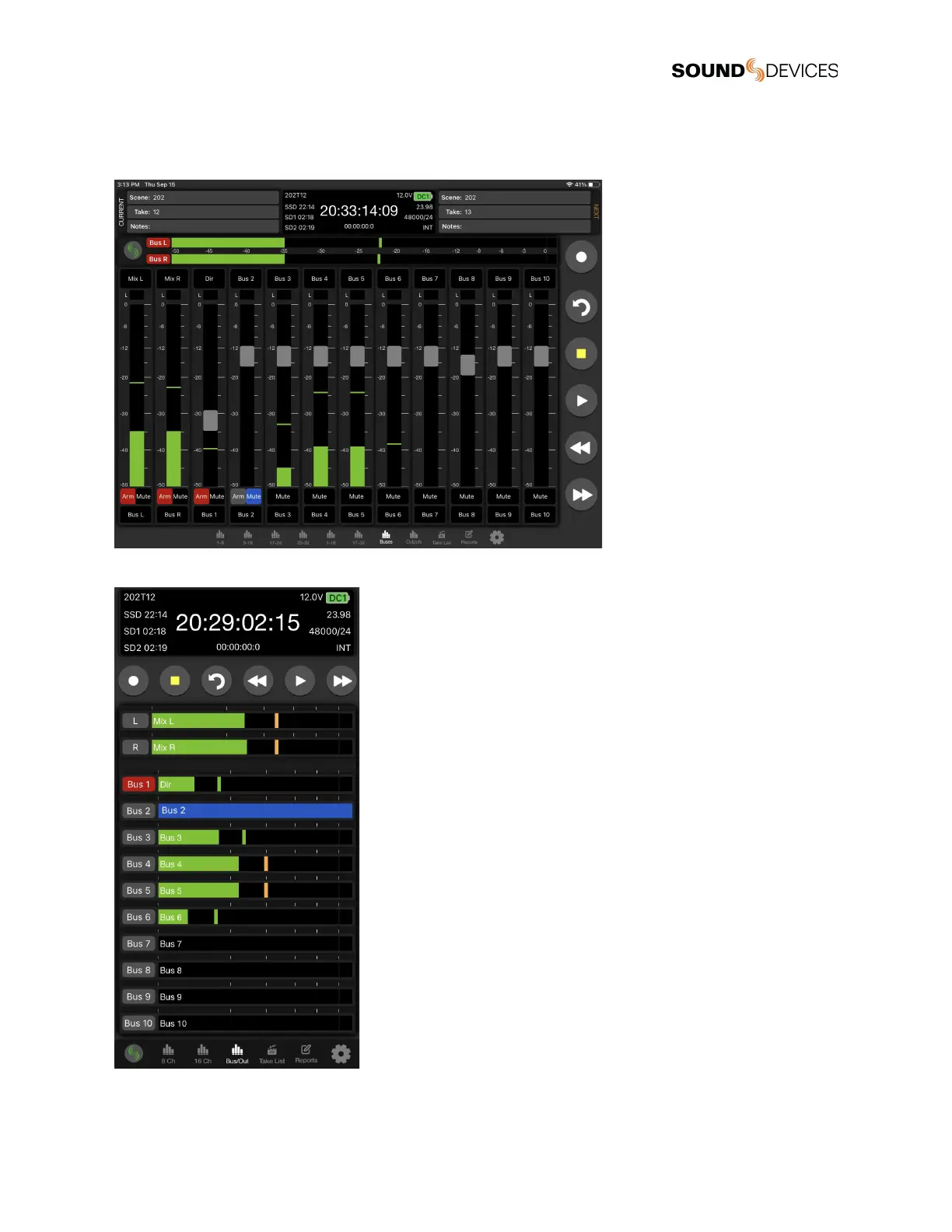

Bus Meters View
The Bus Meters view is similar to the Channel Meters view except that it displays metering and control for buses.
To access on a tablet, tap the Buses Tab. To access on a phone, tap the Bus/Out Tab
833 User Guide 100

Sound Devices 833 Specifications

General

Number of Channels	8
Mic Inputs	6
Main Outputs	2
Aux Outputs	4
Headphone Output	1
Bit Depth	24-bit
Timecode	Yes
Dynamic Range	120 dB
Microphone Preamps	6
Analog Outputs	4
Type	Portable Mixer-Recorder
Line Inputs	6
AES Inputs	2
Sampling Rate	up to 192 kHz
Recording Media	SD, SDHC, SDXC
Power	Battery or External DC
Frequency Response	10 Hz to 80 kHz
THD+N	0.005%
Digital Outputs	2
