Sound Devices 833 User Manual

The 833 +4 Plugin
The 833 +4 Plugin adds four fully featured ISO channels/record tracks, turning your 833 into a 12 channel, 16 track mixer-recorder.
Channels 9-12 setup screens are accessed via Menu>Channels 7-12. All features of Channels 1-8 are available on Channels 9-12.
When the +4 Plugin is installed, various menus, UI elements, and functions are updated to support channels 9-12.

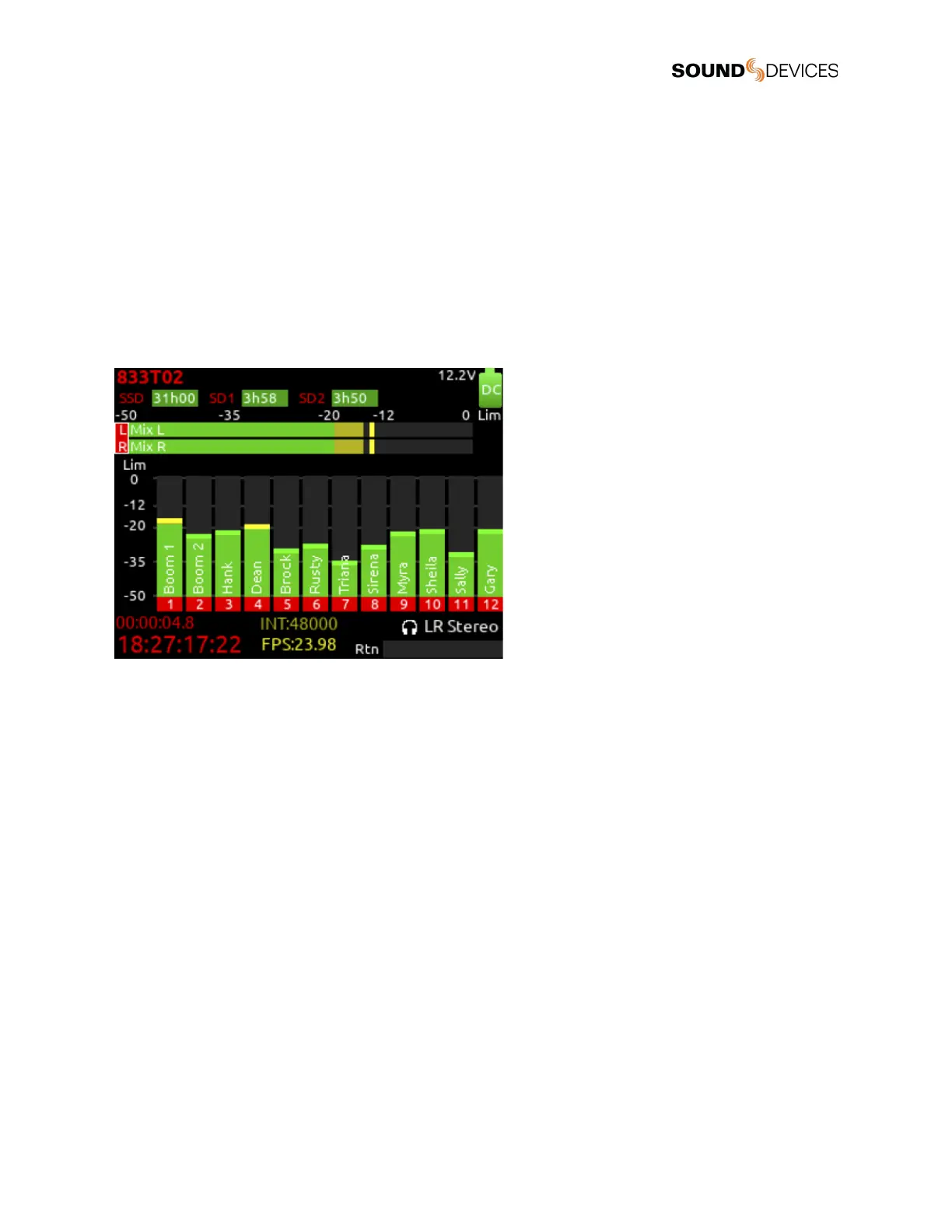

● Meter View option LR, 1-12
● Routing menus for Channel Grouping, Buses, Outputs, Automixer, and Noise Suppression (if NoiseAssist or CEDAR sdnx
Plugin is installed)
● SD-Remote offers full support of metering and control of channels 9-12
● External Controllers offer full support of channels 9-12
● Ch 9-12 Trim/PFL (Latch) options added to Toggle Switch Actions: Mic, Select + Mic, HP + Mic, *, **, Rtn, Select + Rtn,
HP + Rtn, Fav, Select + Fav, HP + Fav
833 User Guide 73

Sound Devices 833 Specifications

General

Number of Channels	8
Mic Inputs	6
Main Outputs	2
Aux Outputs	4
Headphone Output	1
Bit Depth	24-bit
Timecode	Yes
Dynamic Range	120 dB
Microphone Preamps	6
Analog Outputs	4
Type	Portable Mixer-Recorder
Line Inputs	6
AES Inputs	2
Sampling Rate	up to 192 kHz
Recording Media	SD, SDHC, SDXC
Power	Battery or External DC
Frequency Response	10 Hz to 80 kHz
THD+N	0.005%
Digital Outputs	2
