Panel Views

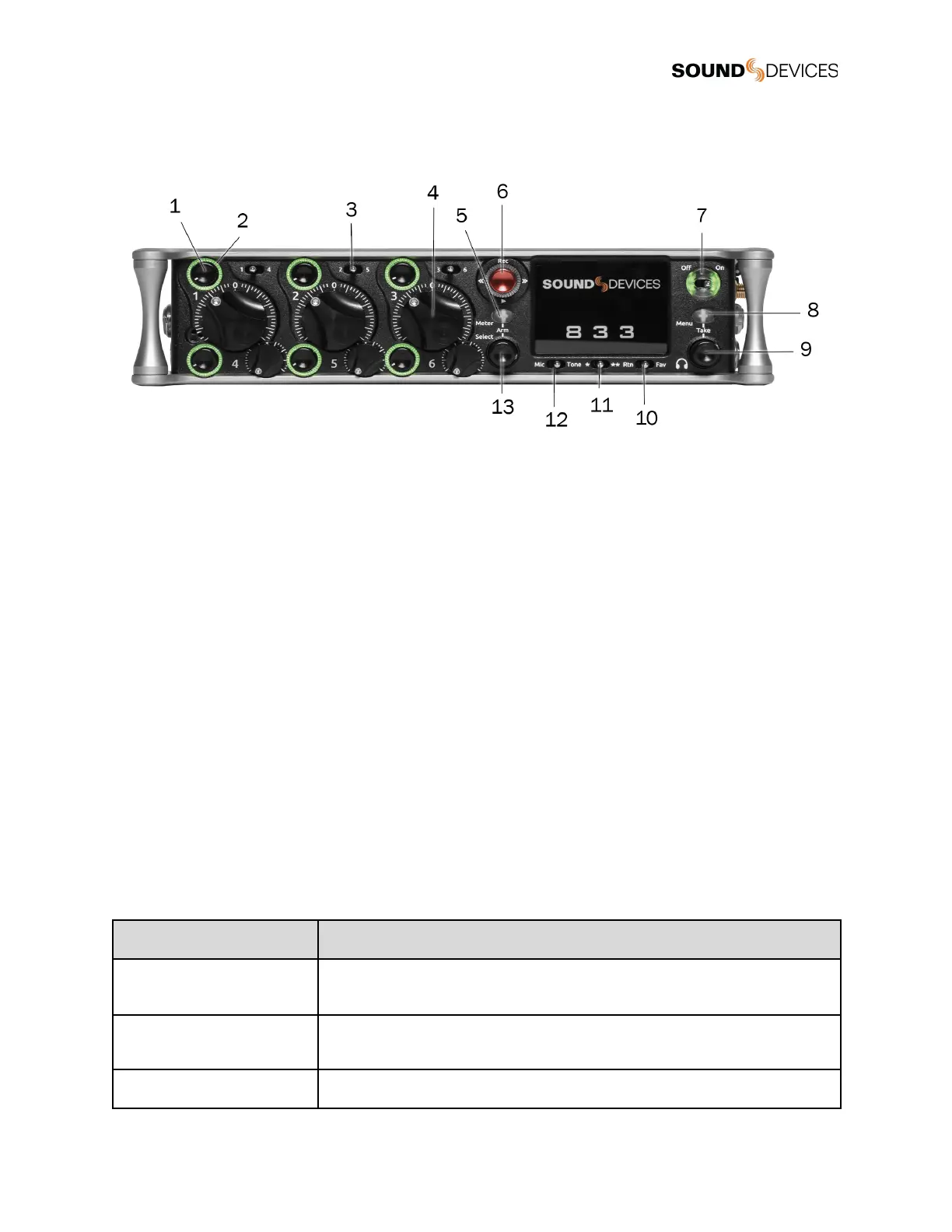

Front Panel
1: Channel Trim
Turns the channel on/off and sets the input gain for the channel. To conserve power, turn off unused channels by rotating channel
trim fully counter-clockwise. Channel 7-8 trims are accessible via the Channels 7-8 menu or using */** + PFL switch shortcuts. Use
Toggle Switch Actions to set the Select and /or HP knobs as trims for Ch 7,8.
2: Channel LED Ring
Provides visual indication of channel signal condition, solo and mute, and whether a channel is on or off.
3: PFL Switch
Pre/Post Fade Listen selects the channel in the headphones for Pre/Post Fade Listen while simultaneously entering the channel
screen. Also used for accessing virtual keyboard for channel naming and various shortcuts. Channel 9-10 PFLs are accessible via
the Channels 9-10 menu or using */** + PFL switch shortcuts. Use Toggle Switch Actions to set the Select and /or HP knobs as
PFLs for Ch 9,10.
4: Channel Fader
Controls the audio level of the channel as it contributes to the L/R mix and any destinations selected in routing as “Post”. Channel
7-8 faders are accessible via the Channels 7-8 menu or using */** + PFL switch shortcuts. Use Toggle Switch Actions to set the
Select and /or HP knobs as faders for Ch 7,8.
5: Meter Button
Push to view and select various metering presets. Used with Select knob. Press again to return to Home Screen. Push with channel
Select switched 1-6 for shortcut to Meters Preset 1-6. Push and rotate HP knob to zoom meter scale. Push and Push HP knob to
access Receiver Overview screen if a SuperSlot accessory is connected.
6: Transport Controls
A joystick (with its illuminated LED ring) on the front panel is used to perform various transport control functions. (See table). The
ring LED will flash orange indicating post roll while writing to media.
Push up the Transport control to begin recording a new file. The LED ring illuminates red
while recording is underway.
Press in the Transport control to stop recording or playback. While in standby, press and
hold to display next take name.
Push down on the Transport control to begin playback of the last file recorded or file
