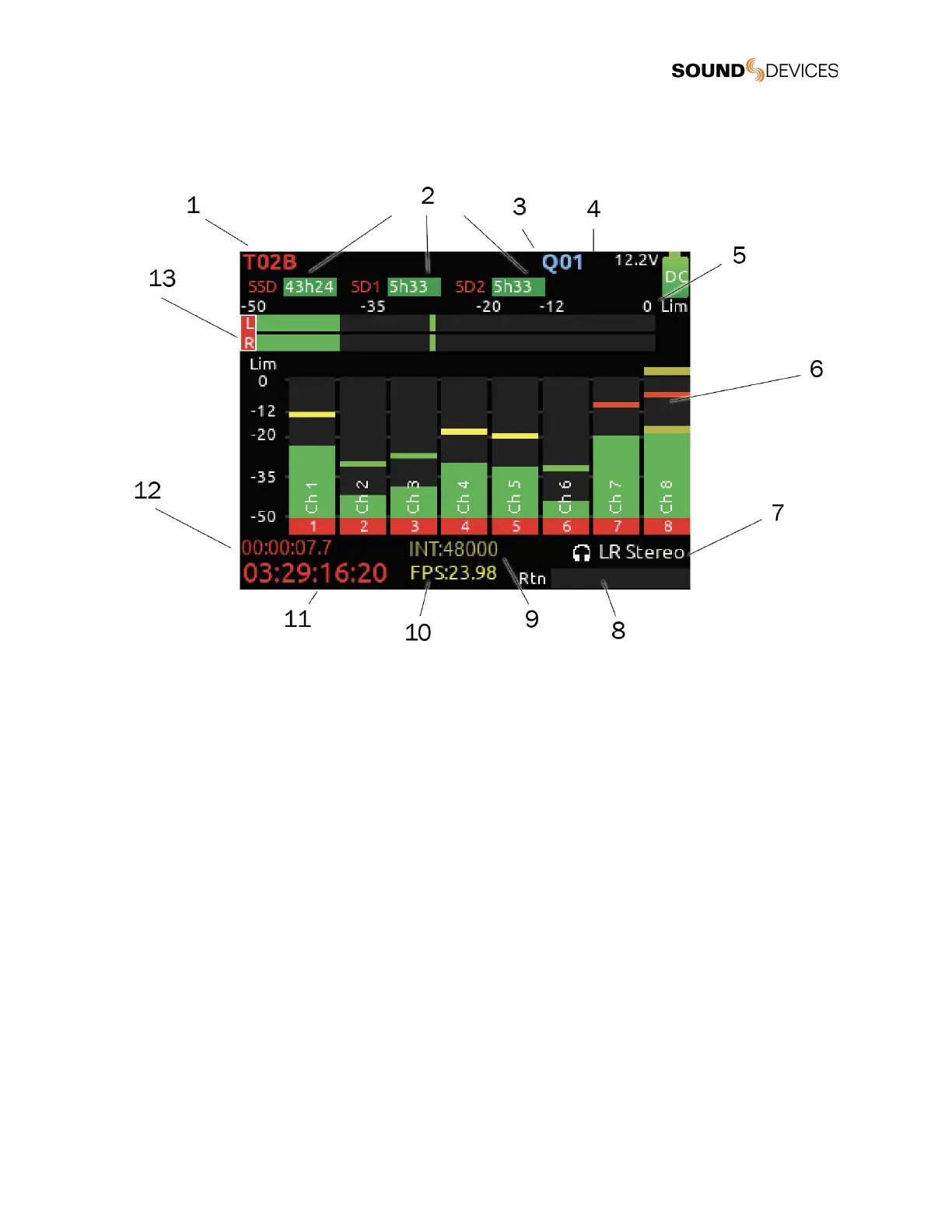

Home Screen
1: Current Take Name
Shows the filename of the currently-selected take.
2: SSD, SD1, SD2
Indicates the amount of recording time available based on current track count, sample rate, and media routing. The internal SSD
drive has a capacity of 256 GB.
3: Q-mark
Indicates Q-mark number.
4: Smart Battery Telemetry
Indicates time remaining and percent remaining of Smart Battery life. Other power sources will show voltage.
5: Power Icon
Indicates approximate voltage condition and current power source being used. When Smart Batteries are in use the remaining
percentage and time is displayed.
6: Individual Channel Meters With Arm/Disarm Indication
Indicates the peak and VU audio levels of the individual channel. May be Pre- or Post- fade depending on Channel to Iso routing.
The isolated track indicators turn red to indicate that the tracks are armed for record.
7: Selected Headphone Preset
Indicates the currently-selected headphone preset.
8: Return Meter
Indicates audio level for the return.
9 & 10: Sample Rate / Frame Rate/ Temporary Level Display
To Next Page
