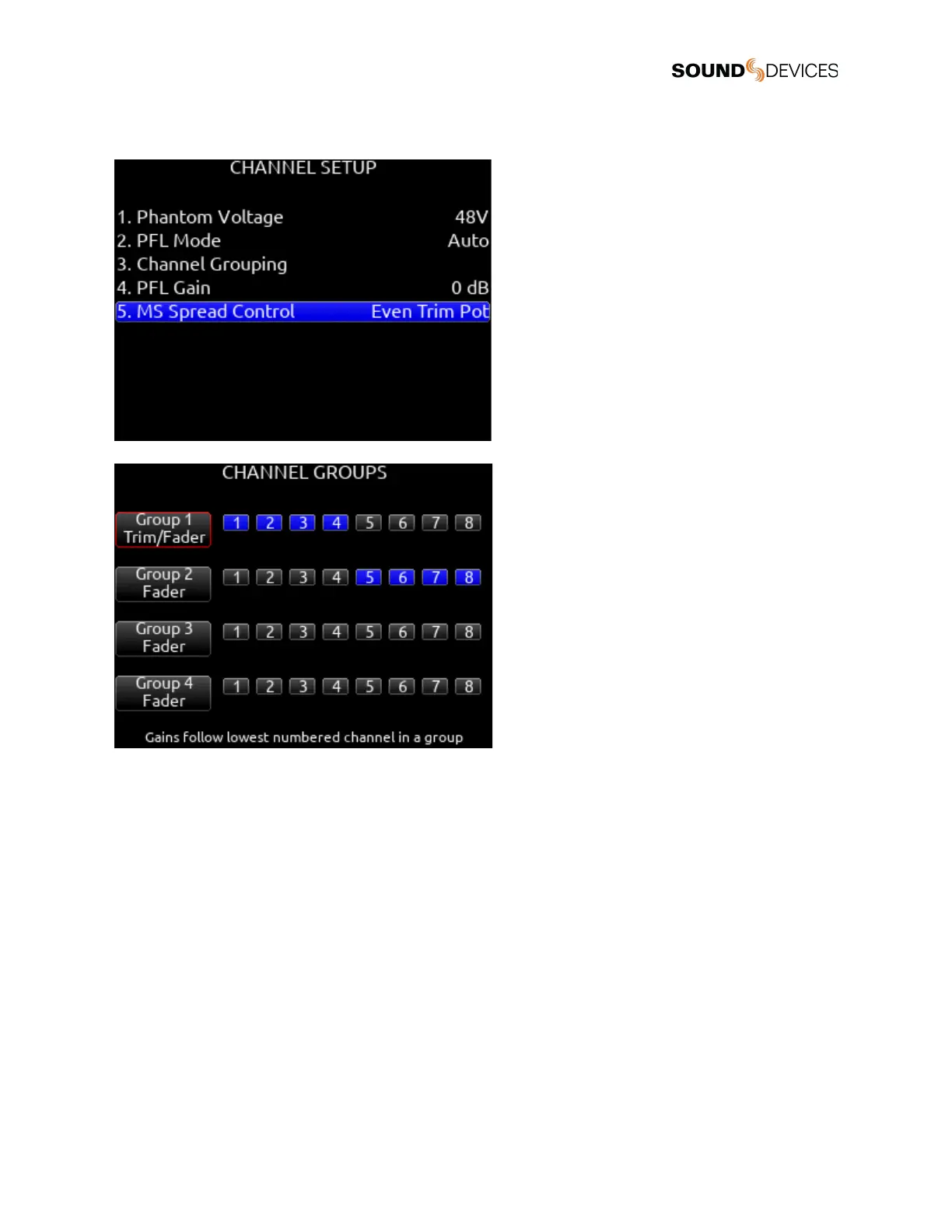

Channel Setup
1. Phantom Voltage
Selects phantom power voltage for all inputs. [12 V, 48 V*].
2. PFL Mode
Selects the source of the PFL feed. [Auto* Pre-fade, Post-fade] Auto = pre-fade if channel is routed to ISO track
pre-fade, post-fade if channel is routed to the ISO track post-fade.
3. Channel Grouping
Channel Groups can be set to Off, Trim/Fader, or Fader. Trim/Fader groups allow the smallest channel number in the
group to control trim, fader, record arming, limiters, and mutes of all channels in the group. Fader groups act just like
Trim/Fader groups but trims remain independent per channel. Groups that are Off retain their channel routings but settings
and levels are independent per channel. This allows for quick enabling or disabling of a group without losing group
routings. Trims can only be grouped when all channels of the group share the same gain range. Gain ranges depend on
input type routed to a channel. See Channel Screen>Channel Trim Value for more detail. Four channel groups are
possible; channels grouped can only be assigned to one group.
a. Group 1 [1-8]
b. Group 2 [1-8]
c. Group 3 [1-8]
d. Group 4 [1-8]
Note: When the optional +4 Plugin is installed, channels 1-12 are available for grouping.
