Sound Devices 833 User Manual

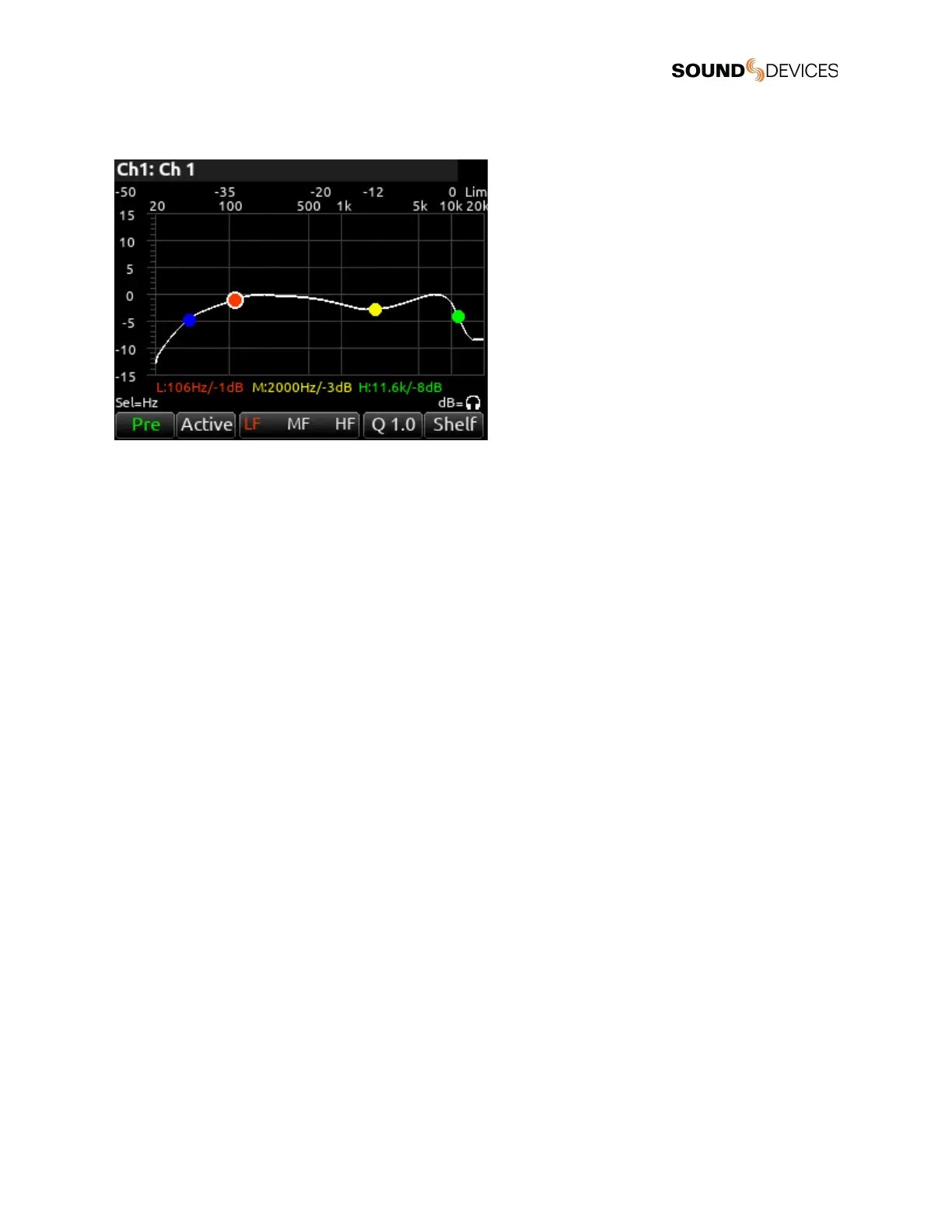

Channel EQ
Mic
Selects EQ state and insert location. Indicates where the EQ is inserted into the audio chain. Pre-fade or Post-fade [Off*, Pre, Post].
EQ will apply to bus sends only when applied Pre-fade.
Tone
Selects EQ band mode [Bypass*, Active]
*/**
Selects EQ band. Use Select knob to adjust frequency and HP knob to adjust gain of the filter. [LF*, MF, HF] All filters are sweepable
from 20 Hz to 20 kHz.
RTN
Selects Q (bandwidth) of selected band [0.5 - 10] (use Sel or HP knob to adjust).
FAV
Toggles filter type of LF and HF band [Peak, Shelf*].
The Low Cut value is represented by the leftmost value on the graph and is adjustable in the channel screen.
833 User Guide 19

Sound Devices 833 Specifications

General

Number of Channels	8
Mic Inputs	6
Main Outputs	2
Aux Outputs	4
Headphone Output	1
Bit Depth	24-bit
Timecode	Yes
Dynamic Range	120 dB
Microphone Preamps	6
Analog Outputs	4
Type	Portable Mixer-Recorder
Line Inputs	6
AES Inputs	2
Sampling Rate	up to 192 kHz
Recording Media	SD, SDHC, SDXC
Power	Battery or External DC
Frequency Response	10 Hz to 80 kHz
THD+N	0.005%
Digital Outputs	2
