Sound Devices 833 User Manual

There are two independent Dugan processing groups, Bus L and Bus R. Channels 1-8 can be routed to Bus L, Bus R, both equally
(Center), or both unequally (L or R pan increments) by using a channel’s pan control.

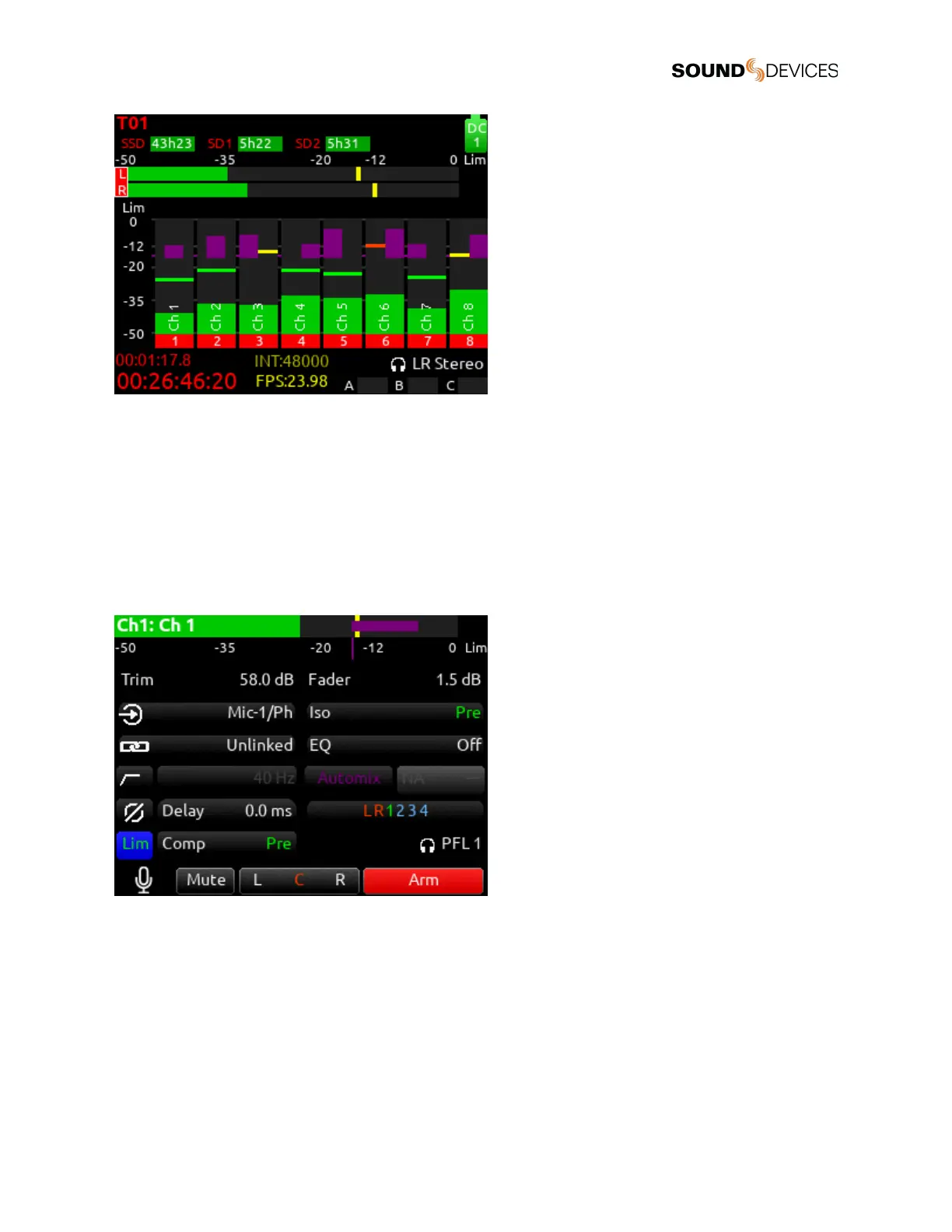

To show which Dugan group the channel is in, the Dugan gain display bar is left-aligned for fully L, right-aligned for fully R and
center-aligned for any other pan value. When a channel is routed to both Dugan groups (Bus L and R), the center-aligned meter bar
shows the least attenuated value.
The Channel Screen shows the Dugan meter overlaid within the horizontal channel meter. The Dugan meter scale and indication is
the same as in the main meter screen.
The ring LEDs for ch 1-6 show Dugan gain for ch 1-6. The ring LEDs begin to glow purple at 15 dB attenuation and increase in
intensity at 0 dB attenuation.
MixAssist Mode
833 User Guide 35

Sound Devices 833 Specifications

General

Number of Channels	8
Mic Inputs	6
Main Outputs	2
Aux Outputs	4
Headphone Output	1
Bit Depth	24-bit
Timecode	Yes
Dynamic Range	120 dB
Microphone Preamps	6
Analog Outputs	4
Type	Portable Mixer-Recorder
Line Inputs	6
AES Inputs	2
Sampling Rate	up to 192 kHz
Recording Media	SD, SDHC, SDXC
Power	Battery or External DC
Frequency Response	10 Hz to 80 kHz
THD+N	0.005%
Digital Outputs	2
