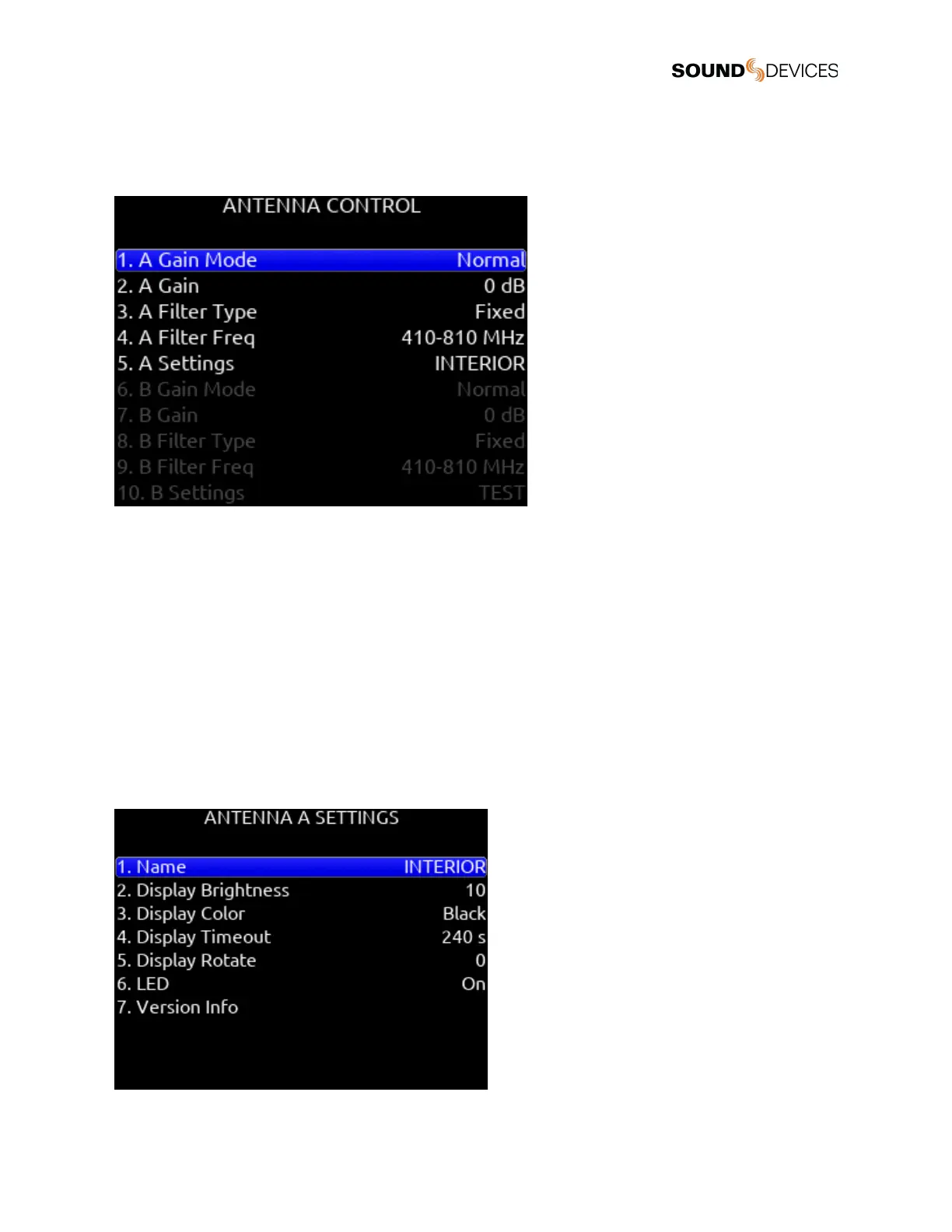

Remote Antenna Setup
Configures the various settings for connected remote (smart) antennas. The menu is grayed out if Remote Antenna Control is Off
and/or no remote antenna is detected. A remote antenna requires bias power. The SL-2 supports the Wisycom LFA smart antenna
and BFA smart filter.
Antenna A/B Gain
Sets gain of Antenna A or B in 1 dB steps. [Off, Bypass, -12 to 27dB]
Antenna A/B Filter Type
Sets the filter type of Antenna A or B. [Tunable, NB, or WB] (Selected in Freq field: 410-810, 410-700, 410-600, 470-810, 470-700,
470-600, 510-810, 510-700, 510-600); NB (940-960MHz, freq is fixed at 940-960 and cannot be changed)]
Antenna Frequency
Sets the filter freq of Antenna A or B. Frequencies available depend on the Wisycom LFA/BFA model, F1, F2, F3, or F6. Please refer
to the Wisycom documentation for filter frequency detailed information. [When Filter is set to NB, Frequency is fixed at 940-960 and
cannot be changed. When Filter is set to WB, Freq can be set to 410-810, 410-700, 410-600, 470-810, 470-700, 470-600, 510-810,
510-700, 510-600. When Filter is set to Tunable, Filter Frequency can be adjusted in 40 MHz blocks from 410-450 to 690-730 in 1
MHz steps.]
Antenna A/B Settings
Provides access to additional Antenna A or B settings.
