Scorpio User Guide
11

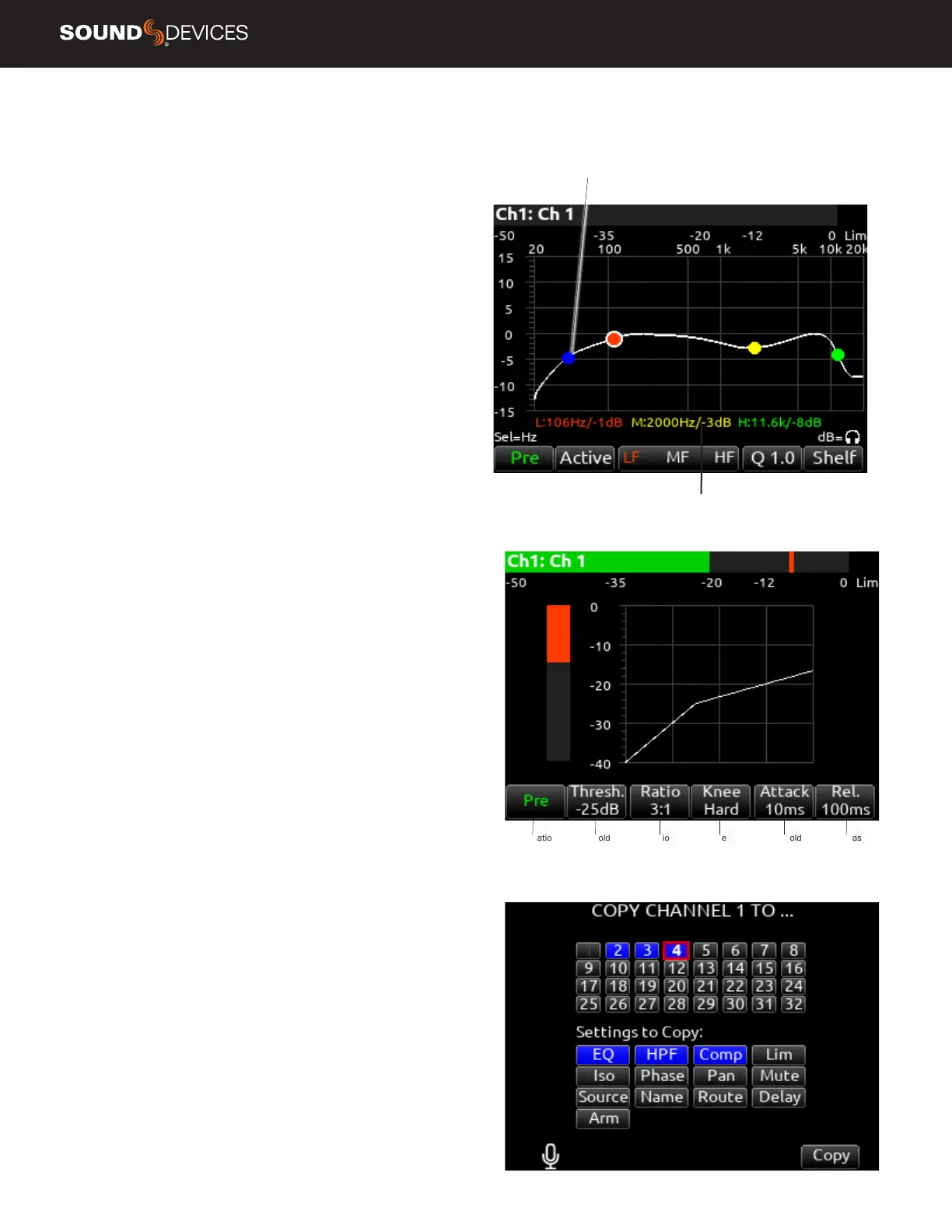

Channel EQ
MIC Selects EQ state and insert location. Indicates where the EQ is
inserted into the audio chain. Pre-fade or Post-fade [Off*, Pre, Post].
EQ will apply to bus sends only when applied Pre-fade.
TONE Selects EQ band mode [Bypass*, Active]
*/** Selects EQ band. Use Select encoder to adjust frequency and
HP encoder to adjust gain of the lter. [LF*, MF, HF] All lters are
sweepable from 20 Hz to 20 kHz.
RTN Selects Q (bandwidth) of selected band [0.5 - 10] (use Sel or HP
knob to adjust).
FAV Toggles lter type of LF and HF band [Peak, Shelf*].
The Low Cut value is represented by the leftmost value on the graph
and is adjustable in the channel screen.
Channel Compression
MIC Selects Compression state and insert location. Indicates where
the compression is inserted into the audio chain. Pre-fade or Post-
fade [Off*, Pre, Post].
Compression will apply to bus sends only when applied Pre-fade.
TONE Selects threshold [0 to -40 dB]
* Selects Ratio. [1.0:1 to 20:1 in 0.1 steps]
** Selects Knee. [Hard, Soft]
RTN Selects Attack time [1 to 200 ms in 1 ms steps]
FAV Selects Release time [50 to 200 ms in 1 ms steps, 200 to 1000
ms in 10 ms steps]
Note: Compression can also be applied to Buses.
Channel Copy
Channel Copy provides a mechanism for quickly copying multiple
settings from one channel to other channels.
Select the Channel Copy icon to access the Copy Channel screen.
Choose which channels to apply the copied settings. Multiple des-
tination channels can be selected. Then choose which settings to
copy. Select any combination from EQ, HPF, Compressor, Limiter, Iso,
Phase, Pan, Mute, Source, Name, Routing, Delay, and Arm.
To copy, toggle the Fav switch.
Note: When copying from channels 17-32 EQ, Phase, and Delay are
grayed out and not selectable. These functions are not available on
Channels 17-32.
frequency and
gain indication
Low Cut lter value
Insert location Threshold Ratio Knee Threshold Release
