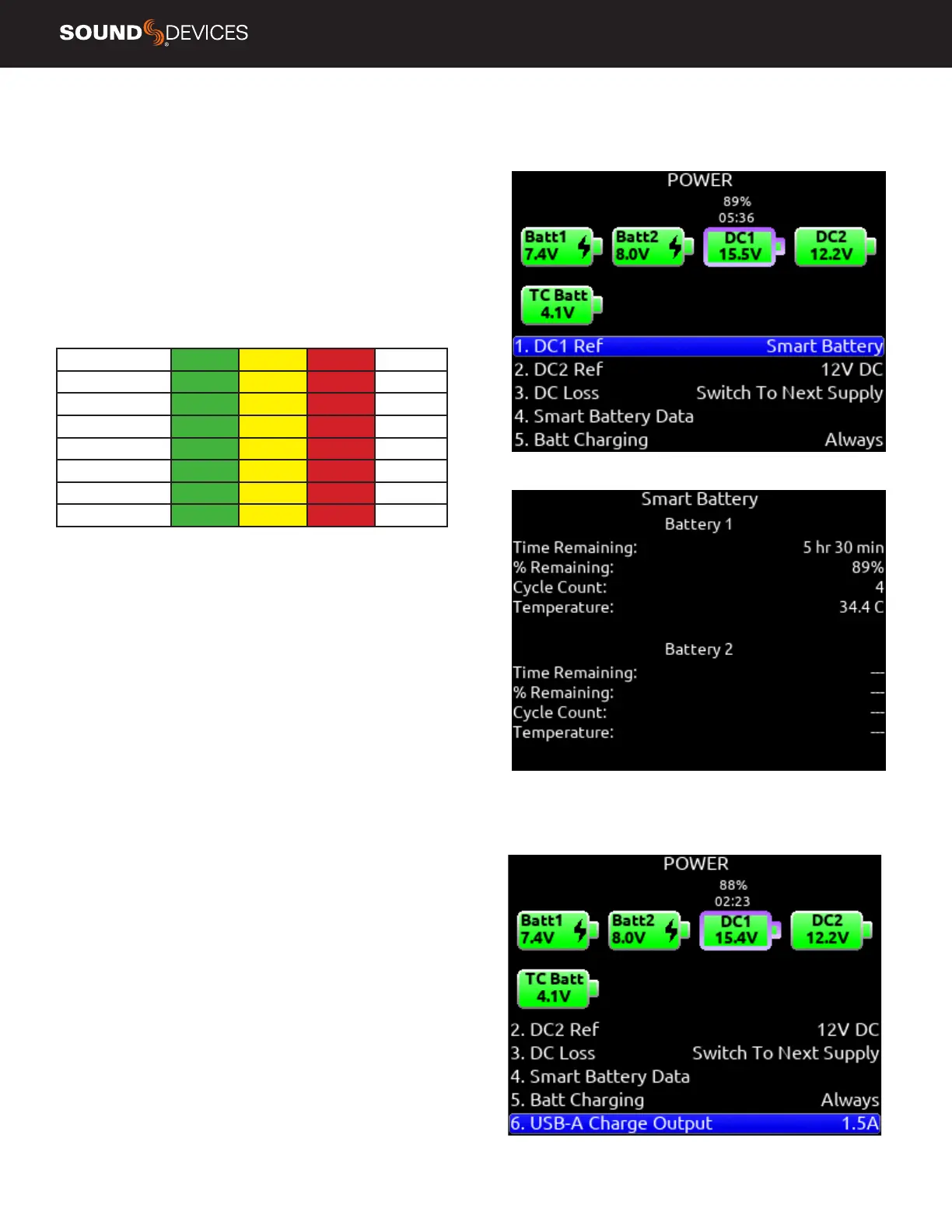

Power
Allows conguration of various power settings.
POWER SOURCE ICONS (Batt1, Batt2, DC1, DC2, TC Batt,) Indi-
cates the power condition of each power source. [Green = normal,
yellow = below normal, red = warning]
1. DC1 REF Allows proper power level indicator calibration based
upon the type of DC power source used. [12V DC*, 14 V Li-Ion, 12 V
Lead Acid, Full Range (10-18 V), Smart Battery], NP1 Data.
2. DC2 REF Allows proper power level indicator calibration based
upon the type of DC power source used. [12V DC*, 14 V Li-Ion, 12 V
Lead Acid, Full Range (10-18 V), Smart Battery], NP1 Data.
Power Source Good Marginal Low Shutdown
DC 12 V 12.50 V 11.00 V 10.10 V 9.50 V
Li-Ion 14 V 16.30 V 13.90 V 13.60 V 11.50 V
Lead Acid 12 V 14.00 V 11.50 V 10.30 V 10.20 V
Full Range 18.00 V 12.00 V 10.20 V 9.50 V
Smart Battery 16.00 V 13.30 V 13.00 V 12.70 V
NP1 Data Battery 16.30 V 13.90 V 13.60 V 11.50 V
Li-Ion L-Mounts 8.30 V 7.10 V 6.95 V 6.80 V
3. DC LOSS Selects how the unit should operate when DC power is
lost. [Switch to Next Supply*, Turn Off]
4. SMART BATTERY DATA Displays Time Remaining, Percent Re-
maining, Cycle Count, and Temperature of Smart Battery 1 and Smart
Battery 2.
Note: This menu is only displayed when a Smart Battery is connected
4. BATT CHARGING Selects battery charging mode when connected
to an external DC source. [Disabled, When Power On, When Power Off,
Always]
Battery charging not available when the SL-6 is connected.
5. USB-A CHARGE PORT Allows charging of compatible external
USB devices such as Android tablets. Set to 500 mA or 1.5 A
To Next Page
