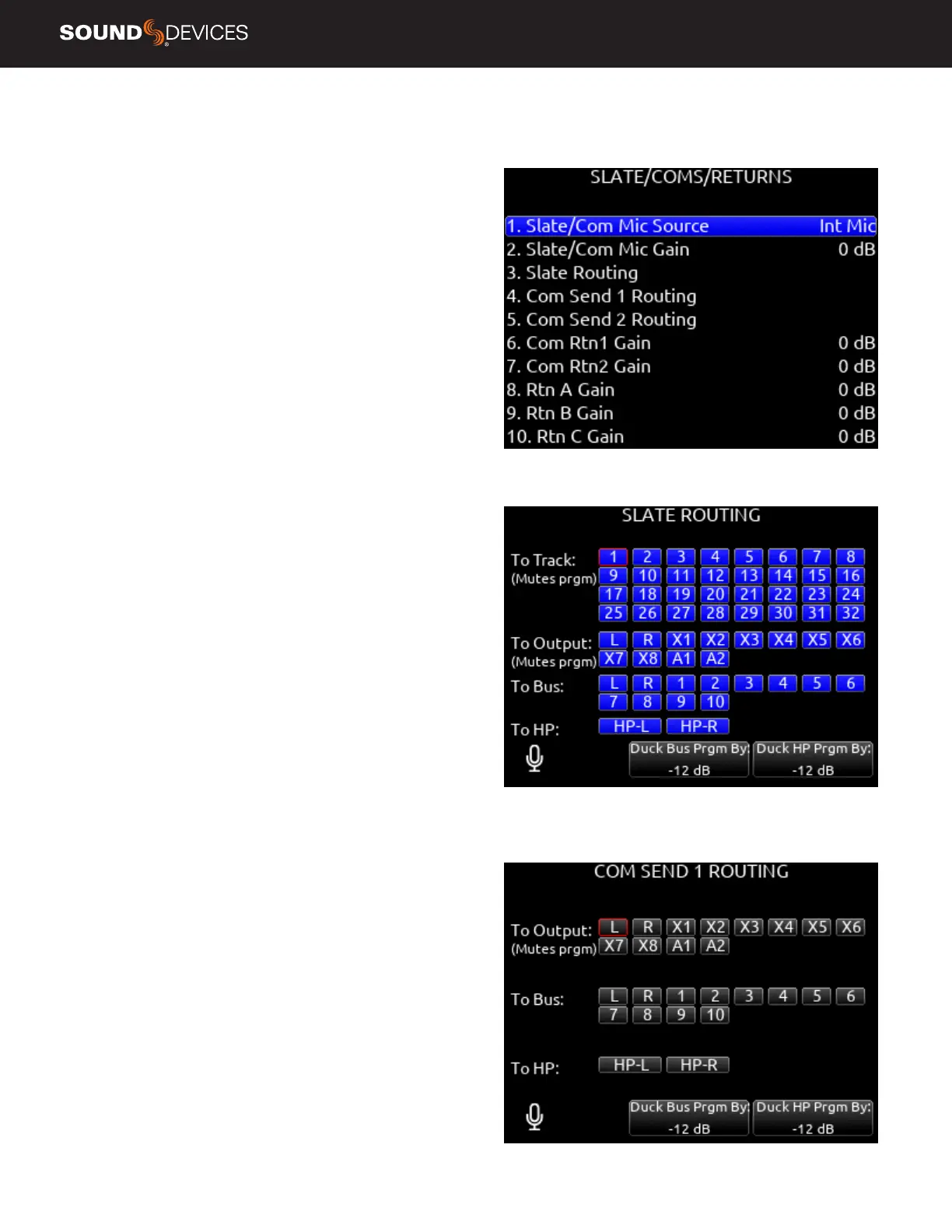

SLATE/COM MIC SOURCE Selects the slate and com mic source.
[Off, Int Mic*, Ext Mic, Ext 12 V Mic]
SLATE/COM MIC GAIN Selects the gain for the slate/com mic. [-10-
20 dB in 1 dB steps for the internal mic, 0-60 dB in 1 dB steps for the
external mic].
SLATE ROUTING Selects the destination(s) for the slate mic.
a. Track- [1-32]
b. Output- [L,R, X1-X8, A1,A2]
c. Bus- [L,R, 1-10]
d. HP- [HP-L, HP-R]
e. Duck Bus Prgrm By: [0- -40 dB, -inf]
f. Duck HP Prgrm By: [0- -40 dB, -inf]
COM SEND 1 ROUTING Selects the destination(s) for Com Send 1.
a. Output- [L,R, X1-X8, A1,A2]
b. Bus- [L,R, X1-X8]
c. HP- [HP-L, HP-R]
d. Duck Bus Prgrm By: [0- -40 dB, -inf]
e. Duck HP Prgrm By: [0- -40 dB, -inf]
COM SEND 2 ROUTING Selects the destination(s) for Com Send 2.
a. Output- [L,R, X1-X8, A1,A2]
b. Bus- [L,R, X1-X8,
c. HP- [HP-L, HP-R]
d. Duck Bus Prgrm By: [0- -40 dB, -inf]
e. Duck HP Prgrm By: [0- -40 dB, -inf]
COM RTN1 GAIN Selects the gain for Com Rtn 1 in 1 dB increments.
[0-30 dB]
COM RTN2 GAIN Selects the gain for Com Rtn 2 in 1 dB increments.
[0-30 dB]
RTN A GAIN Selects the gain for Rtn A in 1 dB increments. [0-30 dB]
RTN B GAIN Selects the gain for Rtn B in 1 dB increments. [0-30 dB]
RTN C GAIN Selects the gain for Rtn C in 1 dB increments. [0-30 dB]
DUCK BUS PROGRAM BY Ducks all audio sent to the bus by a user
dened amount.
DUCK HP PROGRAM BY Ducks all audio sent to headphones by a
user dened amount.
When sending coms or slate signal to outputs the program routed to
that output is replaced by the com or slate signal.
