Scorpio User Guide
3

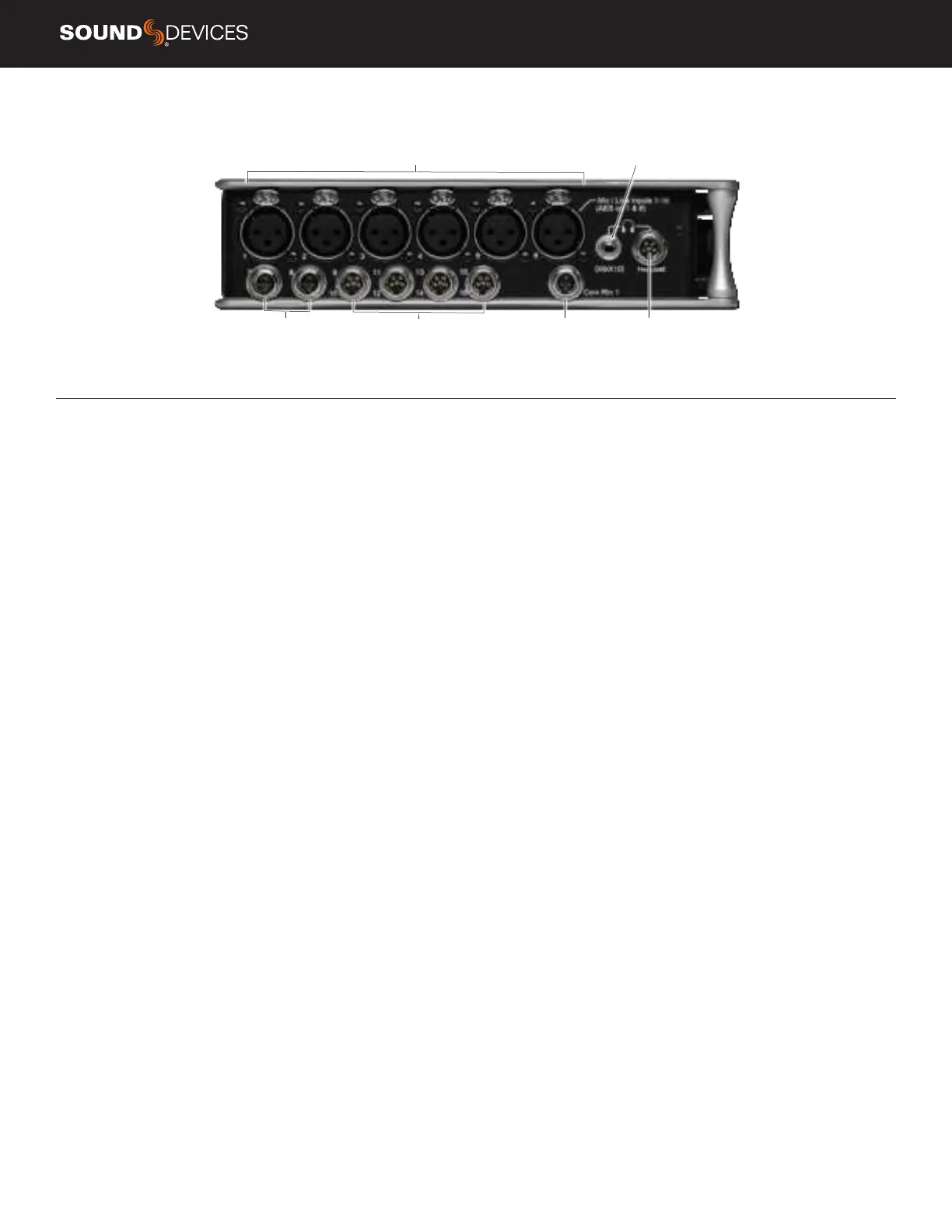

LEFT SIDE PANEL
Mic/Line Inputs 1-6 female XLR jacks
AES3/AES42 on XLR Inputs 1 and 6
Mic/Line Inputs 7-8
TA3 jacks
Com Rtn 1 TA3 jack
Headphone/(X9/X10)
3.5mm jack
Headphone/
Headset/External Slate
Mic TA5 jack
Mic/Line Inputs 9-16
TA5 jacks
INPUTS 1-6 FEMALE XLR JACKS Active-balanced analog micro-
phone or line-level inputs. Inputs 1 and 6 can also accept AES3 or
AES42 signal. [pin-1 = ground, pin-2 = hot (+), and pin-3 = cold (-)]
110 ohm cables should be used for AES3 or AES42 inputs.
MIC/LINE INPUTS 7-8 TA3 JACKS Active-balanced analog
microphone or line-level inputs. [pin-1 = ground, pin-2 = hot (+), pin 3
= cold (-)]
MIC/LINE INPUTS 9-16 TA5 JACKS Active-balanced analog mi-
crophone or line-level inputs. [pin-1 = ground, pin-2 = Ch.1 +, pin-3 =
Ch.1 -, pin-4 = Ch.2 +, pin-5 = Ch. 2 -]
COM RTN 1 TA3 JACK Balanced connection for Com Return 1 audio
input. [pin-1 = Ground, pin-2 = hot (+), pin-3 = cold (-)]
HEADPHONE/(X9/X10) 3.5 MM JACK Unbalanced output and
TRS headphone output.
Warning! This output can drive headphones
to potentially dangerous levels.
Routing determined in the Outputs
menu. [Sleeve = ground, tip = left (X9), ring = right (X10)]
HEADPHONE/HEADSET TA5 JACK Headphone and slate micro-
phone connections [pin-1 = HP right, pin-2 = HP left, pin-3 = ground,
pin-4 = Mic -, pin-5 = Mic+]
Route HP-L and HP-R to X9/X10 to control headphone level with the
headphone knob and to send headphone signal to the TA5 output.
