Scorpio User Guide
14

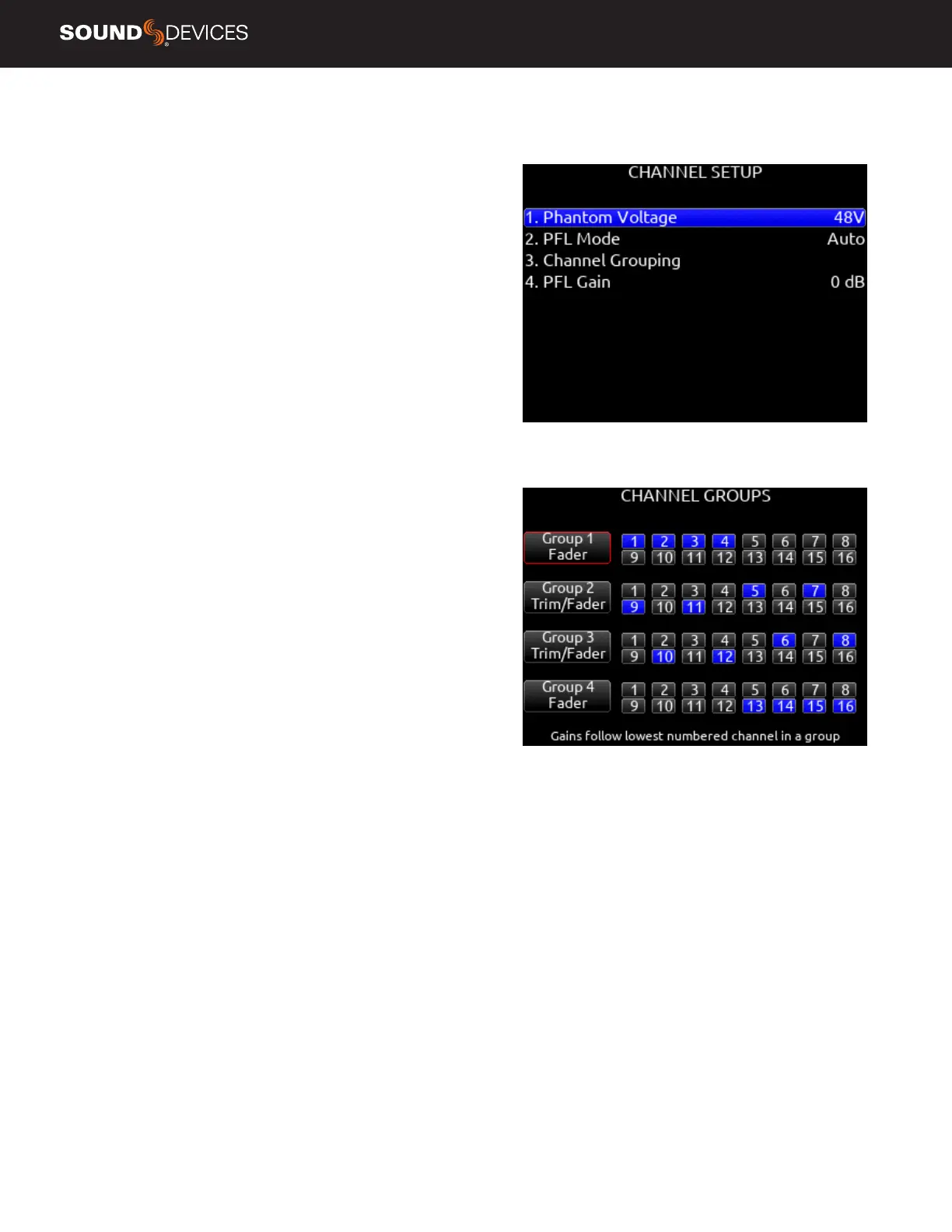

Channel Setup
1. PHANTOM VOLTAGE Selects phantom power voltage for all
inputs. [12 V, 48 V*]
2. PFL MODE Selects the source of the PFL feed. [Auto* Pre-fade,
Post-fade] Auto = pre-fade if channel is routed to ISO track pre-fade,
post-fade if channel is routed to the ISO track post-fade.
3. CHANNEL GROUPING Channel Groups can be set to Off, Trim/
Fader, or Fader. Trim/Fader groups allow the smallest channel num-
ber in the group to control trim, fader, record arming, limiters, and
mutes of all channels in the group. Fader groups act just like Trim/
Fader groups but trims remain independent per channel. Groups
that are Off retain their channel routings but settings and levels are
independent per channel. This allows for quick enabling or disabling
of a group without losing group routings.
Trims can only be grouped when all channels of the group share the
same gain range. Gain ranges depend on input type routed to a chan-
nel. See Channel Screen>Channel Trim Value for more detail.
Four channel groups are possible; channels grouped can only be
assigned to one group.
a. Group 1 [1-16]
b. Group 2 [1-16]
c. Group 3 [1-16]
d. Group 4 [1-16]
4. PFL GAIN A preset amount of gain that is applied to any chan-
nel(s) with active PFL.
Channels 13-32
Provides access to channel screens 13-32.
Access is also possible by using the */** + PFL switch shortcuts:
* + PFL 1-12 = Ch 13-24
** + PFL 1-8 = Ch 25-32
Trims, Faders and PFL’s for channel’s 13 and 14 can be controlled by
a combination of the toggle switches beneath the LCD and the Select
and HP Knobs. Setup in the System>Toggle Switch Action menu.
See the Toggle Switch Action section for information on which of the
following options are available for each toggle switch:
CH 13 OR 14 TRIM/PFL (LATCH) Flick toggle then rotate Select
to adjust ch 13 or 14 trim. Gain values are displayed in the Home
Screen sample rate eld. Press Select to PFL. Flick toggle to cancel
mode.
CH 13 OR 14 FADER /PFL (LATCH) Flick toggle then rotate Select
to adjust ch 13 or 14 fader. Gain values are displayed in the Home
Screen sample rate eld. Flick toggle to cancel mode
CH 13 TRIM/PFL (MOMENT) Hold toggle then rotate Select to ad-
just ch 13 trim. Gain values are displayed in the Home Screen sample
rate eld. Press Select to PFL
CH 14 TRIM/PFL (MOMENT) Hold toggle then rotate HP to adjust
ch 14 trim. Gain values are displayed in the Home Screen sample rate
eld. Press HP to PFL
CH 13 FADER/PFL (MOMENT) Hold toggle then rotate Select to
adjust ch 13 fader. Gain values are displayed in the Home Screen
sample rate eld. Press Select to PFL
CH 14 FADER/PFL (MOMENT) Hold toggle then rotate HP to adjust
ch 14 fader. Gain values are displayed in the Home Screen sample
rate eld. Press HP to PFL
