Scorpio User Guide
4

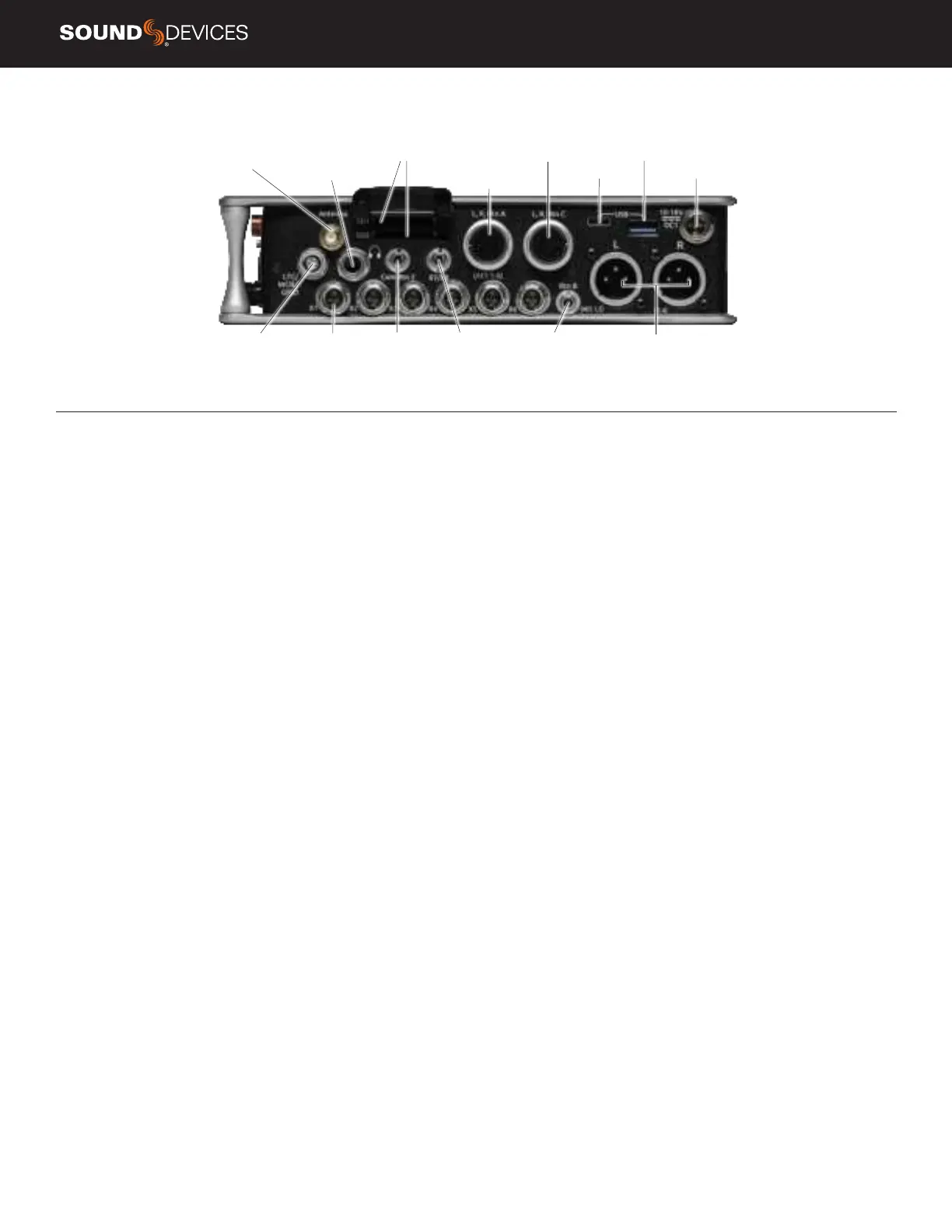

RIGHT SIDE PANEL
SD Card slots 1 & 2
L,R,Rtn A (AES 5-8)
10 Pin jack
L,R,Rtn C 10 pin jack
USB C Port
USB A port
10-18 V DC1 TA4 jack
LTC/Wordclock/5-pin
LEMO jack
1/4” headphone jack
Com Rtn 2
3.5 mm jack
X7/X8
3.5 mm jack
Antenna SMA
connector
X1-X6
TA3 jacks
Rtn B
3.5 mm jack
Main Outputs L (AES 1,2),
R (AES 3,4) Male XLR jacks
ANTENNA RP-SMA-MALE CONNECTOR Connects to included
external antenna for Bluetooth LE.
SD 1 AND 2 CARD SLOTS Insert SD card media for recording.
Insert label side down.
L,R,RTN A (AES 5-8) AND C 10-PIN JACKS Each connection
includes a pair of outputs and a stereo unbalanced return input.
Analog Output levels are selected between Line, -10, and Mic levels in
Main menu > OUTPUTS section. 10-pin A outputs can be set to send
AES3 digital signals (AES 5-8). Output may be sourced from L,R or any
of the 10 mix buses in Main menu > OUTPUTS.
USB C PORT
1. File transfer.
2. 2-in/2-out USB audio streaming.
USB A PORT
1. USB keyboard.
2. USB to SD-Remote Android app.
3. USB to the CL-16, CL-12, and approved 3rd party fader controllers.
4. Supports USB hubs.
5. Jam A20-Mini Timecode.
10-18V DC1 TA4 JACK Accepts DC voltages from 10–18 V for
powering. [pin-1- GND, pin-2- Smart Battery DATA, pin-3- Smart
Battery CLOCK, pin-4- +10-18 VDC]
LTC/WORDCLOCK/5-PIN LEMO JACK Timecode I/O, Wordclock.
[pin-1- GND, pin-2- LTC or WORDCLOCK IN, pin-5- LTC or WORDCLOCK
OUT (Pins 2 and 5 are software selectable)].
¼” HEADPHONE JACK 1/4-inch TRS headphone output. This
output is always fed by the headphone source levels. Warning! This
output can drive headphones to potentially dangerous levels. [Sleeve
= ground, tip = left, ring = right]
COM RTN 2 3.5 MM JACK Balanced, 1-channel 3.5 mm female
connector for Return 2 audio input. [Sleeve = ground, tip = hot, ring
=cold ]
X7/X8 3.5 MM JACK Unbalanced stereo 3.5 mm female connector.
Routing determined in the Outputs menu. [Sleeve = ground, tip = X7,
ring = X8]
X1-X6 TA3 JACKS Line, -10, or Mic level selected in Main menu
OUTPUTS section. Routing determined in the Outputs menu. [pin-1
= Ground, pin-2 = hot (+), pin-3 = cold (-). Float pin-3 to unbalance]
RTN B 3.5 MM JACK Unbalanced stereo 3.5 mm female connector
for Return B audio input. [Sleeve = ground, tip = left, ring = right]
MAIN OUTPUTS L (AES 1,2), R (AES 3,4) XLR JACKS Analog
outputs on standard 3-pin XLR-3M connectors. Analog Output levels
are selected between Line, -10, and Mic levels in Main menu >
OUTPUTS. Can be set to send AES3 digital signals (1,2 and 3,4 on L
and R respectively) in Main menu > OUTPUTS. Routing determined in
the Outputs menu. [pin-1 = Ground; pin-2 = hot (+); pin-3 = cold (-).
Unbalance by oating pin-3]
