Scorpio User Guide
21

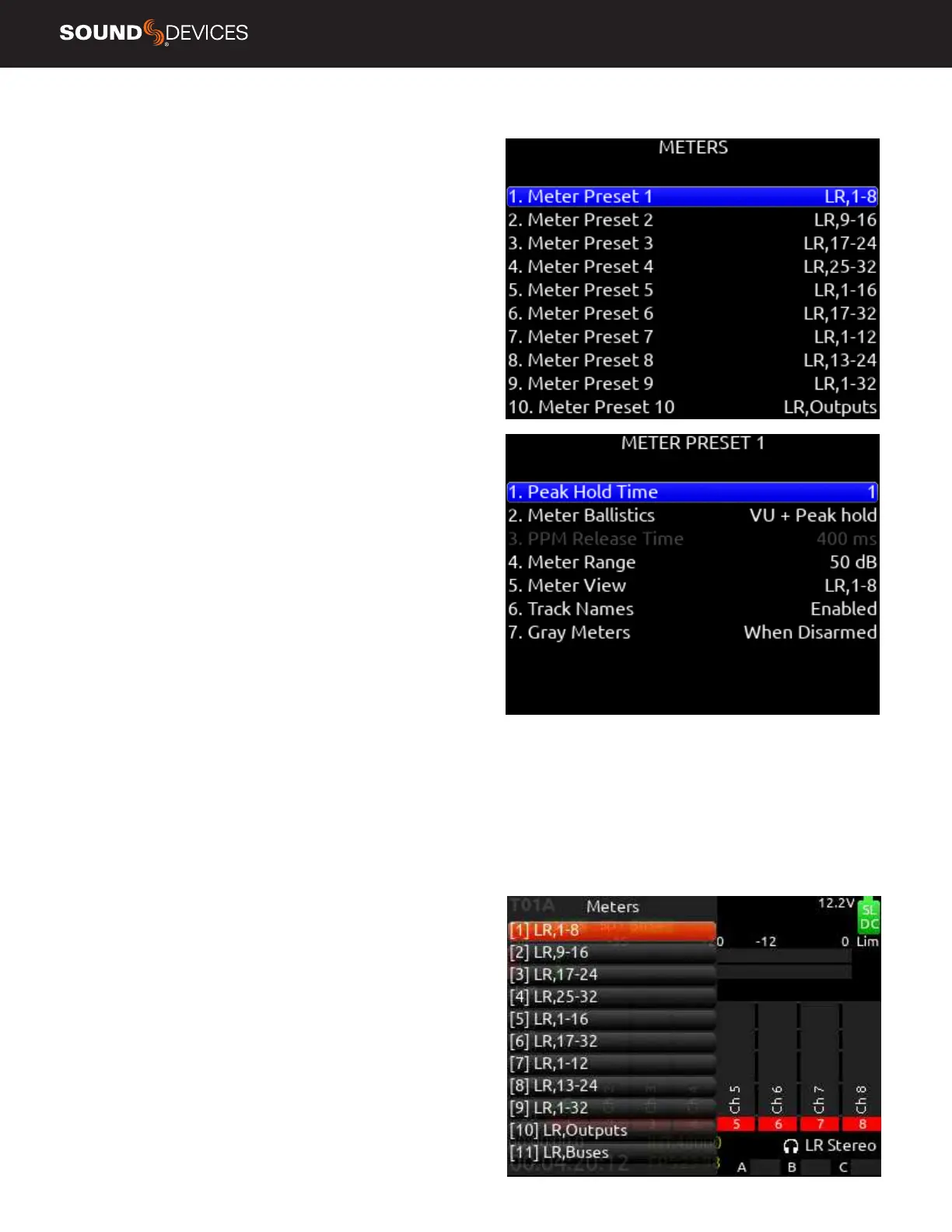

Meters
Selected Preset
METER PRESETS 1-12
SL-2 RECEIVER OVERVIEW Selects the Peak Hold Time and Meter
range for the SL-2 Receiver Overview audio level meters. Menu not
available unless an SL-2 is connected.
A. PEAK HOLD TIME Selects the peak hold time for the meter
preset. [Off, 1*-5s., Innity]
B. METER BALLISTICS Selects the ballistics for the meter preset.
VU: The meter bar ballistics emulate the 300 ms attack and 300 ms
release times of a VU meter. VU meter ballistics correspond closely to
how the human ear perceives loudness. This provides a good visual
indication of how loud a signal will be.
VU + Peak Hold: Same as the VU setting but with the addition of a
peak hold segment. See Peak Hold Time above.
PPM: The meter bar ballistics have instantaneous attack time and
slow release time. Ideal for monitoring actual signal peaks. The
release time can be set using the PPM Release Time setting.
PPM + Peak Hold: Same as the PPM setting but with the addition of a
peak hold segment. See Peak Hold Time above.
C. PPM RELEASE TIME Selects the Release Time for the PPM
meter ballistics. [400 ms* to 1600 ms in 200 ms steps]
D. METER RANGE Selects the range of the meters from bottom to
top of scale. [50 dB*, 40 dB, 20 dB]
E. METER VIEW Selects the meters to be viewed in the current pre-
set. [LR,1-8*, LR,9-16, LR,17-24, LR,25-32, LR,1-16, LR,17-32,
LR,1-12, LR,13-24, LR,1-32, 1-8 (Horizontal), 9-16 (Horizontal),
17-24 (Horizontal), 25-32 (Horizontal), LR,1-8 (Horizontal), LR,9-16
(Horizontal), LR,17-24 (Horizontal), LR,25-32 (Horizontal), LR,Outputs,
LR,Buses, LR,Returns, LR,Buses (Horizontal), LR,Outputs (Horizontal,
LR,1-8,B1-2,X1-2, LR Out,B1-4,X1-4, LR Out,B1-4,X1-4(Horizontal),
LR,1-3 (Horizontal)]
F. TRACK NAMES Selects whether track name, output name, and
bus name are displayed in the meter preset. [Enabled*, Disabled]
G. GRAY METERS Selects gray meter when record disarmed. [When
disarmed*,Off]
SL-2 RECEIVER OVERVIEW Selects the Peak Hold Time and Meter
range for the SL-2 Receiver Overview audio level meters. Ballistics
and PPM release time are taken from the last selected Meter Preset.
Menu not available unless an SL-2 is connected.
Meter View Menu Shortcuts
WHEN IN LR, OUTPUTS AND LR, BUSES METER VIEWS Turn
the Select knob to scroll to an output or bus. Pressing the Select knob
acts as a shortcut to that outputs or bus routing screen.
