Scorpio User Guide
17
G. GAIN Selects amount of attenuation applied to the output. Toggle
the ** to select [0 dB to -50 dB and -inf].
H. LEVEL Selects output level type for A1 and A2. [Line, -10, Mic,
AES] Selecting AES changes A1 and A2 from analog to AES Outputs
5-8 and accesses the AES Output Routing menu. See AES Output for
more information.
I. MUTE Indicates mute status of bus (Blue icon = muted) Toggle
Mute On/Off with the “Fav” toggle
3. 10-PIN C LEVEL
Selects the output level type [Line*, -10, Mic].

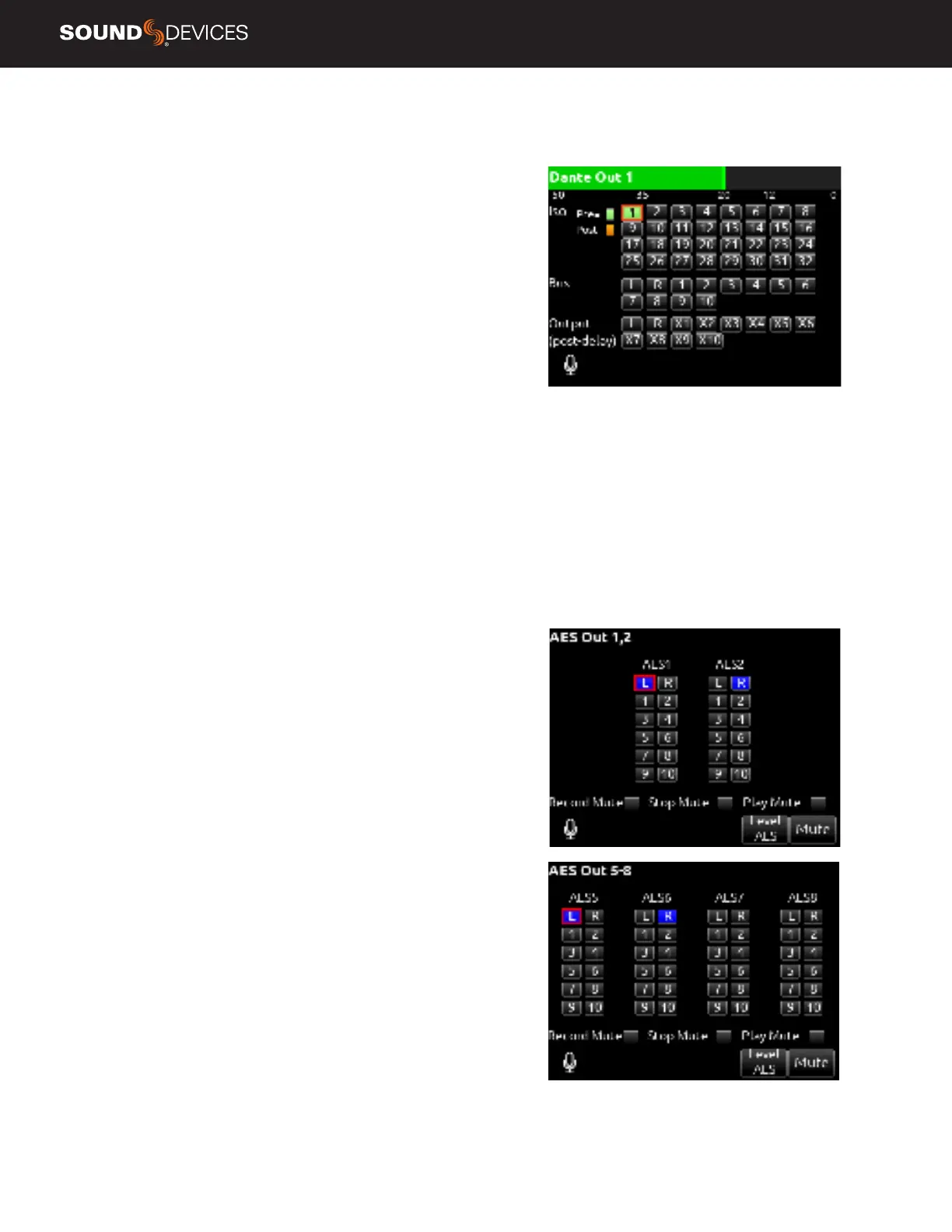

4. DANTE
Selects routing for Dante outputs.
A. ISO Any source selected will be routed to the selected Dante out-
put. (Green ll in text box = Pre-fade, Orange ll in text box = Post-fade
[1-32])
B. BUS [L,R, 1-10]
C. OUTPUT All sources are selected post-delay. [L,R, X1-X10]
5. USB
Selects routing for USB outputs.
A. ISO Any source selected will be routed to the selected USB output.
(Green ll in text box = Pre-fade, Orange ll in text box = Post-fade
[1-32])
B. BUS [L,R, 1-10]
C. OUTPUT All sources are selected post-delay. [L,R, X1-X10]
AES OUTPUT Selecting AES as the Level for L, R, or 10-Pin A Outputs
accesses the AES Output Routing menus. L Output is used to output
AES 1 and 2. R Output is used to output AES 3 and 4. 10-PIn A is
used to output AES 5-8.
From the AES Output Routing menus, route any bus to any AES Output
using the Select knob.
Change Level back to Line, -10, or Mic to cancel AES Output and
return to the L, R, or 10-Pin A Output menus.
10-PIN A AND C
Mates with Hirose RM15TPD-10P(71) connector.
Outputs are Active Balanced, output level is selectable in the menus
between Line, -10, or Mic level.
For unbalanced connections, XLR connectors should be wired pin 1
ground, pin 3 oating, pin 2 positive.
Balanced AES3 Outputs on 10-Pin A connector, 110 ohm, 2
V p-p, AES3 and S/PDIF compatible with RCA adapter.
1 – L (+) output (AES 5 on 10-Pin A)
2 – L (–) output (AES 6 on 10-Pin A)
3 – R (+) output (AES 7 on 10-Pin A)
4 – R (–) output (AES 8 on 10-Pin A)
5 – R (+) return A
6 – n/c
7 – L (+) return A
8 – n/c
9 – ground
10 – ground
