Know your Machine
16
C1 QR code
C2 Auto charging port
C3 Indicator light
C4 Handle
C5 Left door
C6 Power switch and cord connector
Workstation

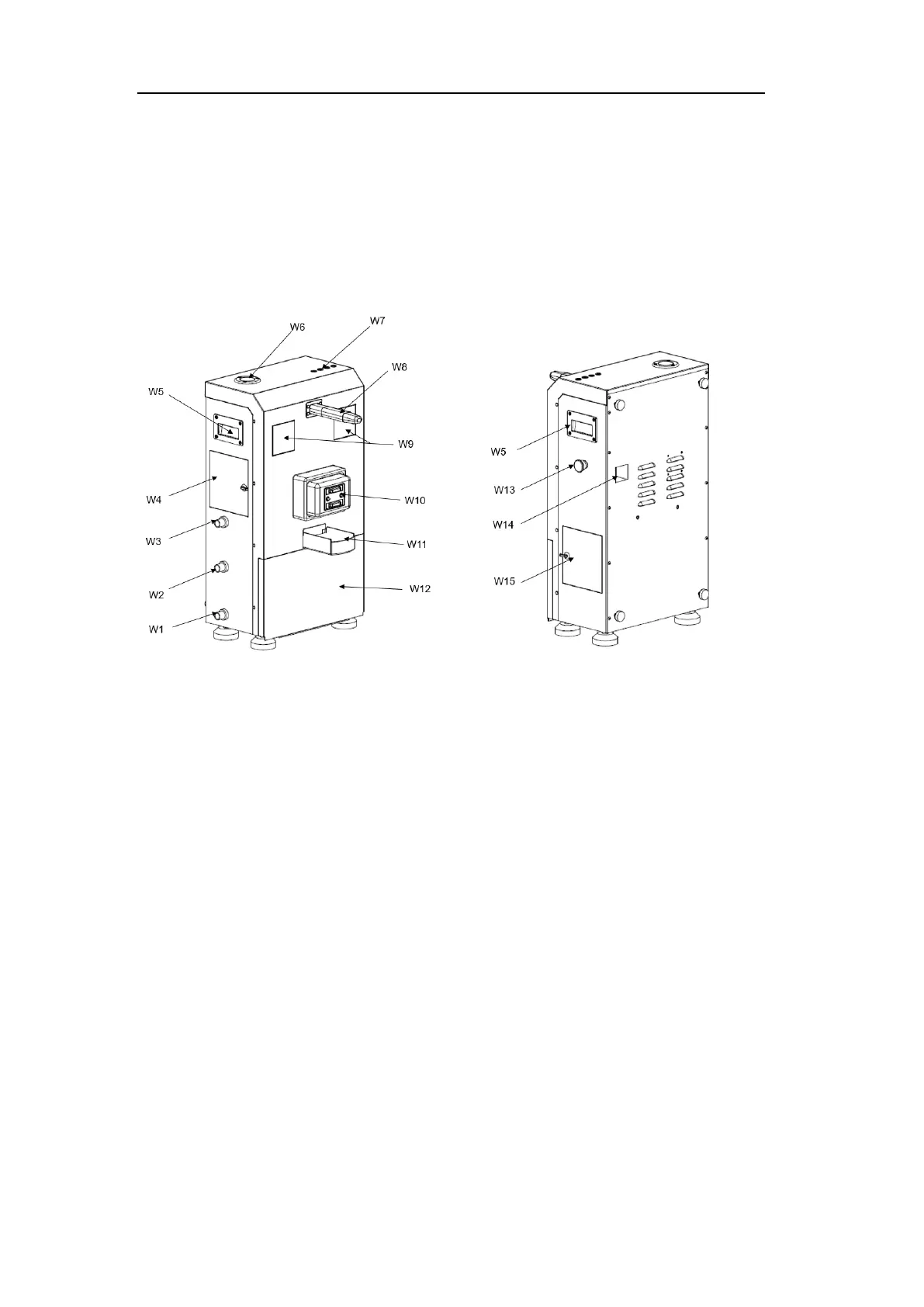

FIG.13
W1 Water outlet 1
W2 Water outlet 2
W3 Water inlet
W4 Right door
W5 Handle
W6 Detergent tank
W7 Indicator light
W8 Auto water/detergent filling port
W9 QR code
W10 Auto charging port
W11 Auto water draining port
W12 Front cover
W13 Emergency stop button
W14 Power switch and cord connector
W15 Left door
Special Instructions
⚫ Station water tank: Used for buffering waste water when draining.
⚫ Left door: Air switch is located behind the door.
⚫ Right door: Nozzle and manual valves are behind the door.
⚫ Front cover: Station recovery tank cover.
⚫ Emergency stop button: Used for immediate termination of all tasks. If pressed, all the
tasks are stopped and need to be released by turning it clockwise.
To Next Page
