Spark L50 - Cleaning the Sensors

Maintenance
32

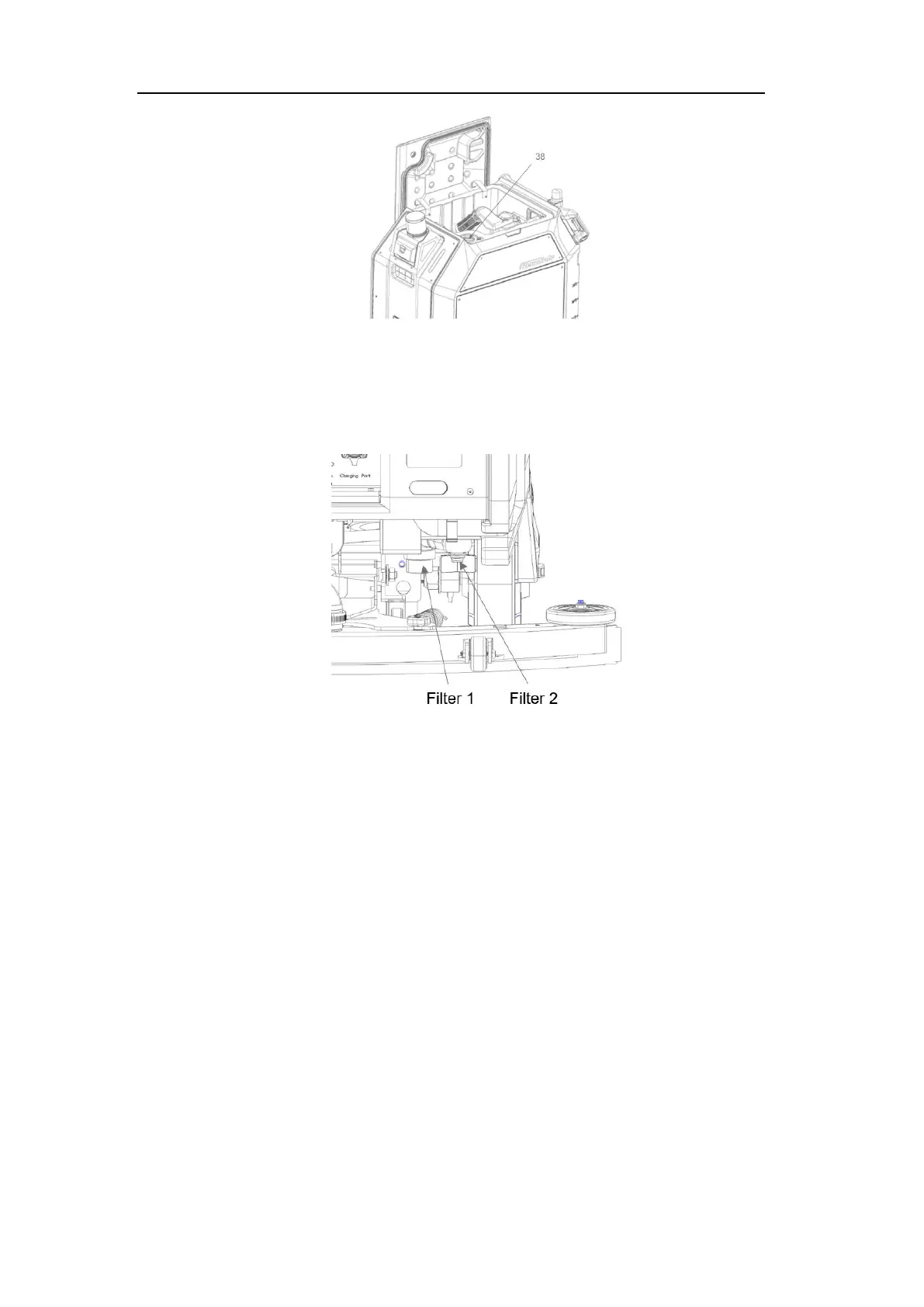

FIG.31
4. Remove the solution tank filters by rotating the filter bowl counterclockwise. The filters
are shown in FIG.32.
5. Clean the filters.
6. Reinstall the filters after cleaning.
FIG.32
Notice: Make sure the solution tank is drained out before removing filters.
Cleaning the Sensors
Use the dry microfibre cloth to clean the LiDAR and cameras regularly to avoid false
detection.
The solution tank is recommended to be cleaned monthly to remove scale build-up caused by
the solution.
Sensor items:
1) 3D LiDAR (5)
2) Front camera (6)
3) Front depth camera (7)
4) Rear depth camera (9)
5) Left camera (10)
6) Right camera (11)
7) Ultrasonic sensors (12)
