3. INTERCONNECTION WITH THE TRANSCEIVER

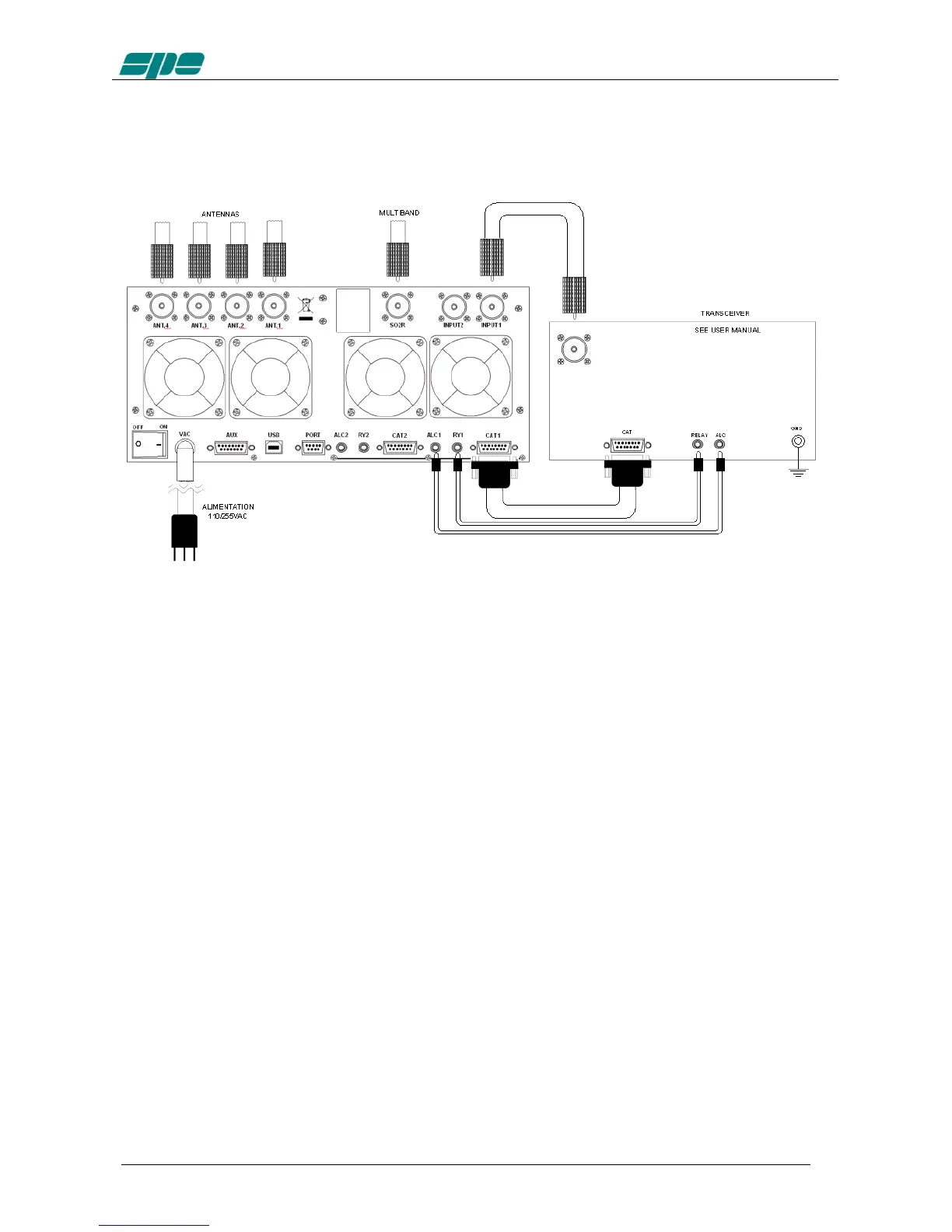

The diagram shows the connections with one transceiver only. To connect the second
transceiver, repeat the same connections using the port “IN 2“.
For the ALC and RELAY connections, use the shielded cable (supplied) with phono
RCA connectors.
For the CAT connection, this cable needs to be made by the owner, or purchased, for
the many different transceivers available to be connected.
This cable may also be made to include ALC, RELAY ON / OFF (read the “CAT
CONNECTIONS“ chapter of this manual).
For all other information about connecting a transceiver, please refer to the transceiver’s
manual.
Note: You should not use the separate RELAY and ALC phono connections if they have been
implemented through the DB15 “CAT” connectors.
