Page. 19 of 87

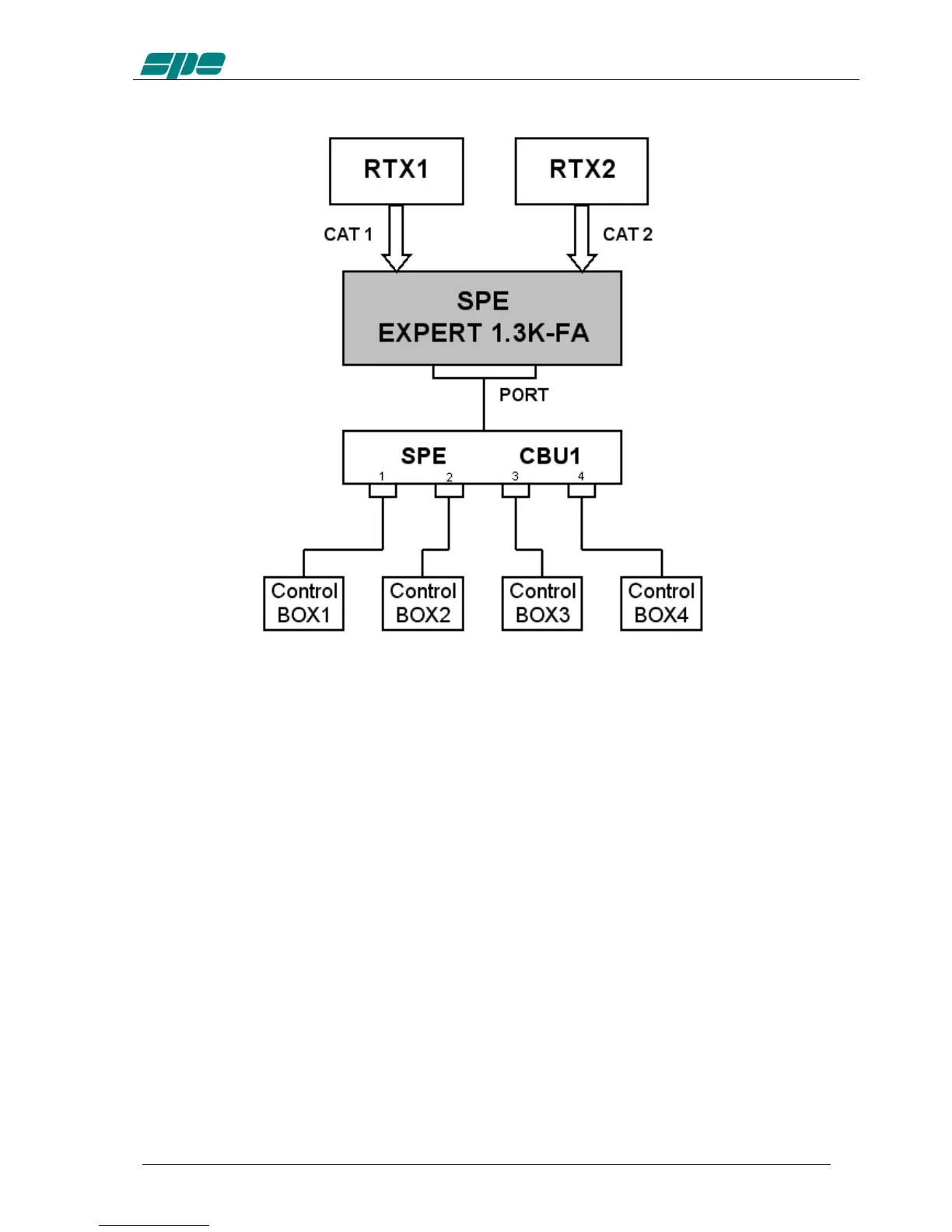

In this case you need to connect the unit control box outputs 1,2,3,4 respectively with
ANT 1,2,3,4 antenna sockets.
For the selection of antennas, refer to the “TUN ANT” item on the main menu.
The communication protocol used to and from the control box is "Kenwood", the
communication speed is “owner settable.”
4.5 Setting Up a Single Antenna for Reception
In some cases it may be necessary to transmit with an antenna and receive with a more
appropriate one.
A unique feature allows the Expert 1.3K-FA to set a receiving antenna and to control its
automatic switching after a transmission starts.
For the selection of this antenna refer to the menu item "RX ANT".
The antenna number selected will appear followed by an "r" symbol (e.g, 3r).
With the linear turned OFF the INPUT1 is directly connected to ANT1. The selection of
ANT1 as “RX ANT” is not permitted in order to avoid possible damage to the transceiver
or to the receiving antenna if a receiving antenna (e.g. Beverage) is connected.
