SPE EXPERT 1.3K-FA - TTL Yaesu Interface

User manual
Expert Amp 1.3K-FA
Page. 49 of 87

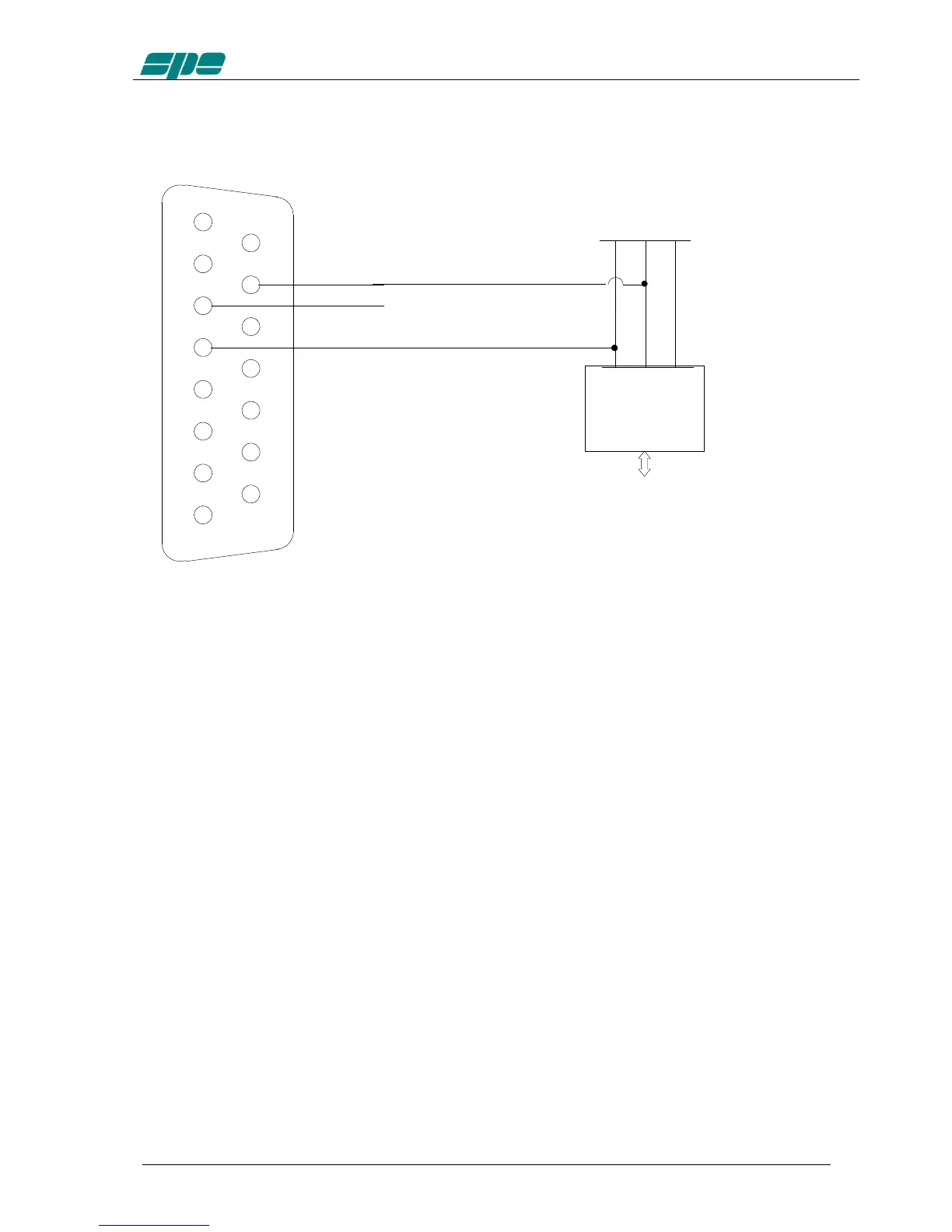

14.4 5V TTL Yaesu Interface
4
3
2
1
5
6
7
8
9
12
13
14
11
10
15
GND
TX
RX
TTL INTERFACE
PC
GND
TX
RX
TTL
YAESU
RADIO CONNECTOR
DB15 M
RX TTL
TX TTL
X
GND
Note: WARNING, SPE is not responsible for any failure resulting from misuse of hardware
interfaces.
