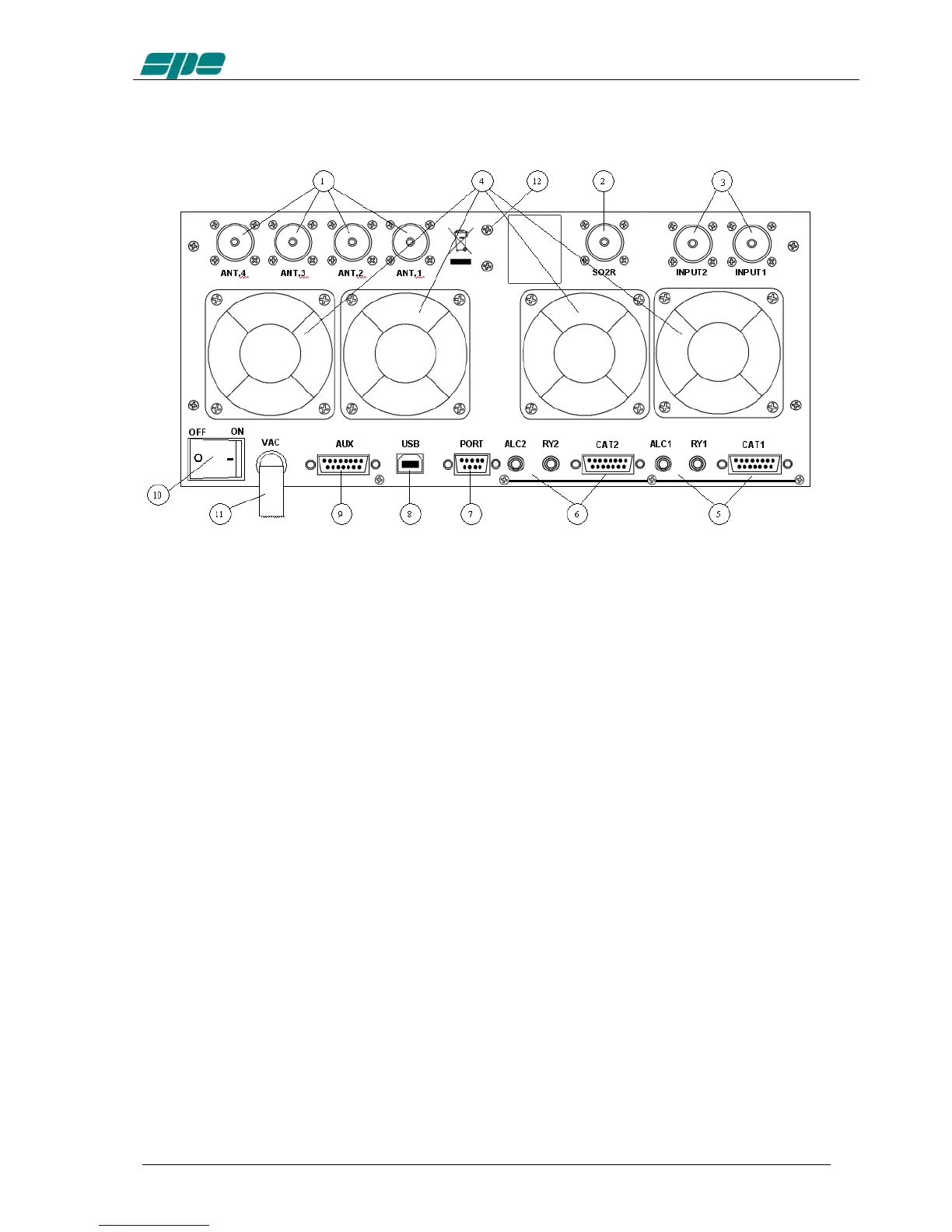

1.2 Rear Panel
1) ANT connectors for four available antennas.
2) SO2R connector for SO2R operations.
3) INPUT connectors to connect two exciters.
4) FANS
5) IN 1 ALC, RELAY, CAT connectors for exciter 1.
6) IN 2 ALC, RELAY, CAT connectors for exciter 2.
7) “PORT ” connector.
8) “USB” connector.
9) “AUX” connector.
10) ON main switch.
11) AC mains power cable.
12) GND ground connection.
