For connections to the Radio connectors, please refer to the transceiver operating
manual.
12.2 Icom
CAT CI–V Interface
4
3
2
1
5
6
7
8
9
12
13
14
11
10
15
GND
DB15 M
RX TTL
RADIO CONNECTOR
.

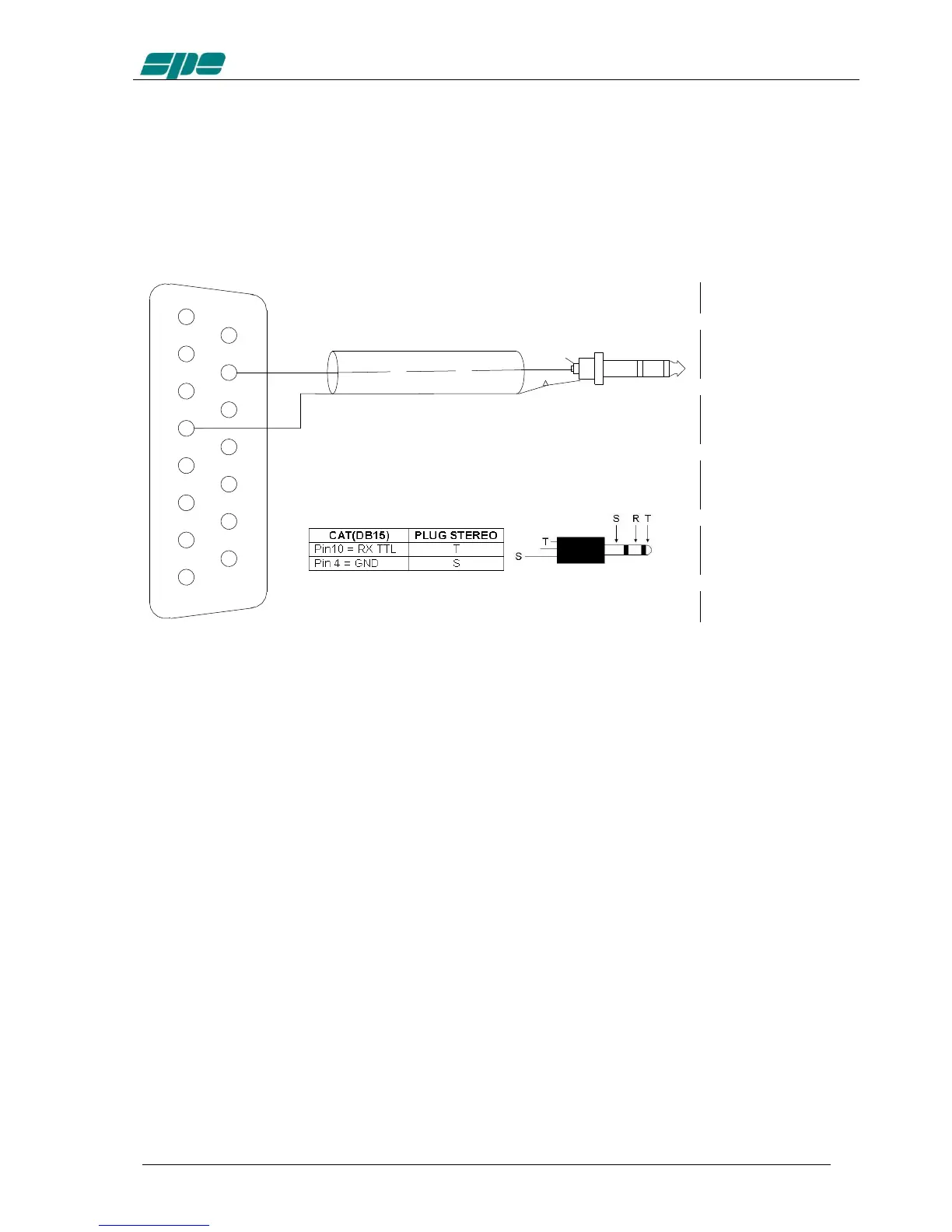

This interface is standard for all the Icom models equipped with CAT. The cable always
terminates into a 3.5 mm. mono plug.
It is possible to use a stereo plug according to the figure above.
