CHAINSTAY - GUIDE TUBE ASSEMBLY: ALLOY FRAME
# PART NAME PART NUMBER QTY SPEC TOOL
TORQUE
Nm in-lbf
A
Chainstay Alloy (Satin Black) S211500002
1 N/A N/A N/A
B
Sidearm Cable Guide S226500007
1 Plastic Sidearm Cover N/A N/A N/A

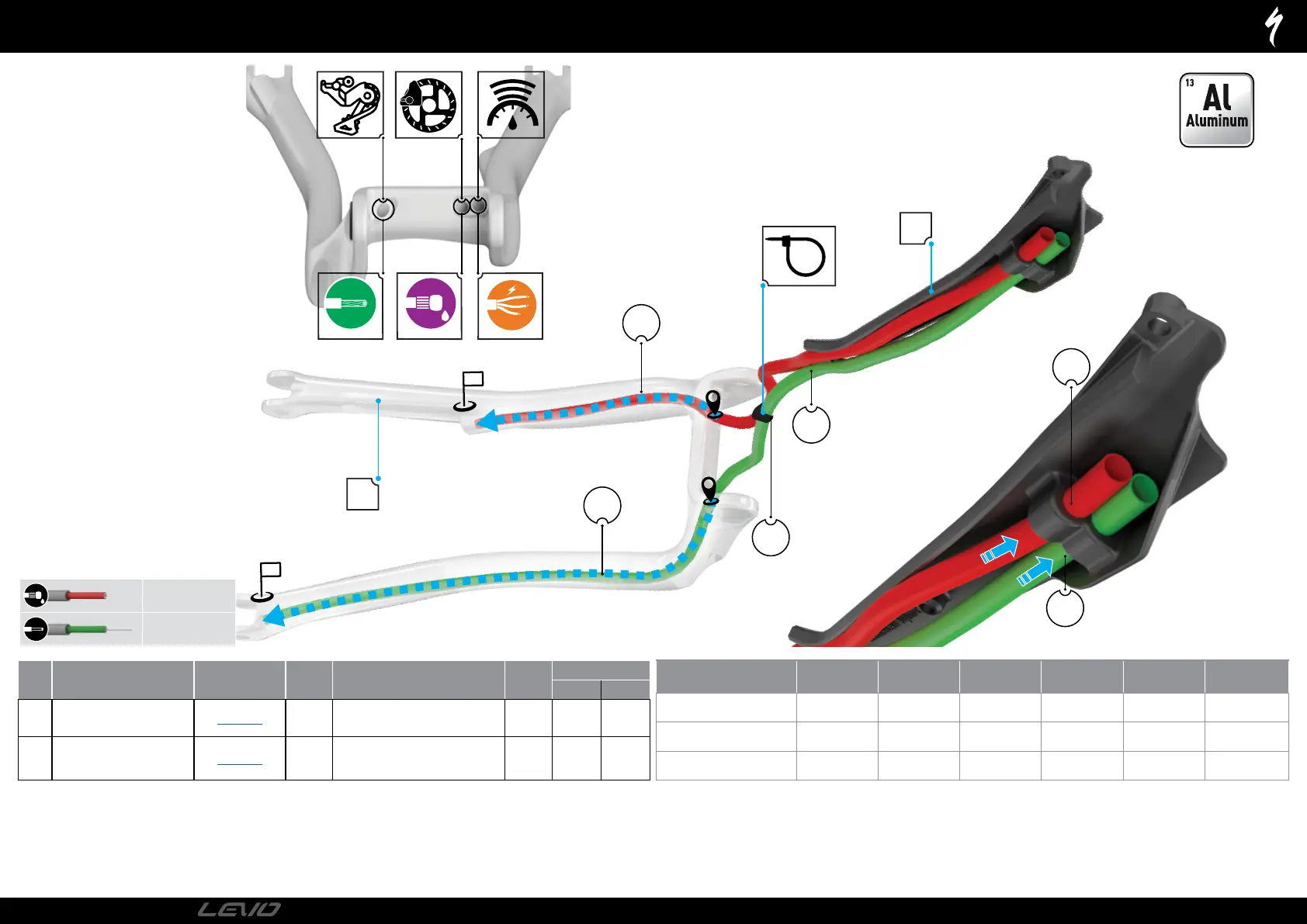

ALLOY FRAME CHAINSTAY GUIDE TUBE ASSEMBLY PROCESS:
Before assembling the rear triangle, insert the guide tubes for the rear brake and the derailleur.
 1: Insert the derailleur guide tube through the ICR port located in the drive side of the chainstay and route it to the rear port on the chainstay.
 2: Insert the brake guide tube through the inner ICR port located in the non-drive side of the chainstay and route it to the mid port on the
chainstay.
 3: Guide the derailleur and brake guide tubes up the seat tube and up into the sidearm, exiting out the port on the sidearm.
 4: Feed the rear brake guide tube through the top hole of the cable guide holder in the sidearm cover
 5: Feed the derailleur guide tube through the lower hole of the cable guide holder in the sidearm cover
 6: Secure the two guide tubes together using a cabletie.
ALLOY FRAME GUIDE TUBE
LENGTH
S1 S2 S3 S4 S5 S6
REAR DERAILLEUER TUBE 780 mm 780 mm 780 mm 780 mm 780 mm 780 mm
REAR BRAKE TUBE 660 mm 660 mm 660 mm 660 mm 660 mm 660 mm
DROPPER GUIDE TUBE 385 mm 395 mm 410 mm 430 mm 465 mm 460 mm
REAR BRAKE
DERAILLEUR
